- Basic Specifications - Bundled Services
- 3 years Basic Hardware Service with Advanced Exchange after remote diagnosis
- Basic Specifications - Carbon Footprint
- 103 kg carbon emissions
- Basic Specifications - Dimensions (WxDxH)
- 20.5 cm x 9 cm x 3.53 cm
- Basic Specifications - Docking Interface
- Thunderbolt 5
- Basic Specifications - EAN
- 5715328163249
- Basic Specifications - Manufacturer's Part Number
- DELL-SD25TB5
- Basic Specifications - Model
- Dell Pro Thunderbolt 5 Smart Dock SD25TB5
- Basic Specifications - Networking
- Gigabit Ethernet, 2.5 Gigabit Ethernet
- Basic Specifications - Power
- Power adapter AC 100-240 V (50 - 60 Hz) 330 Watt Power Provided (19.5 V)
- Basic Specifications - Pricing Type
- BTO
- Basic Specifications - Product Description
- Dell Pro Thunderbolt 5 Smart Dock SD25TB5 - docking station - Thunderbolt 5 - HDMI, 2 x DP, USB-C, 2 x Thunderbolt 5 - 1GbE, 2.5GbE
- Basic Specifications - Product Type
- Docking station
- Basic Specifications - Video Interfaces
- HDMI, 2 x DP, USB-C, 2 x Thunderbolt 5
- Basic Specifications - Weight
- 632 g
- Dimensions & Weight (Shipping) - Carbon Footprint
- 103 kg carbon emissions
- Dimensions & Weight (Shipping) - EOL (kg CO2e)
- 1.854
- Dimensions & Weight (Shipping) - Logistics (kg CO2e)
- 1.957
- Dimensions & Weight (Shipping) - Manufacturing (kg CO2e)
- 60.461
- Dimensions & Weight (Shipping) - PAIA Version
- GaBi version 1, 2025
- Dimensions & Weight (Shipping) - Use (kg CO2e)
- 38.728
- Expansion / Connectivity - Interfaces

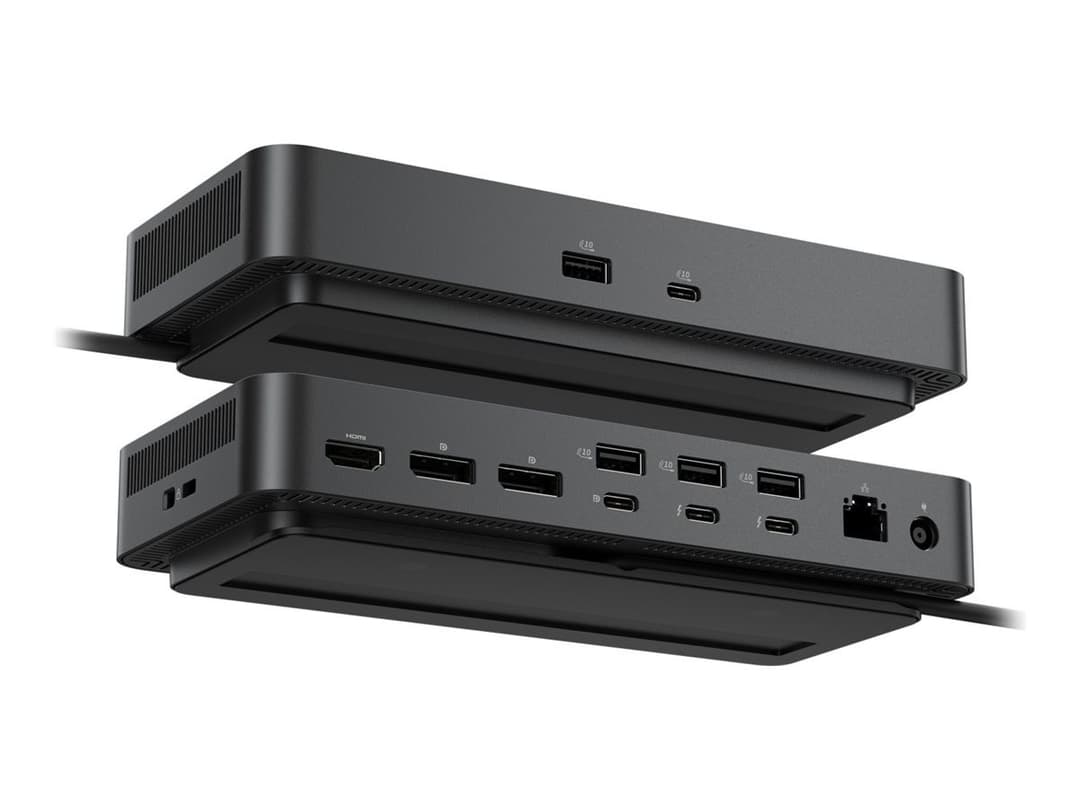

- 2 x display / video - DisplayPort - 20 pin DisplayPort (2.1) ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C 3.2 Gen 2 / DisplayPort 2.1 - 24 pin USB-C ¦ 2 x Thunderbolt 5 ¦ 4 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x network - 2.5G Gigabit Ethernet - RJ-45 ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C
- General - Depth
- 9 cm
- General - Height
- 3.53 cm
- General - Product Type
- Docking station
- General - Weight
- 632 g
- General - Width
- 20.5 cm
- Manufacturer Warranty - Bundled Services
- 3 years Basic Hardware Service with Advanced Exchange after remote diagnosis
- Miscellaneous - Cables Included
- 1 x Thunderbolt 5 cable - integrated - 0.83 m
- Miscellaneous - Compliant Standards
- DisplayPort 2.1, Thunderbolt 5
- Miscellaneous - Features
- Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, 3 LED indicators, MAC address pass-through, Dell Power Button Sync, Kernel Direct Memory Access (DMA) protection, Remote IT management, 300W power delivery to Dell systems, 240W power delivery to non-Dell systems
- Miscellaneous - Pricing Type
- BTO
- Miscellaneous - Security Slot Type
- Noble Wedge security slot / Kensington security slot
- Networking - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
- Power - Power Device
- Power adapter
- Power - Power Provided
- 330 Watt
- Power - Voltage Provided
- 19.5 V
- Power - Voltage Required
- AC 100-240 V (50 - 60 Hz)
- Sustainability - Carbon Footprint
- 103 kg carbon emissions
- Sustainability - EOL (kg CO2e)
- 1.854
- Sustainability - Logistics (kg CO2e)
- 1.957
- Sustainability - Manufacturing (kg CO2e)
- 60.461
- Sustainability - PAIA Version
- GaBi version 1, 2025
- Sustainability - Total Carbon w/o Use Phase (kg CO2e)
- 64.272
- Sustainability - Use (kg CO2e)
- 38.728
- System Requirements - OS Required
- Red Hat Enterprise Linux, Google Chrome OS, Windows 10, Windows 11, Ubuntu 24.04
- Video - Max Resolution Details
- 4K - 120 Hz (Quad Display) ¦ 5K - 120 Hz (Dual Display) ¦ 6K - 60 Hz (Dual Display) ¦ 8K - 60 Hz (Single Display) ¦ 2560 x 1440 - 60 Hz (Quad Display) ¦ 3440 x 1440 - 60 Hz (Triple Display) ¦ 4K - 240 Hz (Single Display)
