- Basic Specifications - Capacity
- Concurrent VPN tunnels: 200 ¦ NAT sessions: 300000 ¦ Concurrent SSL VPN tunnels: 200 ¦ 802.1q virtual interfaces (VLANs): 50
- Basic Specifications - Compliant Standards
- IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x
- Basic Specifications - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
- Basic Specifications - Device Type
- Router - 4-port switch (integrated)
- Basic Specifications - Digital Signaling Protocol
- SIP, H.323
- Basic Specifications - Dimensions (WxDxH)
- 27.3 cm x 17.1 cm x 4.5 cm
- Basic Specifications - EAN
- 4710484742001
- Basic Specifications - Enclosure Type
- Desktop, rack-mountable
- Basic Specifications - Features
- IPv6 support, IPv4 support, PPP, multiple PVC support, load balancing, broadcast threshold, port-based VLAN, tagged VLAN, DHCP server, IP-MAC binding, 802.1x authentication, port mirroring, DNS server, PIN code authentication, High Availability, DNSSEC support, IGMP proxy, LAN-to-LAN bridging, L2TP over IPSec, OTP, IPSec NAT-T, NAT support, DMZ support, port triggering, ALG support, VPN passthrough, application filtering, DNS filtering, URL filtering, Web Filtering, anti-spoofing protection, DoS protection, bandwidth control, Bandwidth Limiter, QoS, ToS, DSCP based QoS, Data prioritization (Qos) for VoIP applications, firmware upgradable, ACL support, Brute Force Protection, E-mail alert, SMS alert, Syslog support
- Basic Specifications - Localisation
- United Kingdom, Ireland
- Basic Specifications - Manufacturer's Part Number
- V2962-K
- Basic Specifications - Model
- Draytek Vigor 2962
- Basic Specifications - Network / Transport Protocol
- PPPoE, DHCP, DHCPv6, ARP, DNS, DDNS, Bonjour, PPTP, L2TP, IPSec, RTSP, FTP
- Basic Specifications - Performance
- NAT throughput with hardware acceleration: 2.2 Gbps ¦ VPN throughput (256-bit AES IPSec): 900 Mbps ¦ VPN throughput (SSL): 650 Mbps
- Basic Specifications - Power
- AC 120/230 V
- Basic Specifications - Product Description

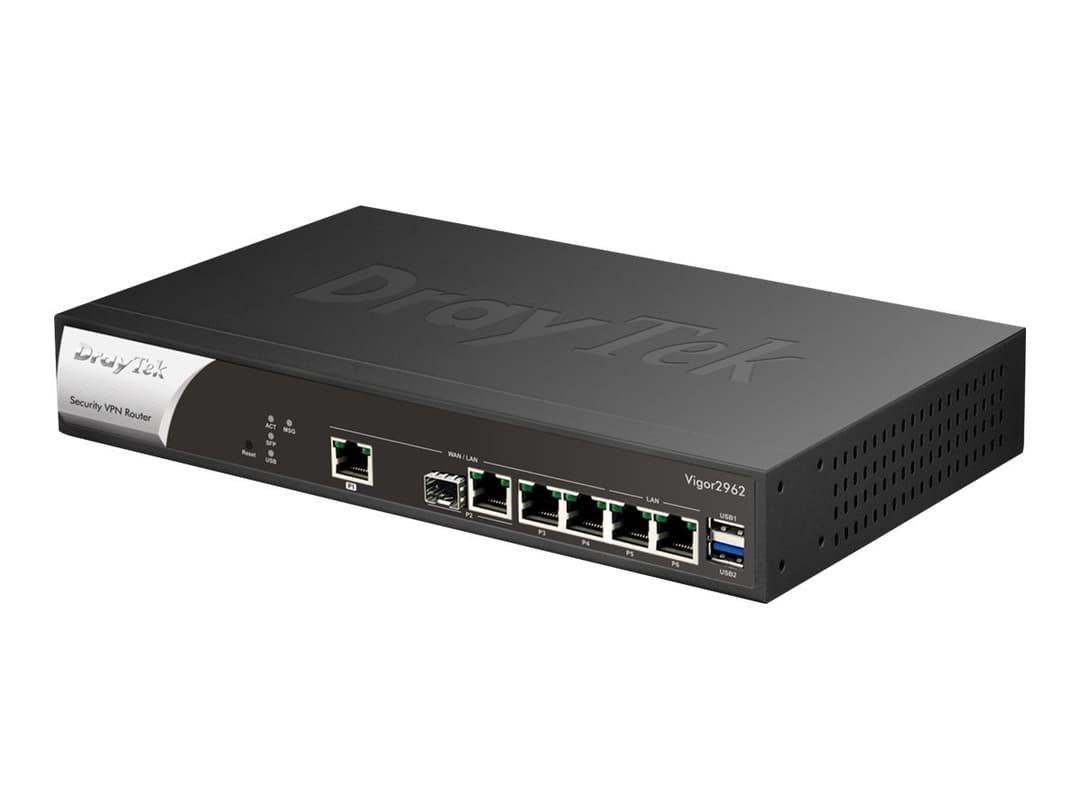

- Draytek Vigor 2962 - router - desktop, rack-mountable
- Basic Specifications - Remote Management Protocol
- HTTP, HTTPS, Telnet, SSH-2, TR-069, TFTP, SNMP 1, SNMP 2c, SNMP 3
- Basic Specifications - Routing Protocol
- GRE, BGP, OSPF, RIP-1, RIP-2, RIPng
- Basic Specifications - VoIP Protocols
- SIP, H.323
- Basic Specifications - WAN Ports Qty
- 2
- Basic Specifications - Weight
- 1.3 kg
- Communications - Digital Signaling Protocol
- SIP, H.323
- Dimensions & Weight - Depth
- 17.1 cm
- Dimensions & Weight - Height
- 4.5 cm
- Dimensions & Weight - Weight
- 1.3 kg
- Dimensions & Weight - Width
- 27.3 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 45 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces

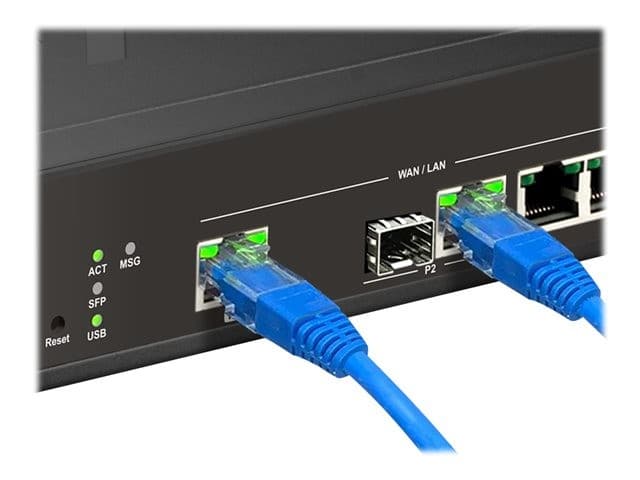

- WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 1 x 2.5GBase-T ¦ WAN / LAN: 1 x 1000Base-X - RJ-45/SFP ¦ USB 2.0: 1 x ¦ USB 3.0: 1 x
- General - Authentication Method
- RADIUS, XAUTH authentication, LDAP, TACACS+, X.509 certificates
- General - Capacity
- Concurrent VPN tunnels: 200 ¦ NAT sessions: 300000 ¦ Concurrent SSL VPN tunnels: 200 ¦ 802.1q virtual interfaces (VLANs): 50
- General - Compliant Standards
- IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x
- General - Connectivity Technology
- Wired
- General - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
- General - Device Type
- Router - 4-port switch (integrated)
- General - Enclosure Type
- Desktop, rack-mountable
- General - Encryption Algorithm
- SSL, IKEv2, SHA-1, SHA-256, MD5, MPPE, DES, Triple DES, AES
- General - Features
- IPv6 support, IPv4 support, PPP, multiple PVC support, load balancing, broadcast threshold, port-based VLAN, tagged VLAN, DHCP server, IP-MAC binding, 802.1x authentication, port mirroring, DNS server, PIN code authentication, High Availability, DNSSEC support, IGMP proxy, LAN-to-LAN bridging, L2TP over IPSec, OTP, IPSec NAT-T, NAT support, DMZ support, port triggering, ALG support, VPN passthrough, application filtering, DNS filtering, URL filtering, Web Filtering, anti-spoofing protection, DoS protection, bandwidth control, Bandwidth Limiter, QoS, ToS, DSCP based QoS, Data prioritization (Qos) for VoIP applications, firmware upgradable, ACL support, Brute Force Protection, E-mail alert, SMS alert, Syslog support
- General - Network / Transport Protocol
- PPPoE, DHCP, DHCPv6, ARP, DNS, DDNS, Bonjour, PPTP, L2TP, IPSec, RTSP, FTP
- General - Performance
- NAT throughput with hardware acceleration: 2.2 Gbps ¦ VPN throughput (256-bit AES IPSec): 900 Mbps ¦ VPN throughput (SSL): 650 Mbps
- General - Remote Management Protocol
- HTTP, HTTPS, Telnet, SSH-2, TR-069, TFTP, SNMP 1, SNMP 2c, SNMP 3
- General - Routing Protocol
- GRE, BGP, OSPF, RIP-1, RIP-2, RIPng
- General - Status Indicators
- Active, SFP, USB
- IP Telephony - VoIP Protocols
- SIP, H.323
- Miscellaneous - Localisation
- United Kingdom, Ireland
- Miscellaneous - Rack Mounting Kit
- Included
- Power - Power Consumption Operational
- 15 Watt
- Power - Power Device
- Internal power supply
- Power - Voltage Required
- AC 120/230 V
