- Basic Specifications - Compliant Standards
- IEEE 802.1Q, ANSI T1.413, UPnP, ITU-T G.993.1, ITU-T G.993.2, ITU-T G.992.1 (G.dmt)
- Basic Specifications - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Basic Specifications - Device Type
- Router - DSL modem - 2-port switch (integrated)
- Basic Specifications - Digital Signaling Protocol
- VDSL2, Vplus 35b, ADSL2+, ADSL2
- Basic Specifications - Dimensions (WxDxH)
- 18.1 cm x 12.5 cm x 4 cm
- Basic Specifications - EAN
- 4710484743848
- Basic Specifications - Enclosure Type
- Desktop
- Basic Specifications - Features
- Reset button, PPPoE passthrough, IGMP proxy, DHCP IPv6 server, DHCPv4 server, DHCP server, DynDNS, NTP client, DNS proxy, static routing, content filtering, URL filtering, NAT support, DMZ support, MAC address filtering, DoS attack prevention, e-mail notification, SPI, Syslog support, firmware upgradable, bridge mode, VLAN support, DHCP support, IGMP snooping, ALG support, anti-spoofing protection, DNS caching, port forwarding, scheduler, multiple PVC support, Triple Play ready
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- V167-K
- Basic Specifications - Model
- Draytek Vigor 167
- Basic Specifications - Network / Transport Protocol
- PPPoE, PPPoA, IPv4, IPv6, DHCP, DHCPv6, L2TP, PPTP, DDNS, RTSP, FTP, IPSec, AAL5
- Basic Specifications - Performance
- NAT throughput: 300 Mbps ¦ Maximum throughput on VDSL: 300 Mbps ¦ Maximum link rate on ADSL: 20 Mbps
- Basic Specifications - Power
- DC 12 V 0.4 A
- Basic Specifications - Product Description

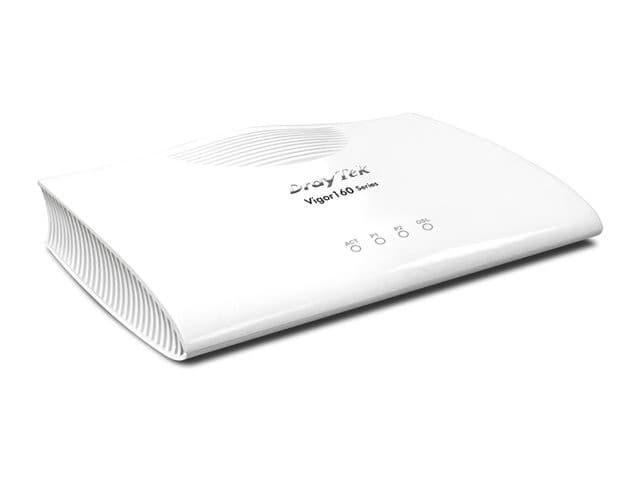

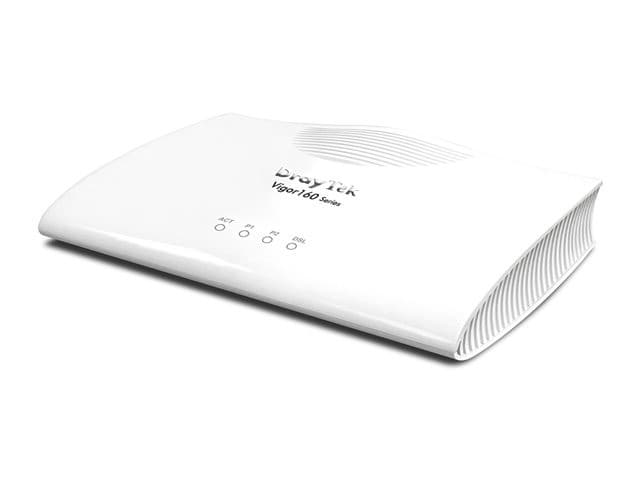

- Draytek Vigor 167 - router - DSL modem - desktop
- Basic Specifications - Remote Management Protocol
- TR-069, HTTP, HTTPS, Telnet, CLI, SSH, TFTP, SNMP 1, SNMP 2c
- Basic Specifications - Routing Protocol
- MPOA, IGMP, static IPv4 routing, static IPv6 routing, RIP-1, RIP-2
- Basic Specifications - VoIP Protocols
- SIP, H.323
- Basic Specifications - WAN Ports Qty
- 1
- Basic Specifications - Weight
- 270 g
- Communications - Digital Signaling Protocol
- VDSL2, Vplus 35b, ADSL2+, ADSL2
- Communications - Max Transfer Rate
- 300 Mbps
- Communications - Protocols & Specifications
- ITU G.993.2, ITU G.993.1, ITU G.997.1
- Communications - Type
- DSL modem
- Dimensions & Weight - Depth
- 12.5 cm
- Dimensions & Weight - Height
- 4 cm
- Dimensions & Weight - Weight
- 270 g
- Dimensions & Weight - Width
- 18.1 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 45 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C

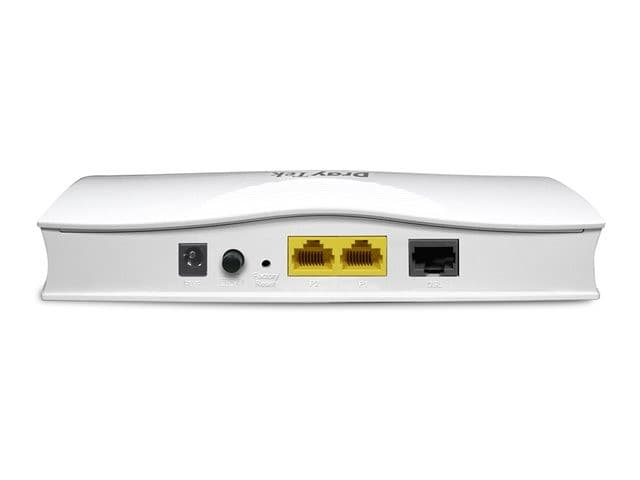

- Expansion / Connectivity - Interfaces
- LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ - RJ-11
- General - Built-in Devices
- Led panel
- General - Compliant Standards
- IEEE 802.1Q, ANSI T1.413, UPnP, ITU-T G.993.1, ITU-T G.993.2, ITU-T G.992.1 (G.dmt)
- General - Connectivity Technology
- Wired
- General - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- General - Device Type
- Router - 2-port switch (integrated)
- General - Enclosure Type
- Desktop
- General - Features
- Reset button, PPPoE passthrough, IGMP proxy, DHCP IPv6 server, DHCPv4 server, DHCP server, DynDNS, NTP client, DNS proxy, static routing, content filtering, URL filtering, NAT support, DMZ support, MAC address filtering, DoS attack prevention, e-mail notification, SPI, Syslog support, firmware upgradable, bridge mode, VLAN support, DHCP support, IGMP snooping, ALG support, anti-spoofing protection, DNS caching, port forwarding, scheduler, multiple PVC support, Triple Play ready
- General - Network / Transport Protocol
- PPPoE, PPPoA, IPv4, IPv6, DHCP, DHCPv6, L2TP, PPTP, DDNS, RTSP, FTP, IPSec, AAL5
- General - Performance
- NAT throughput: 300 Mbps ¦ Maximum throughput on VDSL: 300 Mbps ¦ Maximum link rate on ADSL: 20 Mbps
- General - Remote Management Protocol
- TR-069, HTTP, HTTPS, Telnet, CLI, SSH, TFTP, SNMP 1, SNMP 2c
- General - Routing Protocol
- MPOA, IGMP, static IPv4 routing, static IPv6 routing, RIP-1, RIP-2
- General - Status Indicators
- Active, LAN, ADSL
- IP Telephony - VoIP Protocols
- SIP, H.323
- Line Properties - Framing Format
- ANSI T1.413
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Cables Included

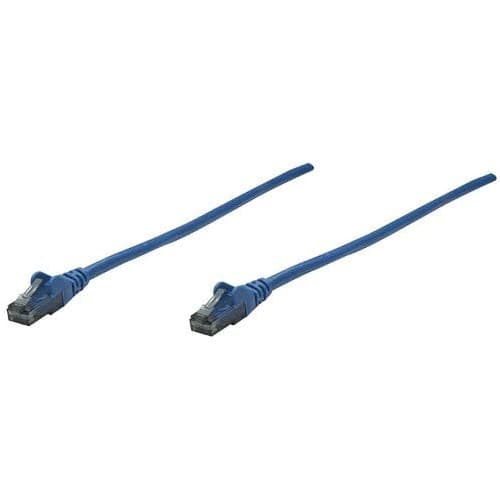

- 1 x RJ-11 phone cable ¦ 1 x network cable
- Power - Electric Current Required
- 0.4 A
- Power - Power Consumption Operational
- 4.4 Watt
- Power - Power Device
- External power adapter
- Power - Voltage Required
- DC 12 V
- Software / System Requirements - OS Provided
- No operating system
