- Basic Specifications - Buffer Size
- 1 GB
- Basic Specifications - Capacity
- 1 TB
- Basic Specifications - Data Transfer Rate
- 600 MBps
- Basic Specifications - Dimensions (WxDxH)
- 69.85 mm x 100 mm x 6.8 mm
- Basic Specifications - EAN
- 8806090545917
- Basic Specifications - Encryption Algorithm
- 256-bit AES
- Basic Specifications - Features
- 3-bit 3D V-NAND Technology, Samsung MKX Controller, TRIM support, Auto Garbage Collection Algorithm, Worldwide Name (WWN), Low Power DDR4 SDRAM Cache, TurboWrite Technology, sleep mode, S.M.A.R.T., 256-bit AES, IEEE 1667
- Basic Specifications - Form Factor
- 2.5"
- Basic Specifications - Hardware Encryption
- Yes
- Basic Specifications - Interface
- SATA 6Gb/s
- Basic Specifications - Manufacturer Warranty
- 5-year warranty
- Basic Specifications - Manufacturer's Part Number
- MZ-77E1T0B/EU
- Basic Specifications - Model
- Samsung 870 EVO MZ-77E1T0B
- Basic Specifications - NAND Flash Memory Type
- 3D multi-level cell (MLC)
- Basic Specifications - Product Description

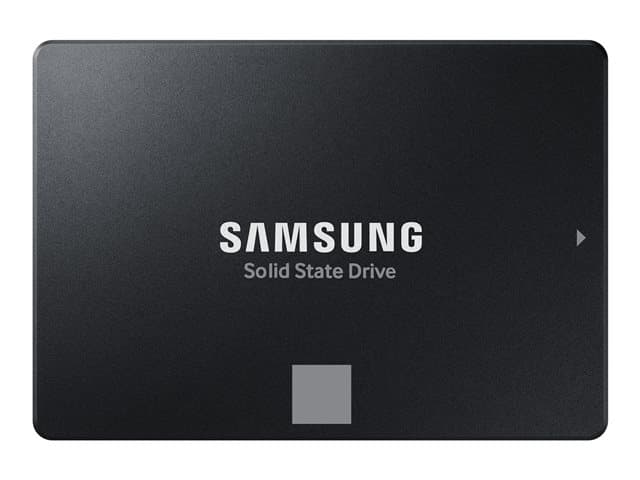

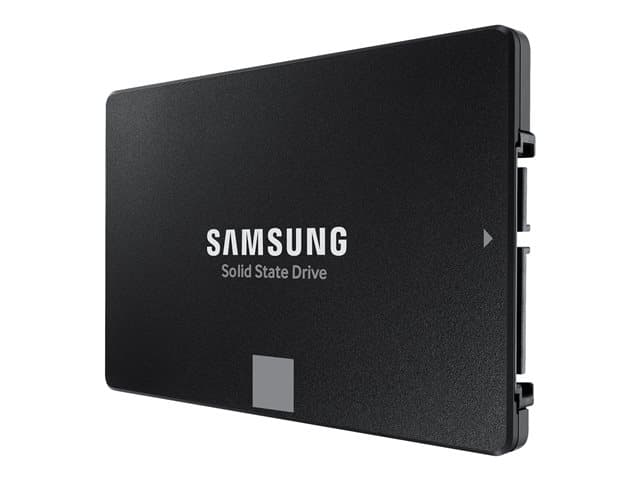

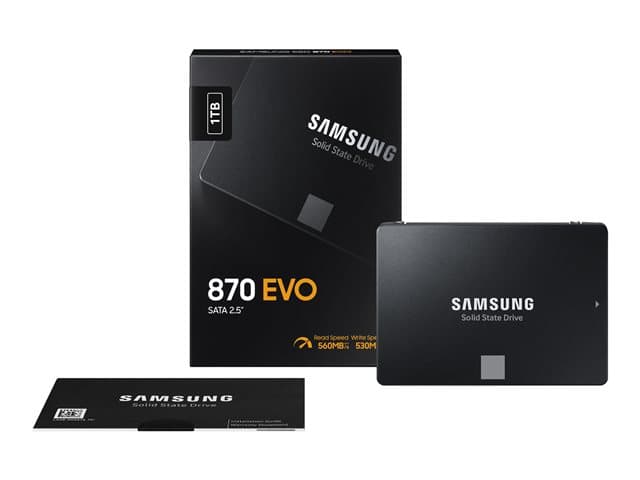

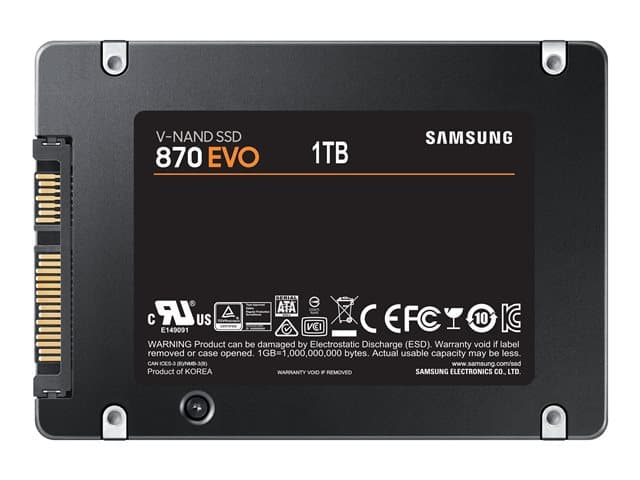

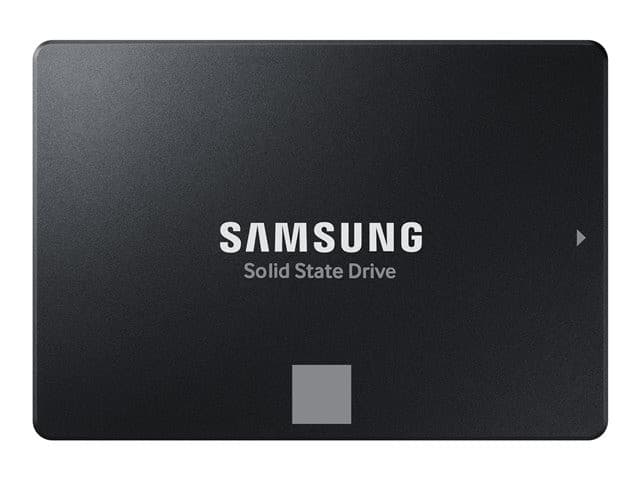

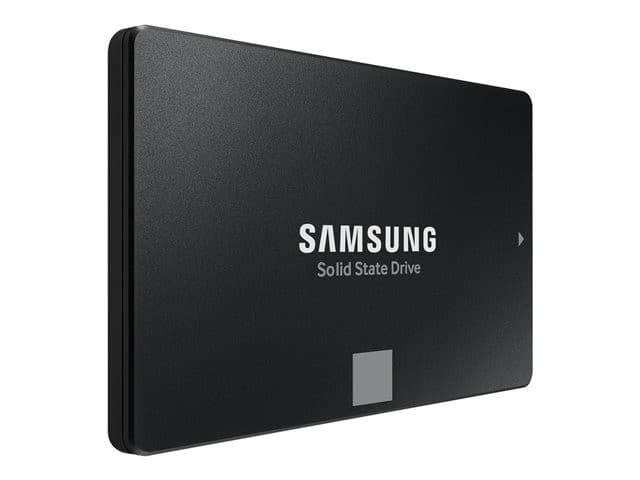

- Samsung 870 EVO MZ-77E1T0B - SSD - 1 TB - SATA 6Gb/s
- Basic Specifications - Type
- Solid state drive - internal
- Basic Specifications - Weight
- 45 g
- Environmental Parameters - Max Operating Temperature
- 70 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Shock Tolerance (operating)
- 1500 g @ 0.5 ms half-sine
- Expansion & Connectivity - Compatible Bay
- 2.5"
- Expansion & Connectivity - Interfaces
- 1 x SATA 6 Gb/s
- General - Buffer Size
- 1 GB
- General - Capacity
- 1 TB
- General - Depth
- 100 mm
- General - Device Type
- Solid state drive - internal
- General - Encryption Algorithm
- 256-bit AES
- General - Features
- 3-bit 3D V-NAND Technology, Samsung MKX Controller, TRIM support, Auto Garbage Collection Algorithm, Worldwide Name (WWN), Low Power DDR4 SDRAM Cache, TurboWrite Technology, sleep mode, S.M.A.R.T., 256-bit AES, IEEE 1667
- General - Form Factor
- 2.5"
- General - Hardware Encryption
- Yes
- General - Height
- 6.8 mm
- General - Interface
- SATA 6Gb/s
- General - NAND Flash Memory Type
- 3D multi-level cell (MLC)
- General - Weight
- 45 g
- General - Width
- 69.85 mm
- Manufacturer Warranty - Service & Support
- Limited warranty - 5 years / 600 TBW
- Miscellaneous - Compliant Standards
- WWN, IEEE 1667
- Performance - 4KB Random Read
- 13000 IOPS
- Performance - 4KB Random Write
- 36000 IOPS
- Performance - Drive Transfer Rate
- 600 MBps (external)
- Performance - Internal Data Rate
- 560 MBps (read) / 530 MBps (write)
- Performance - Maximum 4KB Random Read
- 98000 IOPS
- Performance - Maximum 4KB Random Write
- 88000 IOPS
- Performance - SSD Endurance
- 600 TB
- Power - Power Consumption
- 2.5 Watt (average) ¦ 4.4 Watt (maximum)
- Reliability - MTBF
- 1,500,000 hours
- Software & System Requirements - Software Included
- Samsung Magician Software
