- Basic Specifications - Colour
- Black
- Basic Specifications - Cord Length
- 2.43 m
- Basic Specifications - Device Type
- Automatic transfer switch - rack-mountable
- Basic Specifications - Dimensions (WxDxH)
- 43.2 cm x 23.6 cm x 8.8 cm
- Basic Specifications - EAN
- 0731304432456
- Basic Specifications - Included Accessories
- Mounting kit, rack mounting brackets, serial configuration cable
- Basic Specifications - Input Connectors
- 2 x power IEC 60309 32A
- Basic Specifications - Input Voltage
- AC 207-253 V
- Basic Specifications - Input Wiring
- 1-phase
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- AP4424A
- Basic Specifications - Networking
- Ethernet 10/100/1000, USB
- Basic Specifications - Output connectors
- 16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
- Basic Specifications - Output Voltage
- AC 230 V
- Basic Specifications - Power Capacity
- 7400 VA
- Basic Specifications - Product Description

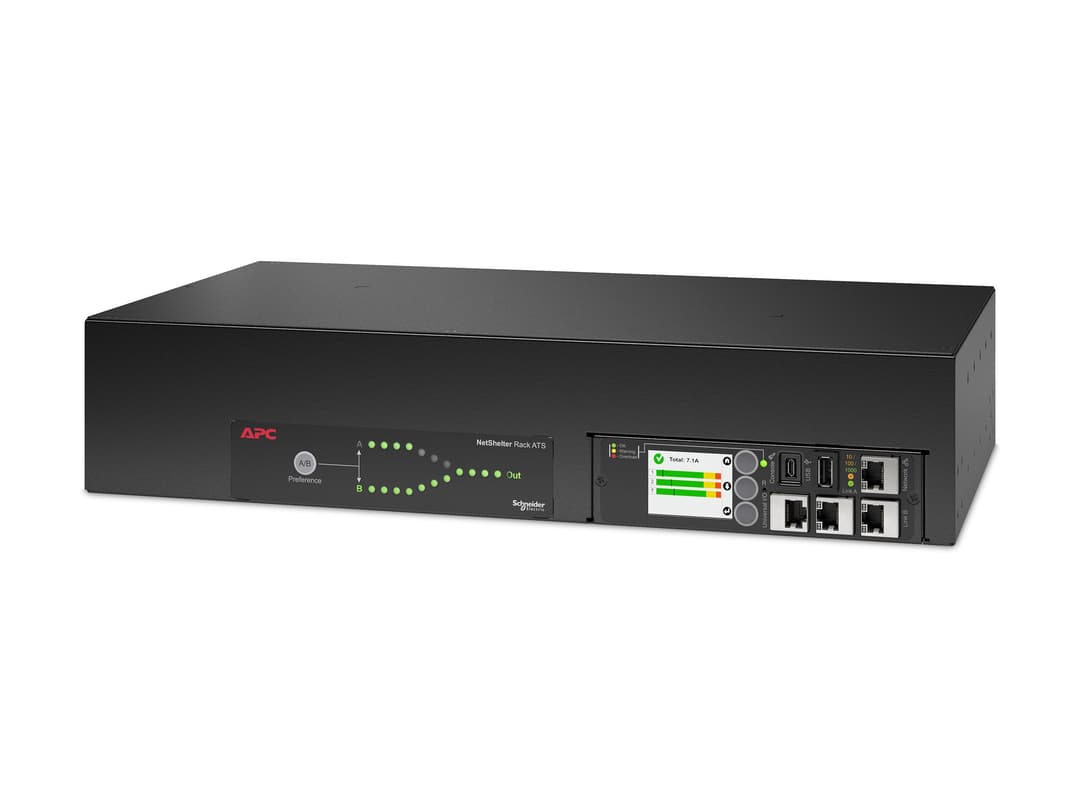

- APC NetShelter - automatic transfer switch - 7400 VA
- Basic Specifications - Rack Size
- 2U
- Basic Specifications - Weight
- 6.94 kg
- Dimensions & Weight - Depth
- 23.6 cm
- Dimensions & Weight - Height
- 8.8 cm
- Dimensions & Weight - Weight
- 6.94 kg
- Dimensions & Weight - Width
- 43.2 cm
- Dimensions & Weight (Shipping) - Shipping Depth
- 35.6 cm
- Dimensions & Weight (Shipping) - Shipping Height
- 21 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 9.43 kg
- Dimensions & Weight (Shipping) - Shipping Width
- 58.4 cm
- Environmental Parameters - Humidity Range Operating
- 5 - 95% RH (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 45 °C
- Environmental Parameters - Min Operating Temperature
- -5 °C
- Expansion / Connectivity - Interfaces
- 4 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type B
- General - Colour
- Black
- General - Cord Length
- 2.43 m
- General - Device Type
- Automatic transfer switch - rack-mountable
- General - Height (Rack Units)
- 2U
- Manufacturer Warranty - Service & Support
- Limited warranty - replace or repair - 2 years
- Miscellaneous - Cables Included
- 2 x serial cable - external - 2.43 m
- Miscellaneous - Compliant Standards
- EN 55022 Class A, FCC Part 15 A, REACH, EU RoHS, China RoHS, WEEE
- Miscellaneous - Features
- Horizontal mount, mercury free, LED indicators, LCD display
- Miscellaneous - Included Accessories
- Mounting kit, rack mounting brackets, serial configuration cable
- Miscellaneous - Rack Mounting Kit
- Included
- Networking - Remote Management Interface
- Ethernet 10/100/1000, USB
- Power Device - Circuit Protection
- Circuit breaker
- Power Device - Frequency Required
- 50/60 Hz
- Power Device - Input Connectors
- 2 x power IEC 60309 32A
- Power Device - Input Voltage
- AC 207-253 V
- Power Device - Input Wiring
- 1-phase
- Power Device - Max Electric Current
- 32 A
- Power Device - Output Voltage
- AC 230 V
- Power Device - Power Capacity
- 7400 VA
- Power Device - Power Output Connectors Details
- 16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
