- Basic Specifications - Battery
- Lithium ion
- Basic Specifications - Colour
- Black
- Basic Specifications - Designed For
- P/N: ACCS1001, ACDC1015, ACDC1019, AP5607, AP9290, AR106V, AR204A, AR3150SP2, AR3300W, AR3350W, AR3357X610, AR3357X617, AR4018A, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432
- Basic Specifications - Device Type
- UPS - rack-mountable / external
- Basic Specifications - Dimensions (WxDxH)
- 43.8 cm x 31.8 cm x 8.6 cm
- Basic Specifications - EAN
- 0731304407966
- Basic Specifications - Input Connectors
- Power IEC 60320 C14
- Basic Specifications - Input Voltage
- AC 230 V
- Basic Specifications - Input Wiring
- 1-phase
- Basic Specifications - Manufacturer Warranty
- 5-year warranty
- Basic Specifications - Manufacturer's Part Number
- SMTL750RMI2UC
- Basic Specifications - Model

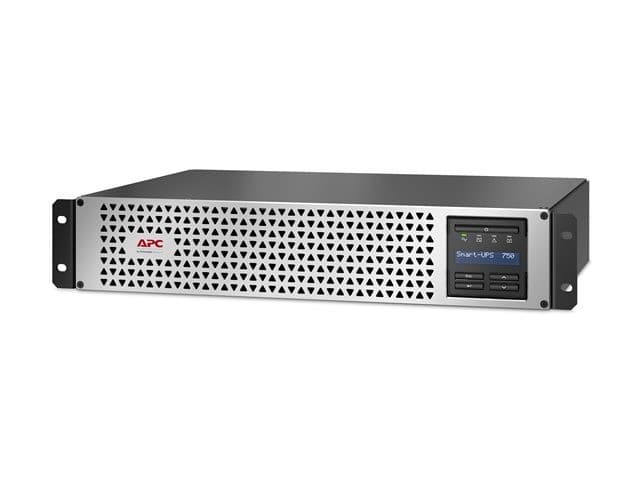

- APC Smart-UPS Li-Ion 750VA Short Depth with SmartConnect
- Basic Specifications - Networking
- RS-232, USB
- Basic Specifications - Output connectors
- 6 x power IEC 60320 C13 ¦ 2 x IEC jumper
- Basic Specifications - Output Voltage
- AC 230 V ± 5%
- Basic Specifications - Power Capacity
- 600 Watt / 750 VA
- Basic Specifications - Product Description
- APC Smart-UPS Li-Ion 750VA Short Depth with SmartConnect - UPS - 600 Watt - 750 VA
- Basic Specifications - Product Type
- UPS
- Basic Specifications - Rack Size
- 2U
- Basic Specifications - Weight
- 17.69 kg
- Battery - Recharge Time
- 3 hours
- Battery - Technology
- Lithium ion
- Compatibility Information - Designed For
- P/N: ACCS1001, ACDC1015, ACDC1019, AP5607, AP9290, AR106V, AR204A, AR3150SP2, AR3300W, AR3350W, AR3357X610, AR3357X617, AR4018A, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432
- Dimensions & Weight - Depth
- 31.8 cm
- Dimensions & Weight - Height
- 8.6 cm
- Dimensions & Weight - Weight
- 17.69 kg
- Dimensions & Weight - Width
- 43.8 cm
- Dimensions & Weight (Shipping) - Shipping Depth
- 47.2 cm
- Dimensions & Weight (Shipping) - Shipping Height
- 22.9 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 18.6 kg
- Dimensions & Weight (Shipping) - Shipping Width
- 58.4 cm
- Environmental Parameters - Humidity Range Operating
- 0 - 95% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Sound Emission
- 45 dB
- Expansion / Connectivity - Expansion Slots
- 1 (total) / 1 (free) x SmartSlot
- Expansion / Connectivity - Interfaces
- 1 x management (RS-232) - RJ-45 ¦ 1 x management (USB)
- General - Colour
- Black
- General - Device Type
- UPS - rack-mountable / external
- General - Height (Rack Units)
- 2U
- Manufacturer Warranty - Service & Support
- Limited warranty - 5 years
- Miscellaneous - Compliant Standards
- UL 1449, IP20, CSA C22.2 No. 107.1, FCC Part 15 A, NOM, UL 1778, RoHS, REACH
- Miscellaneous - Features
- Audible alarm, LCD display
- Networking - Remote Management Interface
- RS-232, USB
- Power Device - Frequency Provided
- 50/60 Hz ± 3Hz
- Power Device - Frequency Required
- 50/60 Hz ± 3Hz
- Power Device - Input Connectors
- Power IEC 60320 C14
- Power Device - Input Voltage
- AC 230 V
- Power Device - Input Voltage Range
- AC 160 - 286 V
- Power Device - Input Voltage Range (Adjustable)
- AC 151 - 302 V
- Power Device - Input Wiring
- 1-phase
- Power Device - Output Voltage
- AC 230 V ± 5% - 50/60 Hz
- Power Device - Output Waveform
- Sinewave
- Power Device - Power Capacity
- 600 Watt / 750 VA
- Power Device - Power Output Connectors Details
- 6 x power IEC 60320 C13 ¦ 2 x IEC jumper
- Power Device - Surge Energy Rating
- 645 Joules
- Power Device - Surge Suppression
- Yes
- Power Device - UPS Technology
- Line interactive
- Software / System Requirements - Software Included
- APC PowerChute Business Edition
