- Basic Specifications - EAN
- 4711387754818
- Basic Specifications - Manufacturer's Part Number
- 125812

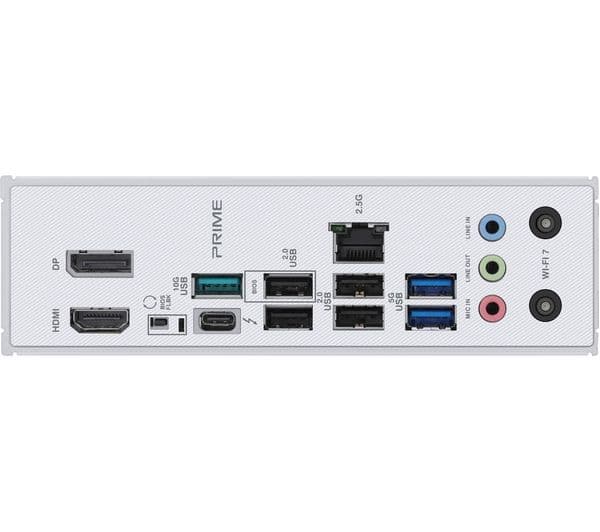

- External connectivity - Audio
- 3.5 mm jack x 3
- External connectivity - LAN
- - Intel® 2.5Gb Ethernet x 1- ASUS LANGuard
- External connectivity - Other external connections
- - WiFi module x 1- S/PDIF x 1
- External connectivity - USB
- - USB Type-C x 1- USB 3.2 x 5- USB 2.0 x 6
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

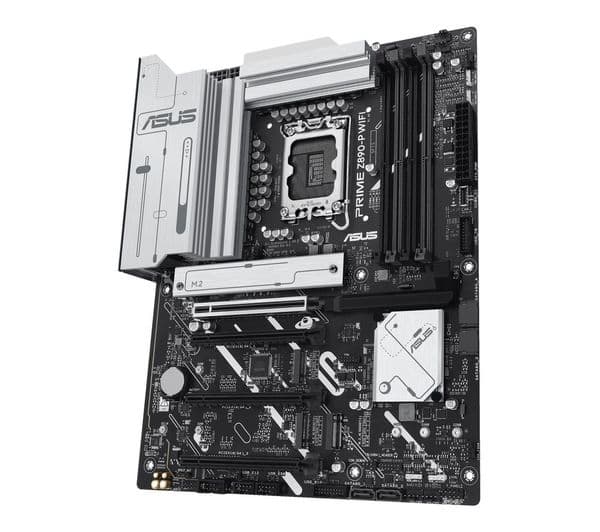

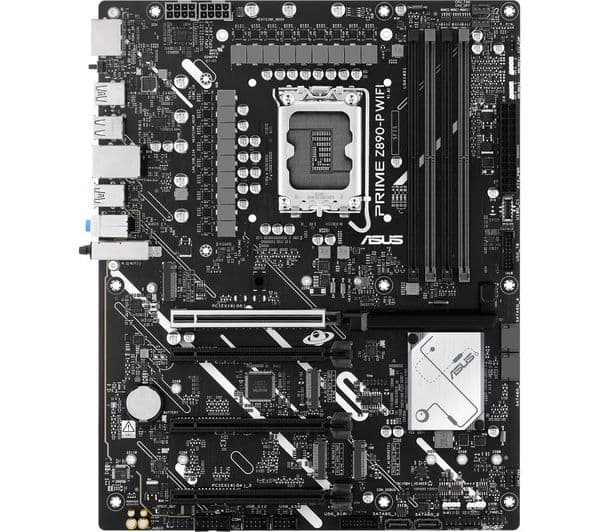

- - ASUS PRIME Z890-P WIFI LGA1851 Motherboard- SATA 6Gb/s cables x 2- ASUS WiFi Q-Antenna x 1- Screw package for M.2 SSD x 2- Documentation- Quick start guide
- General - Colour
- Black
- General - Dimensions
- 50 x 244 x 305 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Software included
- - Armoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- ASUS GlideX- ASUS CPU-Z- TurboV Core- Norton 360 Deluxe (60 Days Free Trial)- WinRAR (40 Days Free Trial)- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode- ASUS MyHotkey
- General - Weight
- 1.26 kg
- Internal connectivity - BIOS
- - UEFI AMI BIOS- Flash ROM (256 MB)
- Internal connectivity - Buttons
- - Power- Clear CMOS- BIOS FlashBack
- Internal connectivity - Case
- - Power LED x 1- QLED x 1
- Internal connectivity - Cooling
- - 4-pin CPU Fan header x 1- 4-pin CPU OPT Fan header x 1- 4-pin AIO Pump header x 1- 4-pin Chassis Fan headers x 4
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1- PCIe 4.0 (x16) x 2 (support x4 mode)- PCIe 4.0 (x16) x 1 (supports x1 mode)
- Internal connectivity - Other internal connections
- - Addressable Gen 2 headers x 3- Aura RGB header x 1- Clear CMOS header x 1- COM Port header x 1- Front Panel Audio header (AAFP) x 1- S/PDIF Out header x 1- Speaker header x 1- SPI TPM header (14-1pin) x 1- 10-1 pin System Panel header x 1
- Internal connectivity - Power
- - 24-pin main power x 1- 8-pin 12 V power x 2
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 4
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.0 x 5- USB 2.0 x 6
- Overview - Chipset
- Intel® Z890
- Overview - Cooling features
- Fan Xpert 4 (with AI Cooling II)
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 192 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11
- Overview - Processor models supported
- Intel® Core™ Ultra Processors (series 2)
- Overview - Socket
- Intel® LGA1851
