Description

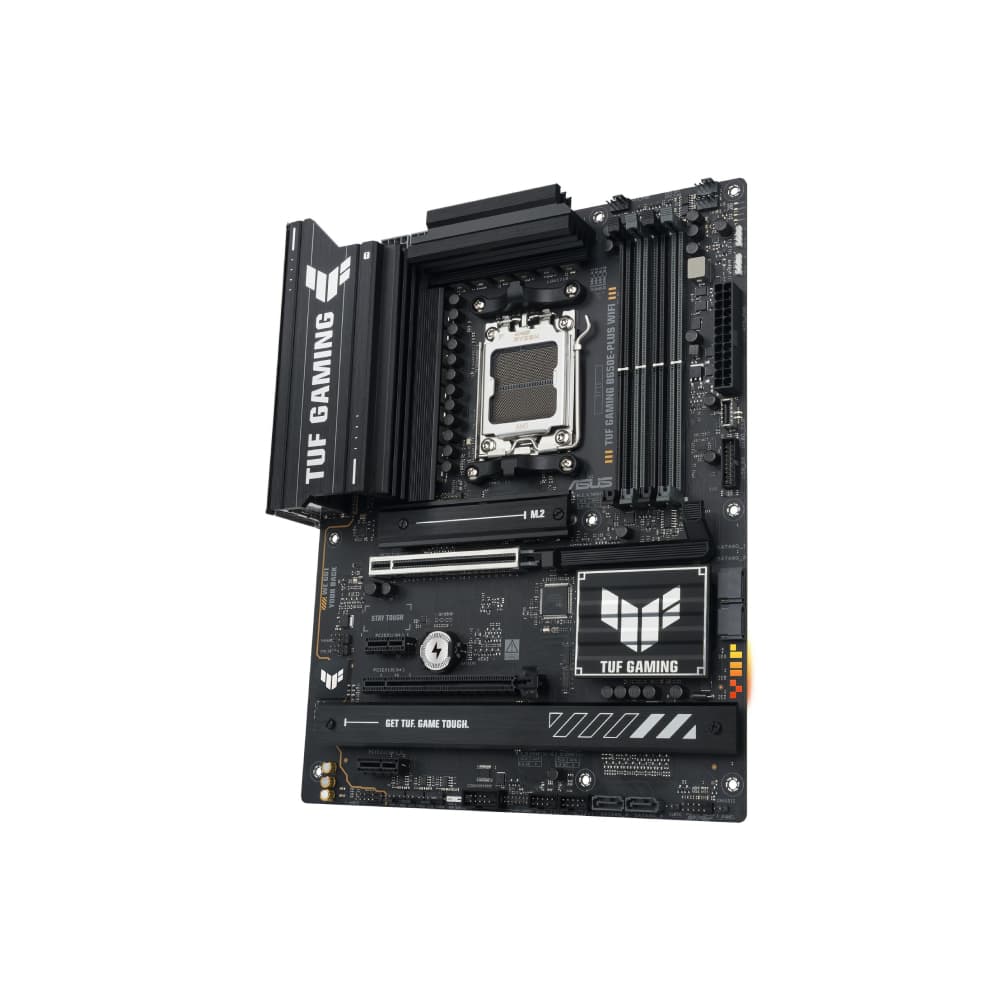

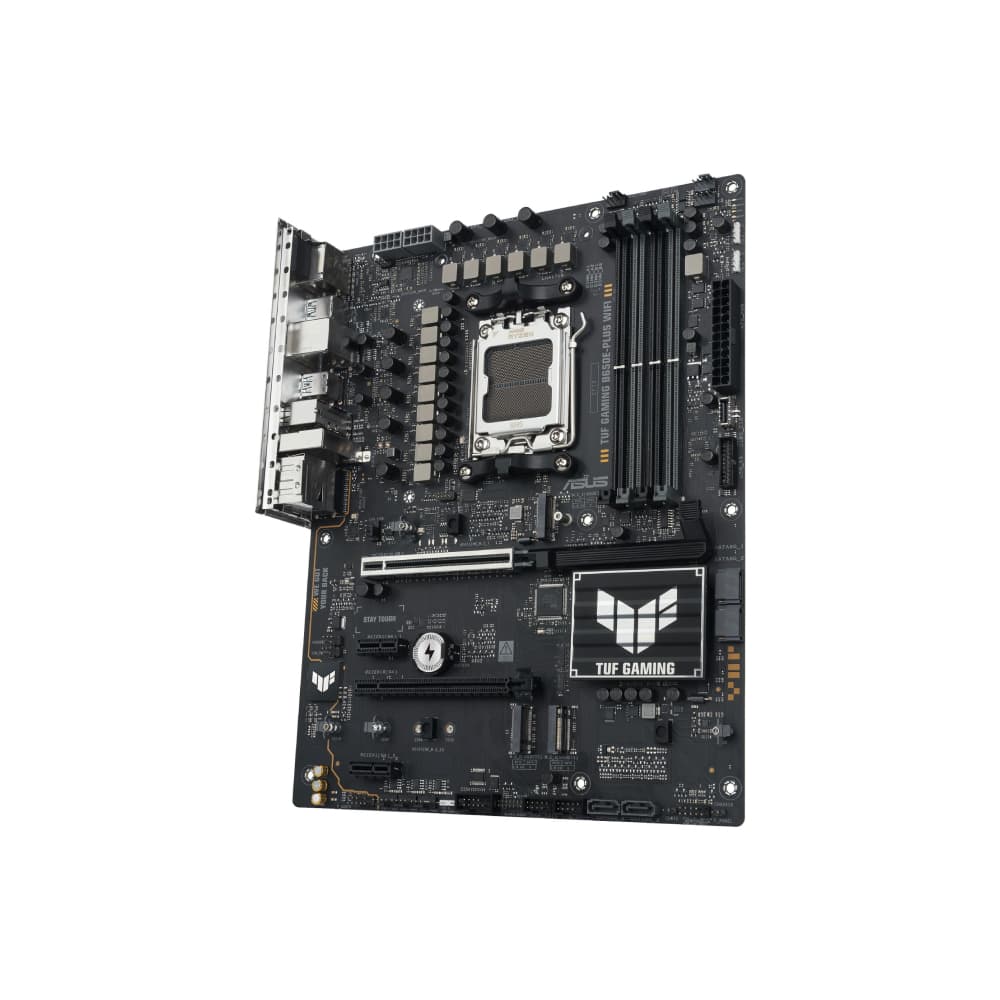

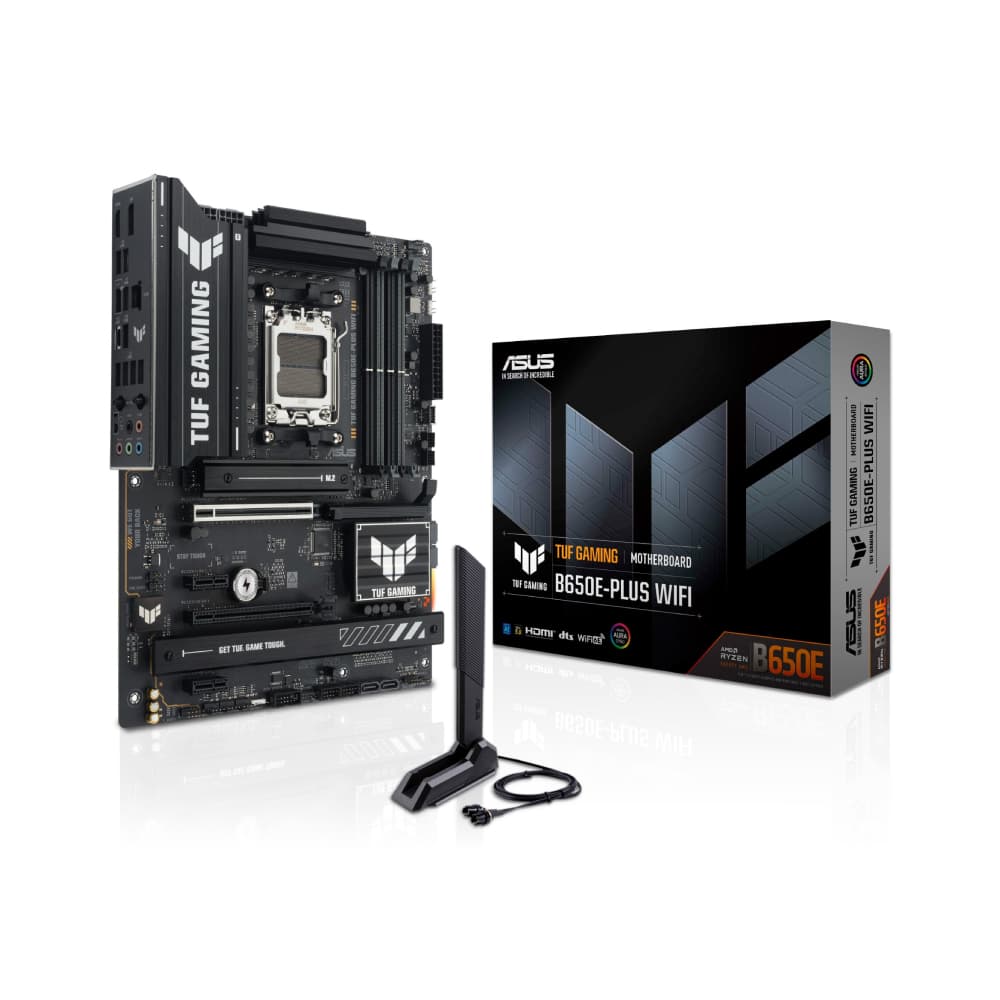

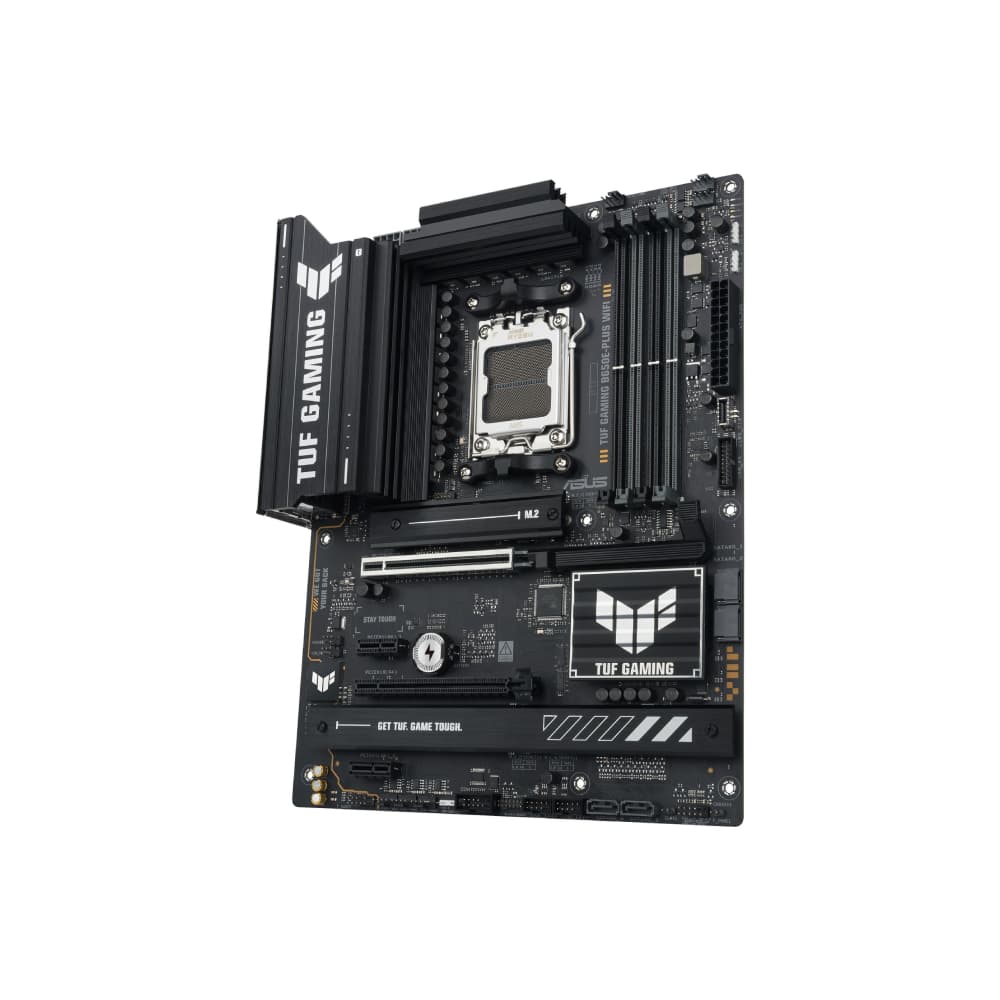

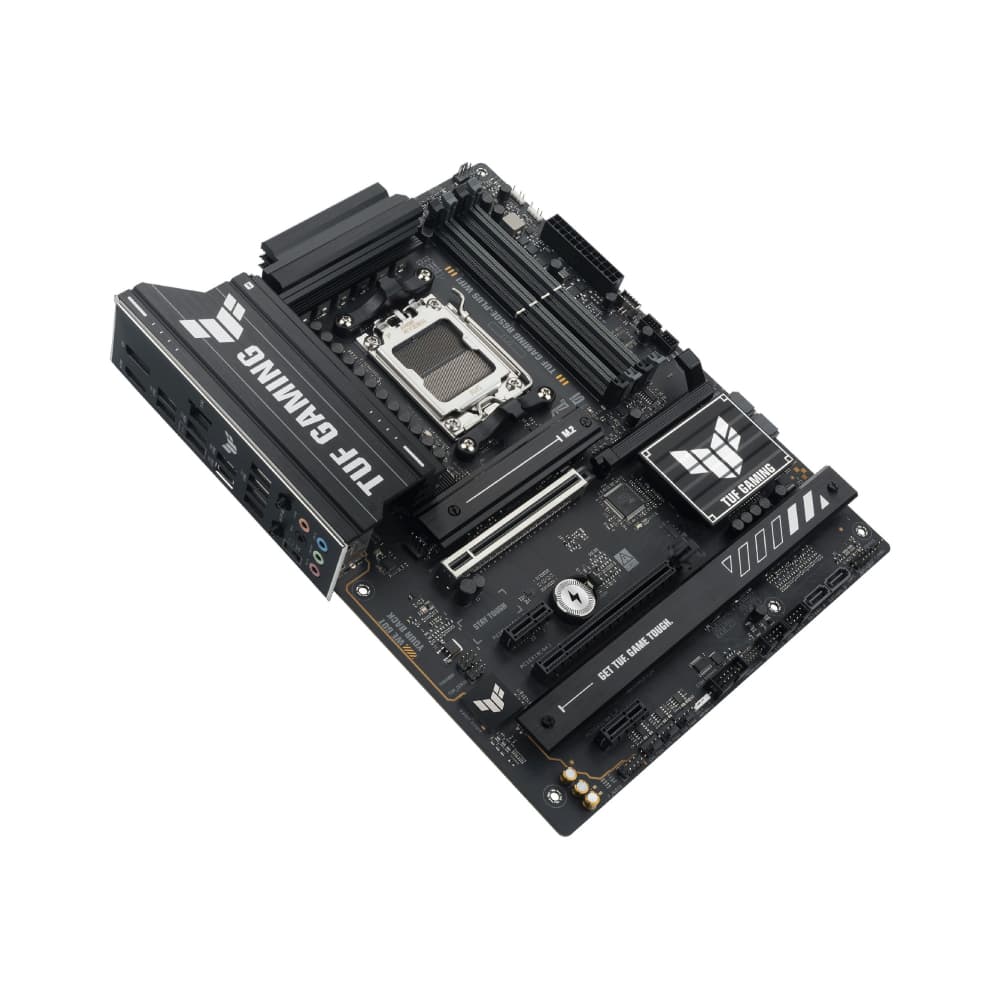

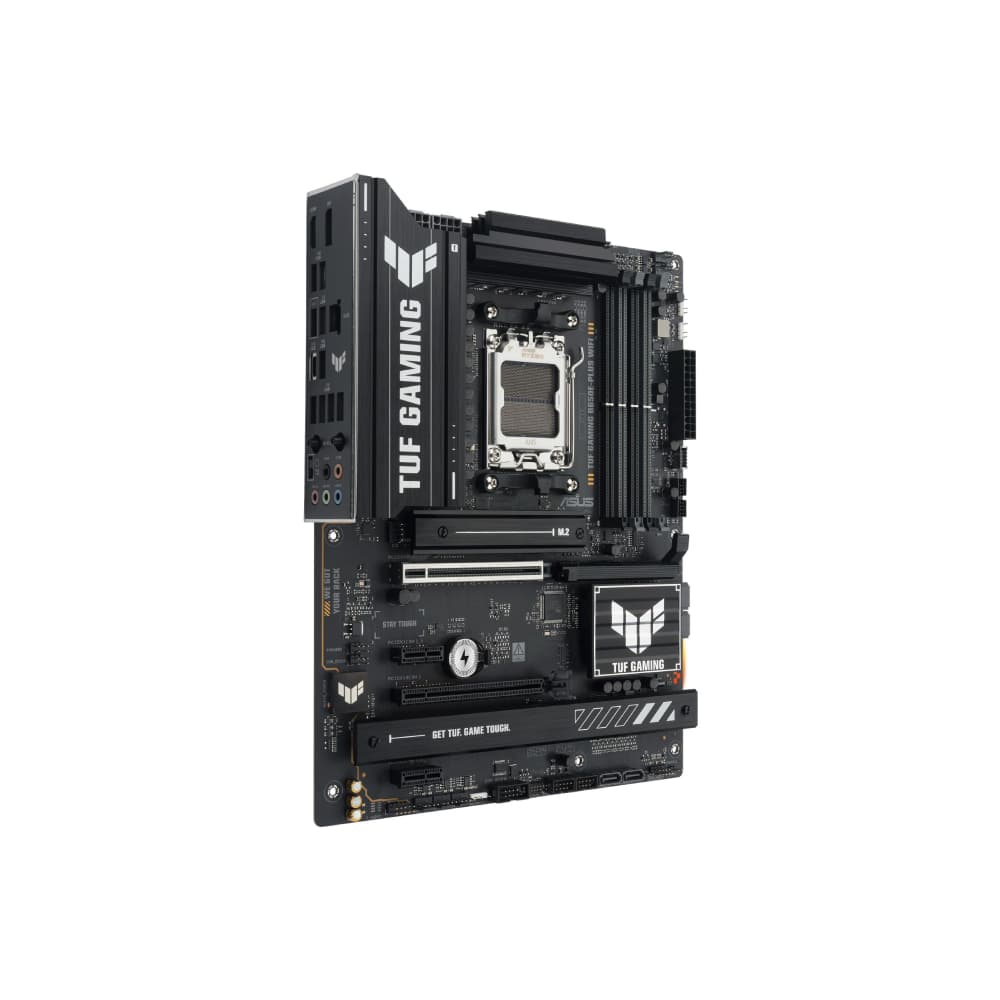

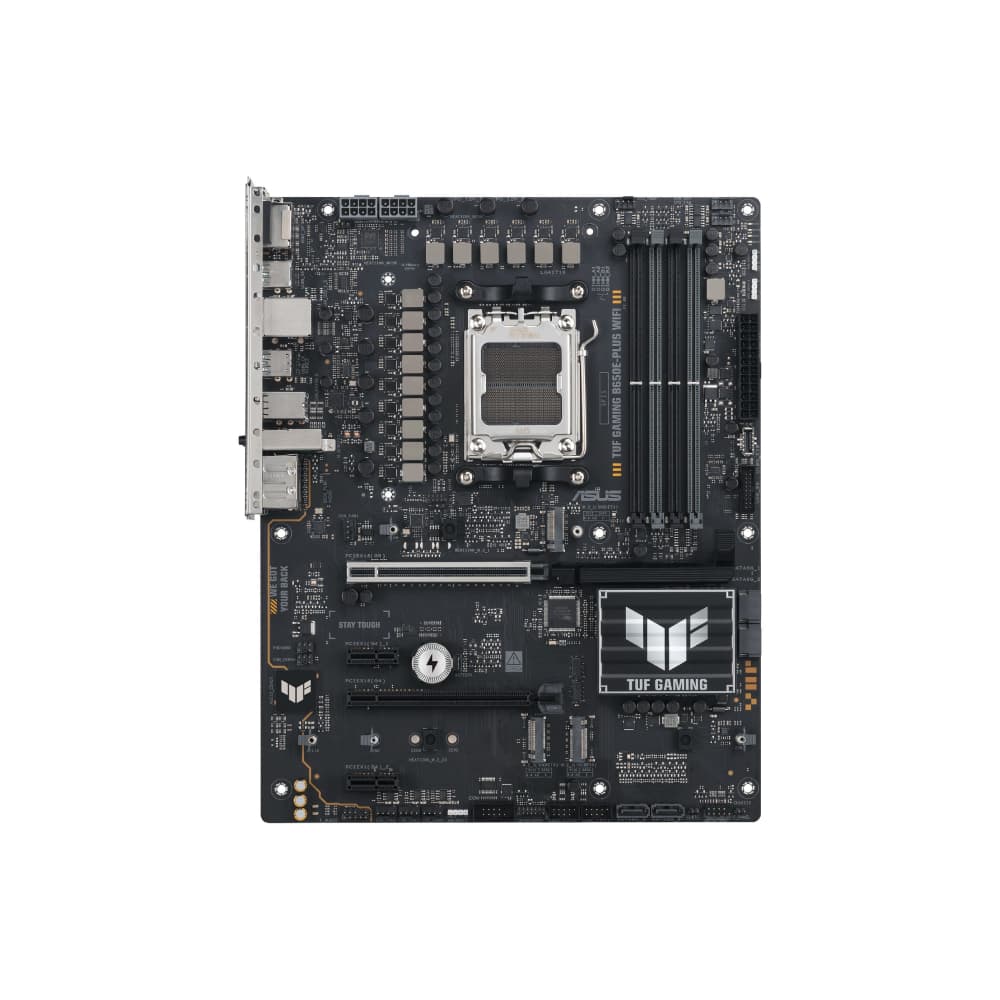

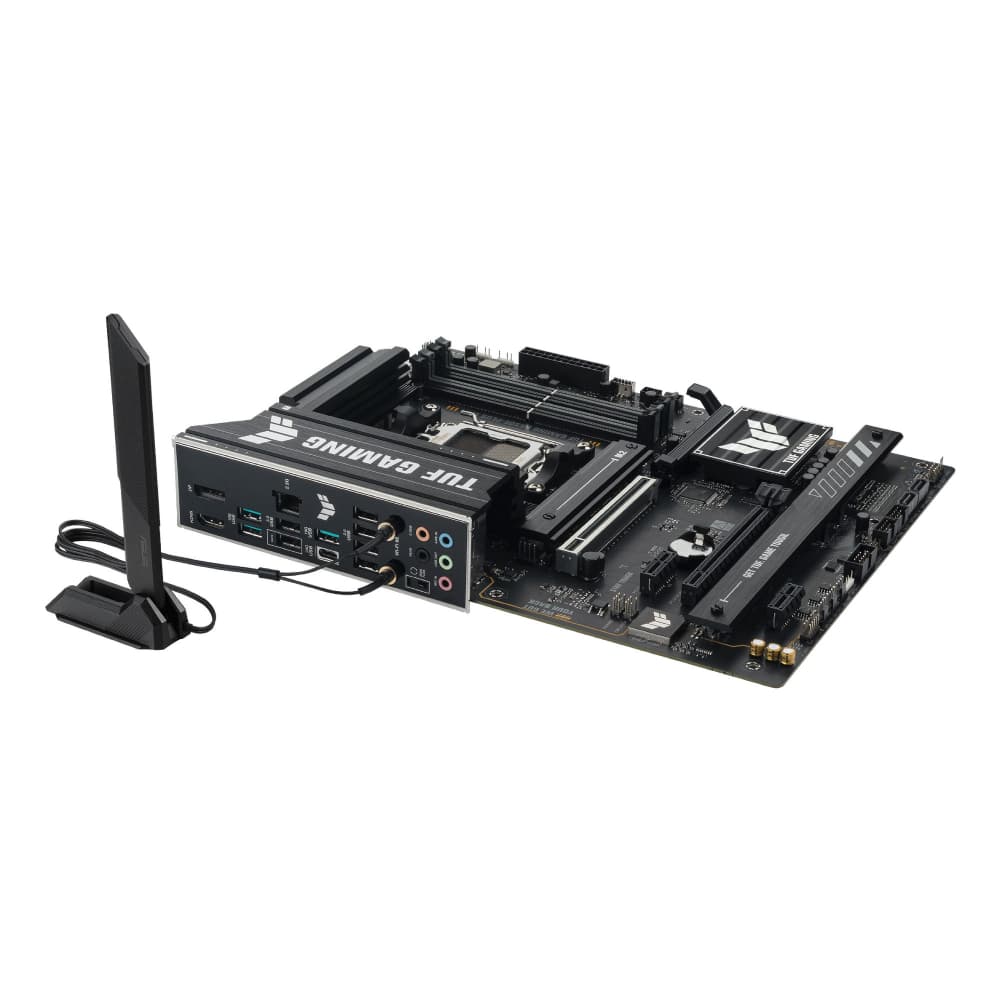

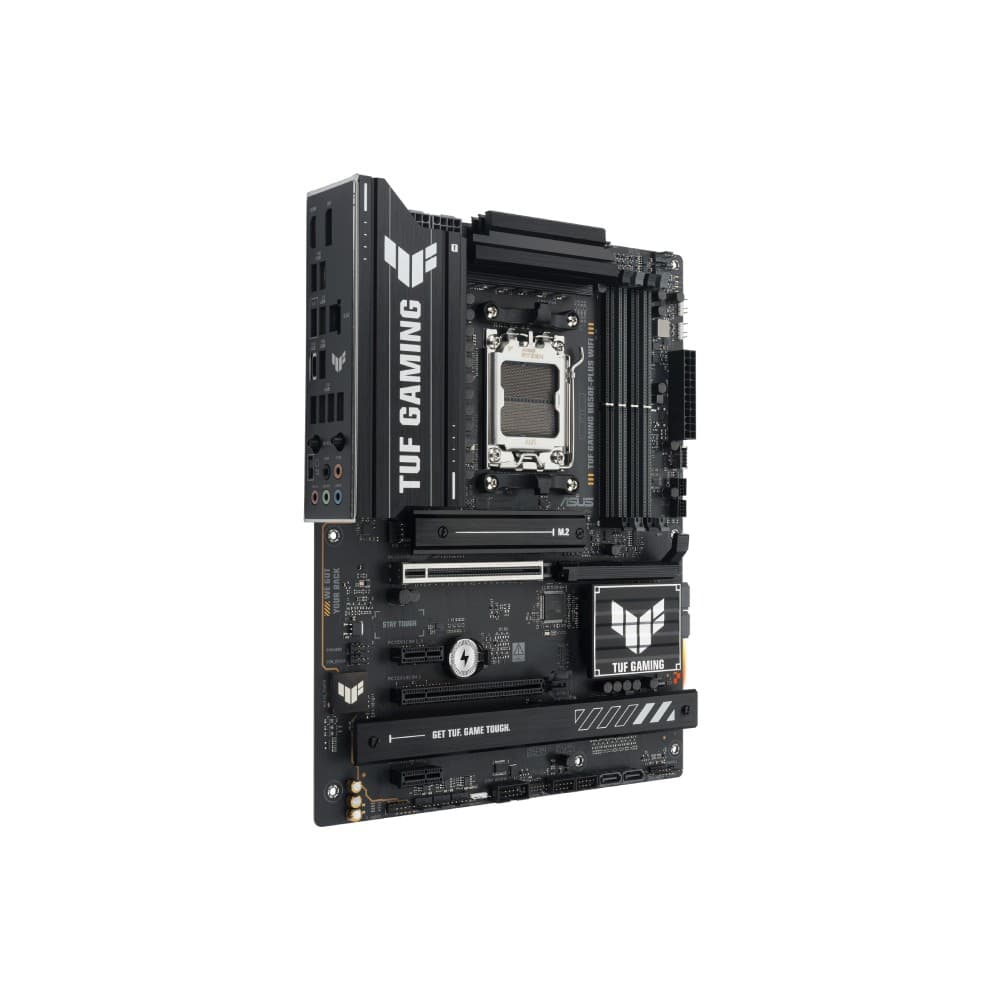

The ASUS TUF GAMING B650E-PLUS WIFI is a feature-rich ATX motherboard designed for AMD Ryzen desktop processors using the AM5 socket. It supports Ryzen 7000 8000 and 9000 Series processors and provides a strong foundation for gaming PCs high-performance desktops and demanding computing systems.
The motherboard supports DDR5 memory through four DIMM slots with dual-channel architecture and AMD EXPO support. It supports memory speeds of up to 8000+ MT/s through overclocking with compatible processors and memory configurations.
Storage connectivity includes three M.2 slots and four SATA 6Gb/s ports. The primary M.2 slot supports PCIe 5.0 x4 with compatible Ryzen 9000 and 7000 Series processors, while additional M.2 slots provide PCIe 4.0 connectivity.
For graphics and expansion, the board provides a PCIe 5.0 x16 slot, an additional PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots. Display connectivity includes HDMI 2.1 and DisplayPort 1.4 for compatible processors with integrated graphics.

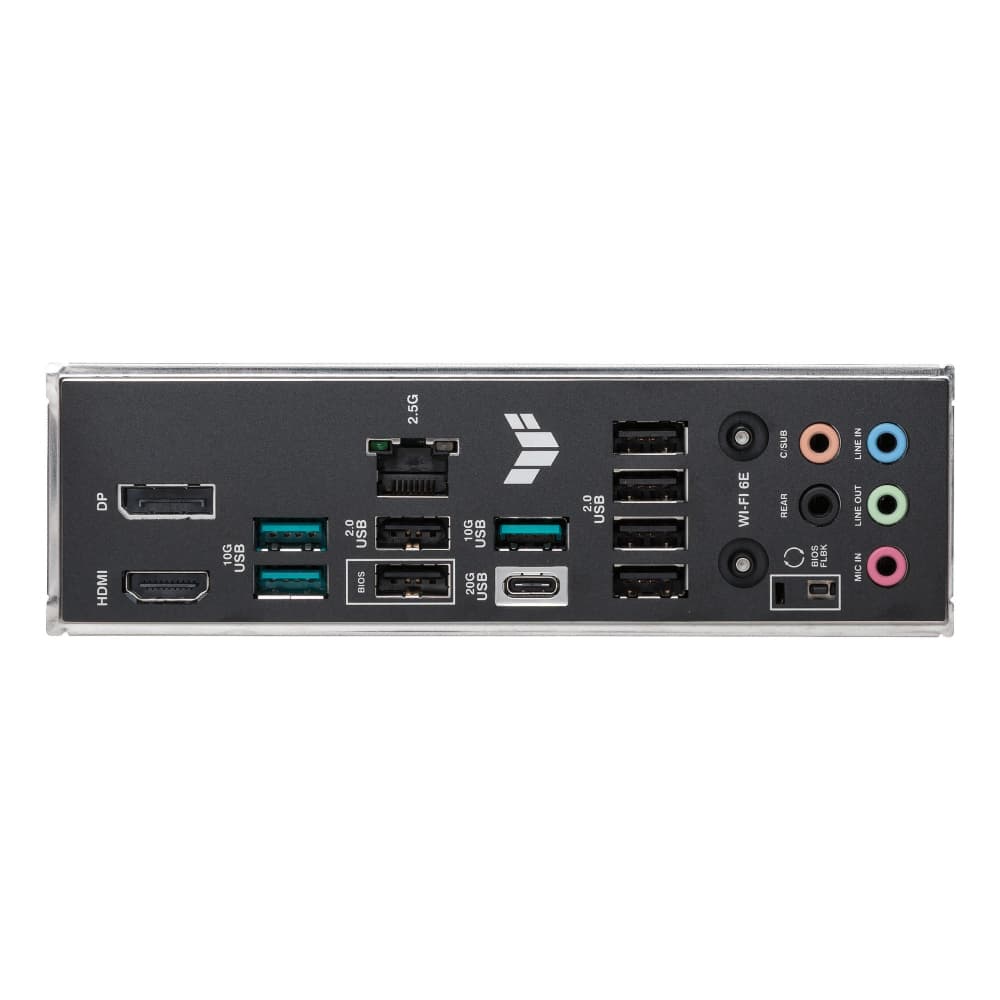

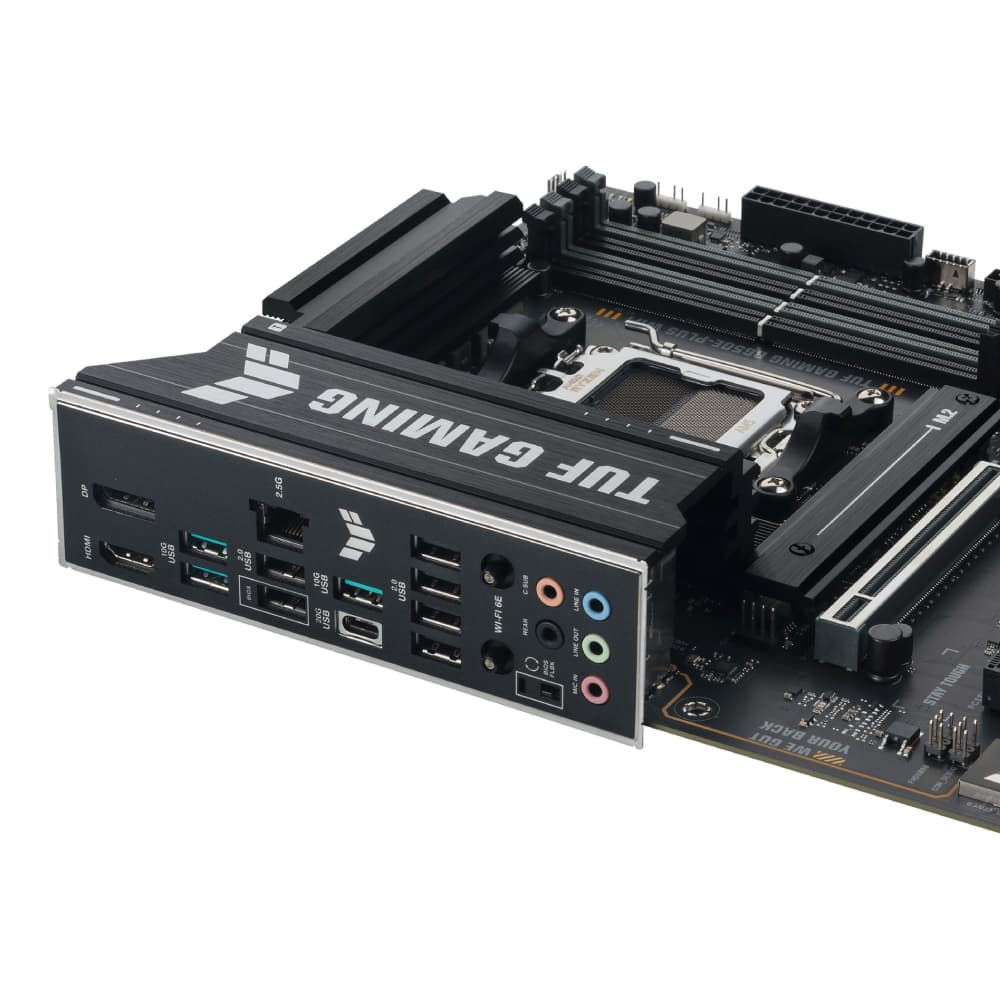

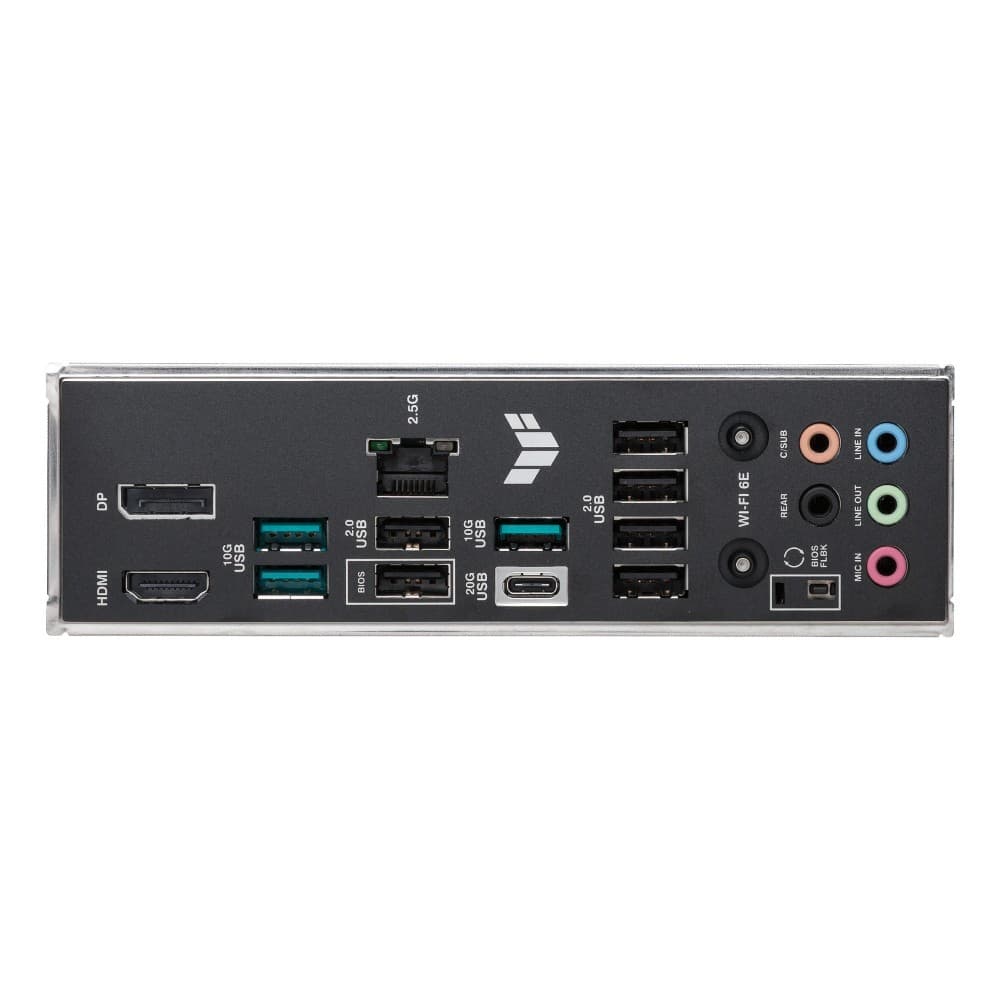

Built-in networking includes Wi-Fi 6E with 2x2 connectivity, Bluetooth 5.3 and a Realtek 2.5Gb Ethernet connection. USB connectivity includes a rear USB 20Gbps Type-C port, USB 10Gbps Type-A ports and USB 2.0 ports.
The motherboard also features Realtek 7.1-channel high-definition audio, BIOS FlashBack, M.2 heatsinks, VRM cooling and ASUS TUF protection technologies. Its ATX form factor makes it suitable for compatible ATX desktop PC cases.
