- Basic Specifications - EAN
- 4711387764916
- Basic Specifications - Manufacturer's Part Number
- 126170
- External connectivity - Audio
- 3.5 mm jack x 5
- External connectivity - LAN
- Realtek 2.5Gb Ethernet x 1
- External connectivity - USB
- - USB Type-C (10Gbps connector) x 1- USB (5 Gbps header supports 2 additional USB 5Gbps ports) x 1- USB (2.0 headers support 4 additional USB 2.0 ports) x 2
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

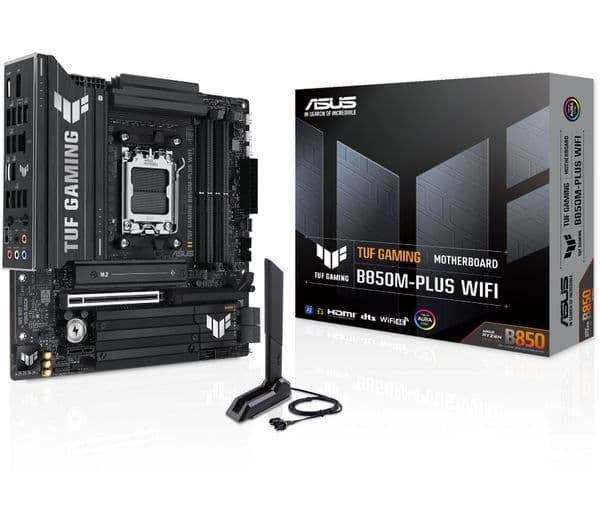

- - ASUS TUF GAMING B850M-PLUS AM5 Motherboard- SATA cables x 2- TUF Gaming sticker x 1- M.2 rubber package x 2- M.2 screw package x 1- Documentation- Quick start guide
- General - Colour
- Black
- General - Dimensions
- 244 x 244 x 500(H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Software included
- - ASUS Exclusive Software- UEFI BIOS
- General - Weight
- 1.2 kg
- Internal connectivity - BIOS
- - UEFI AMI BIOS- 256 Mb Flash ROM
- Internal connectivity - Buttons
- - Power- Reset- BIOS FlashBack
- Internal connectivity - Case
- Power LED x 1
- Internal connectivity - Cooling
- - 4-pin CPU Fan header x 1- 4-pin CPU OPT Fan header x 1- 4-pin AIO Pump header x 1- 4-pin Chassis Fan headers x 3
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16 slot) (supports x16 mode) x 1- PCIe 4.0 (x16 slot) (supports x8 / x4 mode) x 1- PCIe 4.0 (x1 slot) x 1
- Internal connectivity - Other internal connections
- - Addressable Gen 2 headers x 3- Clear CMOS header x 1- Chassis Intrusion header x 1- COM Port header x 1- Front Panel Audio header (F_AUDIO) x 1- 10-1 pin Front Panel System header x 1
- Internal connectivity - Power
- - 24-pin EATX x 1- 8-pin ATX x 2
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 3
- Internal connectivity - USB
- - USB Type-C x 2- USB 2.0 x 6- USB 3.0 x 10
- Overview - Chipset
- AMD B850
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 192 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- - Windows 10 (64-bit)- Windows 11
- Overview - Processor models supported
- AMD Ryzen 9000 / 8000 / 7000 Series desktop processors
- Overview - Socket
- AMD AM5
