- Aerial - Aerial
- External detachable
- Aerial - Antenna Qty
- 6
- Aerial - Configuration Details
- 4 detachable external LTE antennas, 2 detachable WiFi antennas
- Basic Specifications - Capacity
- NAT sessions: 60000 ¦ Concurrent VPN tunnels: 32 ¦ Concurrent SSL VPN tunnels: 16 ¦ SSIDs per radio: 4
- Basic Specifications - Cellular Band
- 5G n1, 5G n3, 5G n7, 5G n8, 5G n20, 5G n28, 5G n38, 5G n40, 5G n77, 5G n78, LTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, WCDMA B1, WCDMA B8
- Basic Specifications - Compliant Standards
- ITU-T G.993.1, ITU-T G.993.2, ITU-T G.997.1, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite) Annex A, ITU-T G.992.3, ITU-T G.992.5
- Basic Specifications - Device Type
- Wireless router - 5-port switch (integrated)
- Basic Specifications - Digital Signaling Protocol
- ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
- Basic Specifications - Dimensions (WxDxH)
- 24.1 cm x 16.5 cm x 4.4 cm
- Basic Specifications - EAN
- 4712909127370
- Basic Specifications - Enclosure Type
- Desktop, wall-mountable
- Basic Specifications - Features
- Reset button, ARP detect, Bandwidth Limiter, DrayDDNS, dynamic DNS, IPsec hardware acceleration, load balancing, Multicast VLAN routing, ping detect, DPBO, UPBO, loop diagnostic mode, MU-MIMO technology, WMM support, WPS button, EAPOL, UPnP, ALG support, QoS, DHCP server, DNS server, VLAN Tagging
- Basic Specifications - Frequency Band
- 2.4 GHz / 5 GHz
- Basic Specifications - Localisation
- United Kingdom, Ireland
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- V2865LAX-5G-K
- Basic Specifications - Mobile Communication Protocol
- WCDMA, LTE, 5G
- Basic Specifications - Model
- Draytek Vigor 2865LAX
- Basic Specifications - Network / Transport Protocol
- PPPoA, PPPoE, DHCP, PPTP, L2TP, DHCPv6, IPv6, RTSP, FTP, IPSec, WireGuard, OpenVPN, Telnet
- Basic Specifications - Performance
- NAT throughput (with VDSL2): 100 Mbps ¦ NAT throughput (with VDSL2 35b): 300 Mbps ¦ NAT throughput for single WAN with hardware acceleration: 950 Mbps ¦ NAT throughput (total multi-WAN): 1.3 Gbps ¦ NAT throughput without hardware acceleration: 800 Mbps ¦ VPN throughput (256-bit AES IPSec): 300 Mbps ¦ VPN throughput (hardware accelerated IPSec): 800 Mbps ¦ VPN throughput (SSL): 130 Mbps
- Basic Specifications - Power
- AC 100-240 V
- Basic Specifications - Product Description

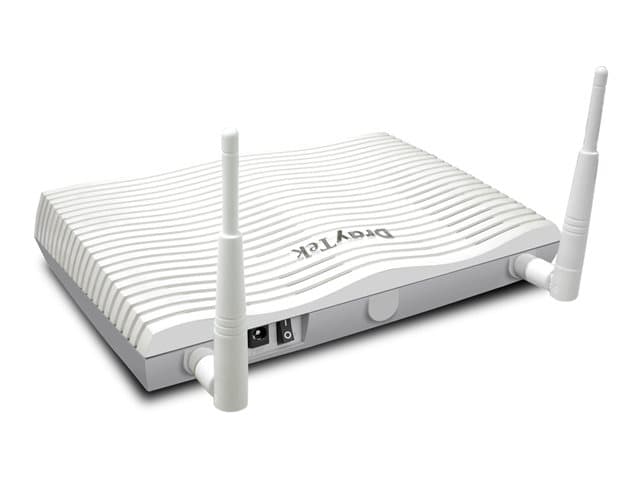

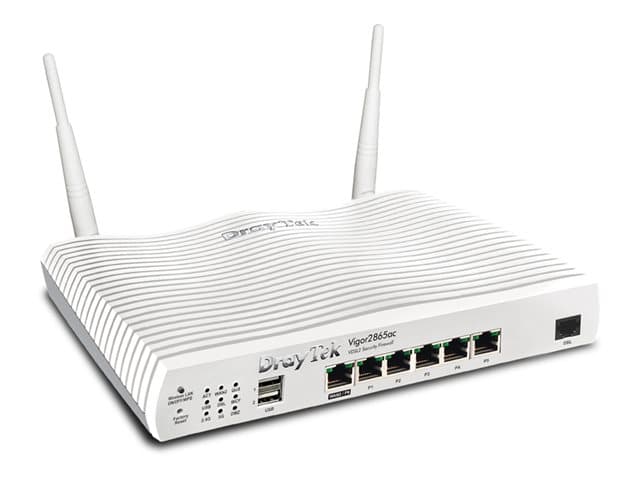

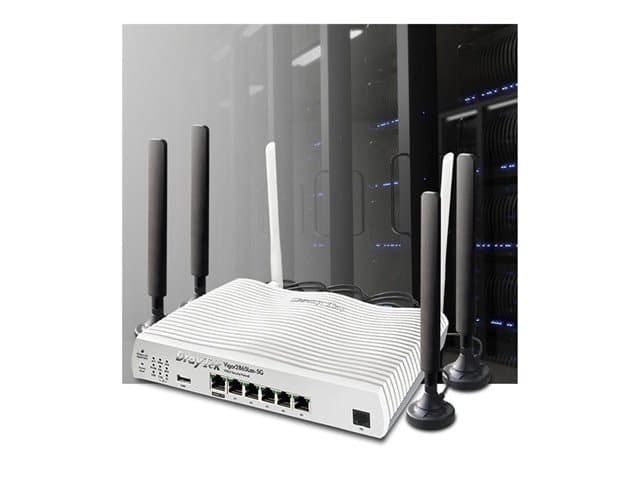

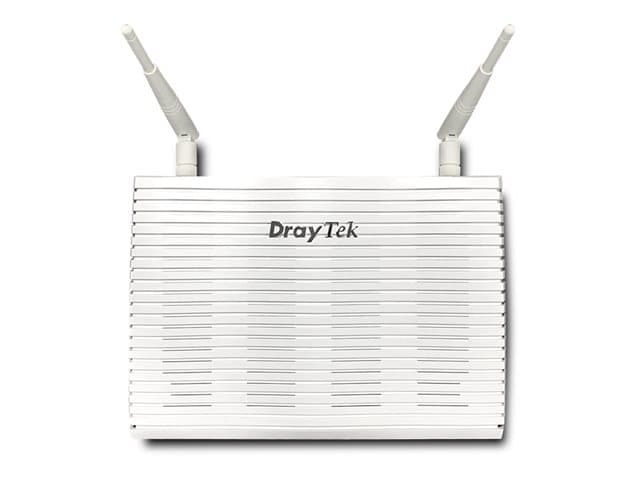

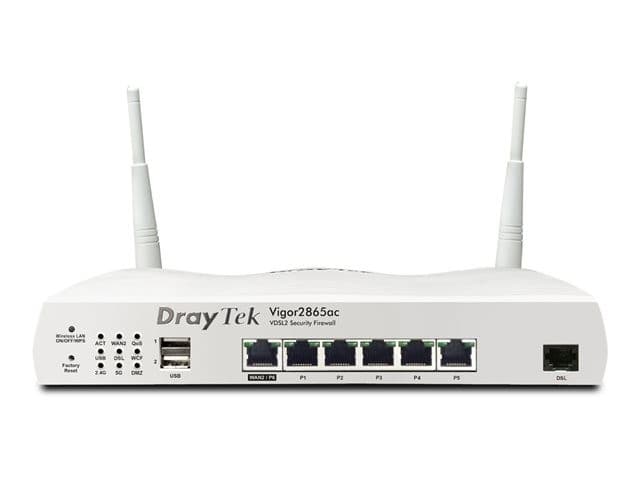

- Draytek Vigor 2865LAX - wireless router - desktop, wall-mountable
- Basic Specifications - Routing Protocol
- MPOA
- Basic Specifications - VoIP Protocols
- SIP, H.323
- Basic Specifications - WAN Ports Qty
- 2
- Basic Specifications - Weight
- 670 g
- Communications - Cellular Band
- 5G n1, 5G n3, 5G n7, 5G n8, 5G n20, 5G n28, 5G n38, 5G n40, 5G n77, 5G n78, LTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, WCDMA B1, WCDMA B8
- Communications - Digital Signaling Protocol
- ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
- Communications - Mobile Communication Protocol
- WCDMA, LTE, 5G
- Dimensions & Weight - Depth
- 16.5 cm
- Dimensions & Weight - Height
- 4.4 cm
- Dimensions & Weight - Weight
- 670 g
- Dimensions & Weight - Width
- 24.1 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 45 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Expansion Slots
- 2 (total) / 2 (free) x SIM
- Expansion / Connectivity - Interfaces
- WAN: 1 x VDSL2 / ADSL2+ - RJ-11 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A
- General - Authentication Method
- RADIUS, LDAP, TACACS+, Mobile One Time Password (mOTP), Time-based One Time Password (TOTP), X.509 certificates
- General - Capacity
- NAT sessions: 60000 ¦ Concurrent VPN tunnels: 32 ¦ Concurrent SSL VPN tunnels: 16 ¦ SSIDs per radio: 4
- General - Compliant Standards
- ITU-T G.993.1, ITU-T G.993.2, ITU-T G.997.1, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite) Annex A, ITU-T G.992.3, ITU-T G.992.5, IEEE 802.11ax
- General - Connectivity Technology
- Wired, wireless
- General - Device Type
- Wireless router - 5-port switch (integrated)
- General - Enclosure Type
- Desktop, wall-mountable
- General - Encryption Algorithm
- WPA2, WPA3, WEP, WPA, MPPE, DES, 3DES, AES, SHA-256, SHA-1, IKEv1, IKEv2
- General - Features
- Reset button, ARP detect, Bandwidth Limiter, DrayDDNS, dynamic DNS, IPsec hardware acceleration, load balancing, Multicast VLAN routing, ping detect, DPBO, UPBO, loop diagnostic mode, MU-MIMO technology, WMM support, WPS button, EAPOL, UPnP, ALG support, QoS, DHCP server, DNS server, VLAN Tagging
- General - Frequency Band
- 2.4 GHz / 5 GHz
- General - Network / Transport Protocol
- PPPoA, PPPoE, DHCP, PPTP, L2TP, DHCPv6, IPv6, RTSP, FTP, IPSec, WireGuard, OpenVPN, Telnet
- General - Performance
- NAT throughput (with VDSL2): 100 Mbps ¦ NAT throughput (with VDSL2 35b): 300 Mbps ¦ NAT throughput for single WAN with hardware acceleration: 950 Mbps ¦ NAT throughput (total multi-WAN): 1.3 Gbps ¦ NAT throughput without hardware acceleration: 800 Mbps ¦ VPN throughput (256-bit AES IPSec): 300 Mbps ¦ VPN throughput (hardware accelerated IPSec): 800 Mbps ¦ VPN throughput (SSL): 130 Mbps
- General - Routing Protocol
- MPOA
- General - Wi-Fi Rating
- AX3000
- IP Telephony - VoIP Protocols
- SIP, H.323
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Cables Included
- 2 x network cable
- Miscellaneous - Included Accessories
- Wall plugs, 2 x WiFi aerials, 4 x LTE aerials, 4 x LTE extension bases, power supply
- Miscellaneous - Localisation
- United Kingdom, Ireland
- Power - Power Consumption Operational
- 31.2 Watt
- Power - Power Device
- External power adapter
- Power - Voltage Required
- AC 100-240 V
- Software / System Requirements - OS Provided
- No operating system
