- Basic Specifications - Capacity
- Concurrent VPN tunnels: 50 ¦ Concurrent SSL VPN tunnels: 25 ¦ NAT sessions: 60000 ¦ Hardware accelerated NAT sessions: 8000
- Basic Specifications - Compliant Standards
- IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac Wave 2
- Basic Specifications - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Basic Specifications - Device Type
- Wireless router - wireless cellular modem - 6-port switch (integrated)
- Basic Specifications - Dimensions (WxDxH)
- 24.1 cm x 16.5 cm x 4.4 cm
- Basic Specifications - EAN
- 4710484742018
- Basic Specifications - Enclosure Type
- Desktop
- Basic Specifications - Features
- NAT support, VPN support, load balancing, IGMP snooping, Syslog support, DoS attack prevention, content filtering, E-mail alert, print server, MAC address filtering, VPN passthrough, WDS support, firmware upgradable, DDos attack prevention, wall mountable, tunnelling, WMM support, file sharing, QoS, DPD, IPSec NAT-T, roaming function, WAN failover, DHCP server, Multiple SSID support, hidden SSID, reset button, Wireless Client Mode, SPIF, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, DHCP client, tagged VLAN, IGMP proxy, MIB II, DMZ support, VLAN Tagging, port-based VLAN, Wireless Mesh support, WLAN/WPS button, 2x2 MIMO technology, 4x4 MIMO technology, DSCP based QoS
- Basic Specifications - Frequency Band
- 2.4 GHz / 5 GHz
- Basic Specifications - Localisation
- United Kingdom
- Basic Specifications - Manufacturer's Part Number
- V2927LAC-K
- Basic Specifications - Mobile Communication Protocol
- HSPA+, LTE
- Basic Specifications - Model
- Draytek Vigor 2927LAC
- Basic Specifications - Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, DDNS, DHCPv6, IPv4, IPv6
- Basic Specifications - Performance
- VPN throughput (256-bit AES IPSec): 300 Mbps ¦ VPN throughput (SSL): 120 Mbps ¦ NAT throughput for dual WAN with hardware acceleration: 1.8 Gbps ¦ NAT throughput for single WAN with hardware acceleration: 950 Mbps ¦ NAT throughput: 800 Mbps
- Basic Specifications - Power
- AC 230V
- Basic Specifications - Product Description
- Draytek Vigor 2927LAC - wireless router - WWAN - Wi-Fi 5 - desktop
- Basic Specifications - Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, TR-069, TR-104
- Basic Specifications - Routing Protocol
- RIP, BGP, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR)
- Basic Specifications - WAN Ports Qty
- 2
- Communications - Max Transfer Rate
- 300 Mbps
- Communications - Mobile Communication Protocol
- HSPA+, LTE
- Communications - Type
- Wireless cellular modem
- Dimensions & Weight - Depth
- 16.5 cm
- Dimensions & Weight - Height
- 4.4 cm
- Dimensions & Weight - Width
- 24.1 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 45 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Expansion Slots
- 1 (total) / 1 (free) x SIM
- Expansion / Connectivity - Interfaces
- LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB: 1 x 4 pin USB Type A ¦ Antenna: 4 x
- General - Authentication Method
- RADIUS, X.509 certificates, Radio Service Set ID (SSID), TACACS+, LDAP
- General - Built-in Devices
- Led panel
- General - Capacity
- Concurrent VPN tunnels: 50 ¦ Concurrent SSL VPN tunnels: 25 ¦ NAT sessions: 60000 ¦ Hardware accelerated NAT sessions: 8000
- General - Compliant Standards
- IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac Wave 2
- General - Connectivity Technology
- Wireless, wired
- General - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- General - Device Type
- Wireless router - 6-port switch (integrated)
- General - Enclosure Type
- Desktop
- General - Encryption Algorithm
- DES, Triple DES, MPPE, 128-bit WEP, 64-bit WEP, SSL, SHA-1, WPA, WPA2, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, IKEv1, SHA-256
- General - Features
- NAT support, VPN support, load balancing, IGMP snooping, Syslog support, DoS attack prevention, content filtering, E-mail alert, print server, MAC address filtering, VPN passthrough, WDS support, firmware upgradable, DDos attack prevention, wall mountable, tunnelling, WMM support, file sharing, QoS, DPD, IPSec NAT-T, roaming function, WAN failover, DHCP server, Multiple SSID support, hidden SSID, reset button, Wireless Client Mode, SPIF, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, DHCP client, tagged VLAN, IGMP proxy, MIB II, DMZ support, VLAN Tagging, port-based VLAN, Wireless Mesh support, WLAN/WPS button, 2x2 MIMO technology, 4x4 MIMO technology, DSCP based QoS
- General - Frequency Band
- 2.4 GHz / 5 GHz
- General - Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, DDNS, DHCPv6, IPv4, IPv6
- General - Performance
- VPN throughput (256-bit AES IPSec): 300 Mbps ¦ VPN throughput (SSL): 120 Mbps ¦ NAT throughput for dual WAN with hardware acceleration: 1.8 Gbps ¦ NAT throughput for single WAN with hardware acceleration: 950 Mbps ¦ NAT throughput: 800 Mbps
- General - Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, TR-069, TR-104
- General - Routing Protocol
- RIP, BGP, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR)
- General - Status Indicators
- Active, WAN, DMZ, USB, LTE, 5 GHz, 2.4 GHz, QoS
- General - Wi-Fi Rating
- AC1300
- Miscellaneous - Cables Included
- 2 x aerial extension cable - 1 m
- Miscellaneous - Included Accessories

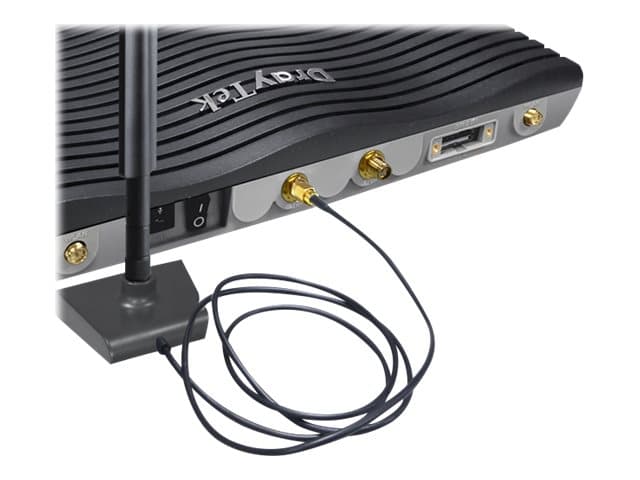

- 2 aerial magnetic extension bases, 2 x WiFi aerials, 2 x LTE aerials
- Miscellaneous - Localisation
- United Kingdom
- Power - Power Device
- External power adapter
- Power - Voltage Required
- AC 230V
