- Basic Specifications - Capacity
- Virtual interfaces (VLANs): 256 ¦ QoS queues: 8 ¦ Total link aggregation groups: 4
- Basic Specifications - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Basic Specifications - Device Type
- Switch - 8 ports - L2+ - Managed
- Basic Specifications - Dimensions (WxDxH)
- 31.9 cm x 20.8 cm x 4.5 cm
- Basic Specifications - EAN
- 4710484742896
- Basic Specifications - Enclosure Type
- Rack-mountable 1U
- Basic Specifications - Features
- Flow control, auto-negotiation, load balancing, VLAN support, IGMP snooping, Syslog support, traffic shaping, E-mail alert, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, DAI, reset button, IPv4 support, LLDP support, Energy Efficient Ethernet, MVR, SPQ, port isolation, CoS, tagged VLAN, GVRP, ONVIF support, DSCP support, Protocol-based VLANs support, IP source guard, layer 2+ switching, Link Aggregation, scheduler, rate limit, AAA, IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, VLAN management, LLDP-MED, Private MIB, Guest VLAN, DoS protection, DSCP based CoS, MAC based VLAN, loopback detection, Unknown Storm Control, 4.1Mbit packet buffer, Address Conflict Detection, OpenVPN client, DSCP based QoS
- Basic Specifications - Jumbo Frame Support
- 9KB
- Basic Specifications - Localisation
- United Kingdom
- Basic Specifications - MAC Address Table Size
- 8K entries
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- VSP2100-K
- Basic Specifications - Model

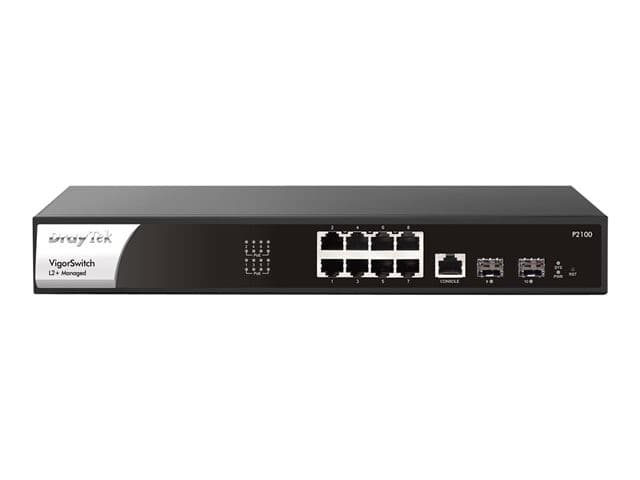

- Draytek VigorSwitch P2100
- Basic Specifications - Performance
- Forwarding performance (64-byte packet size): 14.88 Mpps ¦ Switching capacity: 20 Gbps
- Basic Specifications - PoE Budget
- 140 W
- Basic Specifications - Ports
- 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
- Basic Specifications - Power
- AC 120/230 V
- Basic Specifications - Power Over Ethernet (PoE)
- PoE+
- Basic Specifications - Product Description
- Draytek VigorSwitch P2100 - switch - 8 ports - Managed - rack-mountable
- Basic Specifications - Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2
- Basic Specifications - Routing Protocol
- IGMPv2, static IP routing, IGMPv3, MLDv2, MLD
- Basic Specifications - Subtype
- Gigabit Ethernet
- Basic Specifications - Weight
- 2.61 kg
- Dimensions & Weight - Depth
- 20.8 cm
- Dimensions & Weight - Height
- 4.5 cm
- Dimensions & Weight - Weight
- 2.61 kg
- Dimensions & Weight - Width
- 31.9 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Humidity Range Storage
- 5 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 50 °C
- Environmental Parameters - Max Storage Temperature
- 70 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -20 °C
- Expansion / Connectivity - Interfaces
- 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN SFP ¦ 1 x console RJ-45 management
- General - Authentication Method
- RADIUS, TACACS+, Secure Shell v.2 (SSH2), internal user database
- General - Capacity
- Virtual interfaces (VLANs): 256 ¦ QoS queues: 8 ¦ Total link aggregation groups: 4
- General - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- General - Device Type
- Switch - 8 ports - L2+ - Managed
- General - Enclosure Type
- Desktop, rack-mountable 1U
- General - Features
- Flow control, auto-negotiation, load balancing, VLAN support, IGMP snooping, Syslog support, traffic shaping, E-mail alert, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, DAI, reset button, IPv4 support, LLDP support, Energy Efficient Ethernet, MVR, SPQ, port isolation, CoS, tagged VLAN, GVRP, ONVIF support, DSCP support, Protocol-based VLANs support, IP source guard, layer 2+ switching, Link Aggregation, scheduler, rate limit, AAA, IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, VLAN management, LLDP-MED, Private MIB, Guest VLAN, DoS protection, DSCP based CoS, MAC based VLAN, loopback detection, Unknown Storm Control, 4.1Mbit packet buffer, Address Conflict Detection, OpenVPN client, DSCP based QoS
- General - Jumbo Frame Support
- 9KB
- General - MAC Address Table Size
- 8K entries
- General - Performance
- Forwarding performance (64-byte packet size): 14.88 Mpps ¦ Switching capacity: 20 Gbps
- General - PoE Budget
- 140 W
- General - Ports
- 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
- General - Power Over Ethernet (PoE)
- PoE+
- General - Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2
- General - Routing Protocol
- IGMPv2, static IP routing, IGMPv3, MLDv2, MLD
- General - Subtype
- Gigabit Ethernet
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Cables Included
- 1 x console cable
- Miscellaneous - Compliant Standards
- FCC
- Miscellaneous - Localisation
- United Kingdom
- Miscellaneous - Rack Mounting Kit
- Included
- Power - Power Consumption Operational
- 164.3 Watt
- Power - Power Device
- Internal power supply
- Power - Voltage Required
- AC 120/230 V
