- Basic Specifications - EAN
- 4719331864354
- Basic Specifications - Manufacturer's Part Number
- 125851

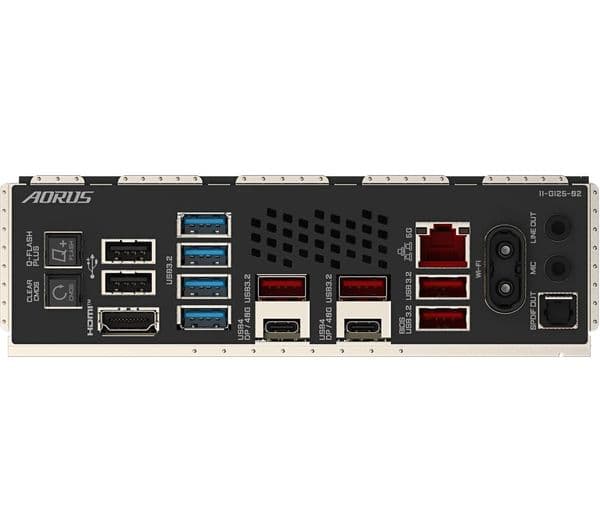

- External connectivity - Audio
- - 3.5 mm jack x 2
- External connectivity - LAN
- Realtek 5GbE LAN chip
- External connectivity - USB
- - USB Type-C x 2- USB 3.2 x 8- USB 2.0 x 2
- External connectivity - Video output
- HDMI x 1

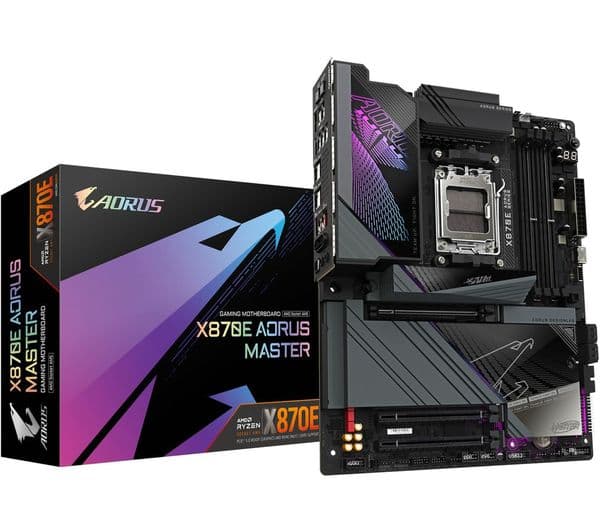

- General - Box contents
- - Gigabyte Aorus Master X870E AM5 Motherboard- 1 x Antenna- DDR Wind Blade x 1- DDR Wind Blade fan extension cable x 1- SATA cables x 2- Noise Detection Cable x 1- Thermistor Cables x 2- Velcro Cable Ties x 2- G Connector x 1- Manual- Quick Installation Guide
- General - Colour
- Black
- General - Dimensions
- 80 x 244 x 305 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 2.56kg
- Internal connectivity - BIOS
- UEFI AMI BIOS
- Internal connectivity - Buttons
- - Power button- Reset button- Q-Flash Plus- Clear CMOS button
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU fan/water cooling pump header x 2
- Internal connectivity - Expansion slots
- - PCI 5.0 (x16) x 1- PCIe 4.0 (x16) x 2- PCIe 3.0 (x16) x 1
- Internal connectivity - Other internal connections
- - RGB LED strip header x 2- TPM header x 1
- Internal connectivity - Power
- - 24-pin EATX x 1- 8-pin ATX x 2
- Internal connectivity - Sensors
- Temperature sensor x 2
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 4
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.2 x 2- USB 2.0 x 2
- Overview - Chipset
- AMD X870E
- Overview - Cooling features
- - Fan cooling - Smart Fan 6- AIO fan control- DDR Wind Blade
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11 or later
- Overview - Processor models supported
- - AMD Ryzen 9000 Series processors- AMD Ryzen 8000 Series processors- AMD Ryzen 7000 Series processors
- Overview - Socket
- AMD AM5
