- Basic Specifications - EAN
- 4719331869540
- Basic Specifications - Manufacturer's Part Number
- 126665

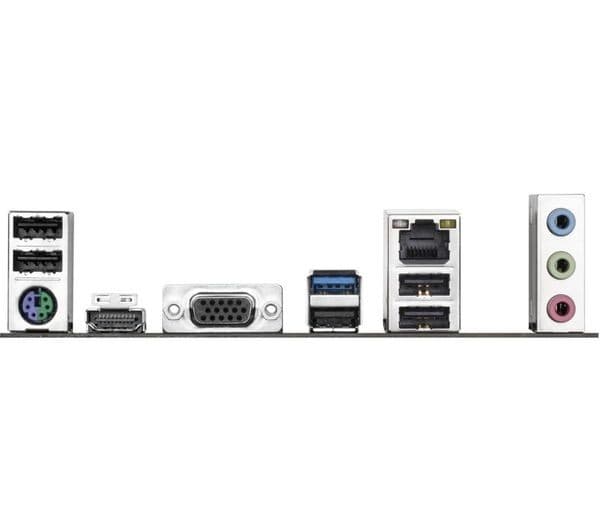

- External connectivity - Audio
- 3.5 mm jack x 3
- External connectivity - LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- External connectivity - Other external connections
- - RJ-45 port- PS/2 keyboard/mouse port
- External connectivity - USB
- - USB 3.2 Gen 1 x 2- USB 2.0 x 7
- External connectivity - Video output
- - HDMI x 1- VGA x 1
- General - Box contents

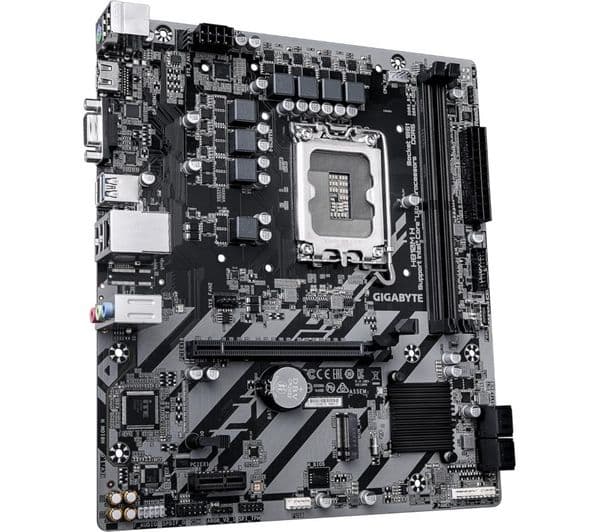

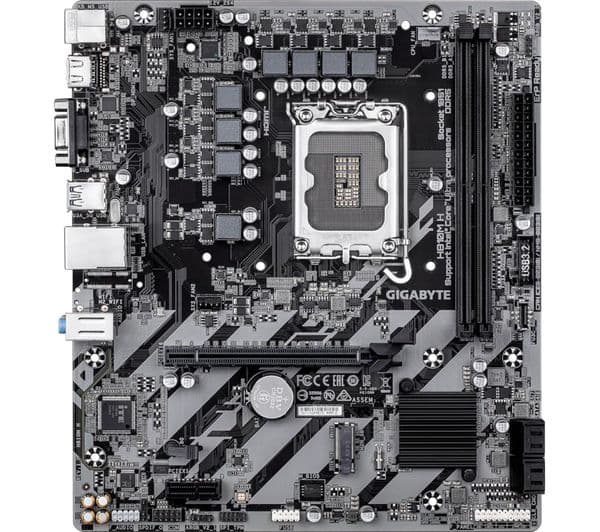

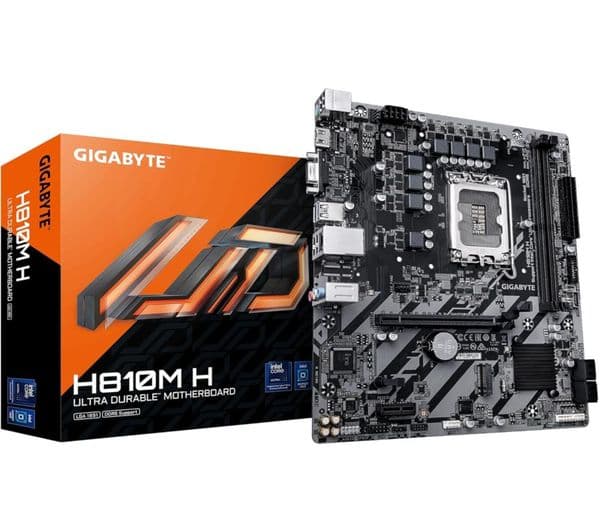

- - Gigabyte H810M H LGA1851 Motherboard- SATA cable x 2- I/O shield- User manual- Quick installation guide
- General - Colour
- Black
- General - Dimensions
- 215 x 244 mm (W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 780 g
- Internal connectivity - BIOS
- - 256 Mbit flash x 1- AMI UEFI BIOS- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Internal connectivity - Buttons
- Clear CMOS jumper x 1
- Internal connectivity - Case
- - Front panel header x 1- Front panel audio header x 1- S/PDIF Out header x 1
- Internal connectivity - Cooling
- - CPU fan header x 1- System fan headers x 2
- Internal connectivity - Expansion slots
- - PCIe 4.0 (x16) x 1 - PCIe 3.0 (x16) x 1
- Internal connectivity - Other internal connections
- - TPM header- USB 3.2 Gen 1 header- USB 2.0/1.1 header- M.2 Socket 3 connector
- Internal connectivity - Power
- - 24-pin ATX main power connector x 1- 8-pin ATX 12V power connector x 1
- Internal connectivity - Sensors
- - Voltage detection- Temperature detection- Fan speed detection- Fan fail warning- Fan speed control
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 1
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.2 Gen 1 x 1- USB 2.0 x 1
- Overview - Chipset
- Intel® H810 Express
- Overview - Cooling features
- - Fan cooling- Liquid cooling
- Overview - Form factor
- microATX
- Overview - Memory slots
- 2 x DIMM (Max RAM: 128 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 10 or later
- Overview - Processor models supported
- Intel® Core™ Ultra processors
- Overview - Socket
- Intel® LGA 1851
