- Basic Specifications - EAN
- 4711377365321
- Basic Specifications - Manufacturer's Part Number
- 127187

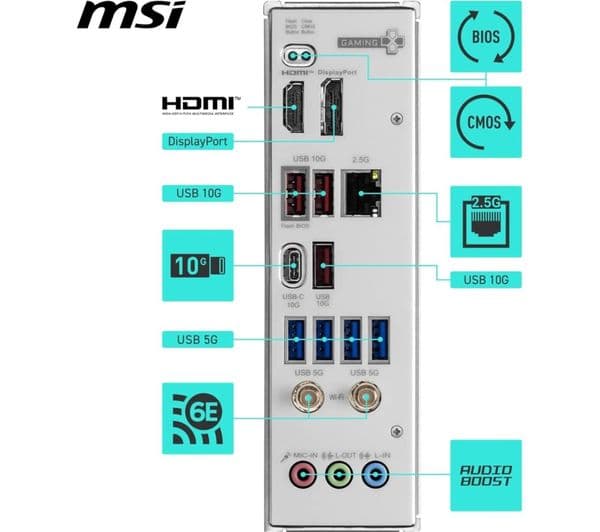

- External connectivity - Audio
- - Realtek ALC897- 7.1-Channel High-Definition audio- 3.5 mm jack
- External connectivity - LAN
- Gigabit Ethernet port x 1
- External connectivity - Other external connections
- - PS/2- CMOS Button- Flash BIOS Button- Wi-Fi 6E- Bluetooth 5.3- Antenna ports x 2- Q-Flash plus button
- External connectivity - USB
- - USB Type-C x 2- USB 3.0 x 5- USB 2.0 x 7
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1

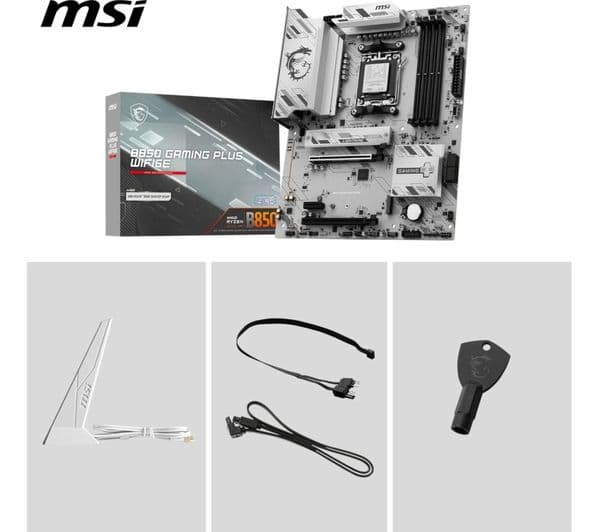

- General - Box contents
- - B850 GAMING PLUS WIFI 6E AM5 Motherboard- EZ Wi-Fi Antenna- 1 to 2 EZ Conn-Cable- SATA Cable- EZ M.2 Clip II Remover- Cable sticker- Quick installation guide
- General - Colour
- White
- General - Dimensions
- 70 x 268 x 342 mm (W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1.57 kg
- Internal connectivity - BIOS
- UEFI BIOS with Flash BIOS support
- Internal connectivity - Buttons
- - BIOS FlashBack- Clear CMOS
- Internal connectivity - Case
- - Front Panel (JFP) x 2- Chassis Intrusion (JCI) x 1 - Front Audio (JAUD) x 1- Com Port (JCOM) x 1
- Internal connectivity - Cooling
- - CPU fan x 1- CPU/water x 1- System fan x 3- Sys/water x 1

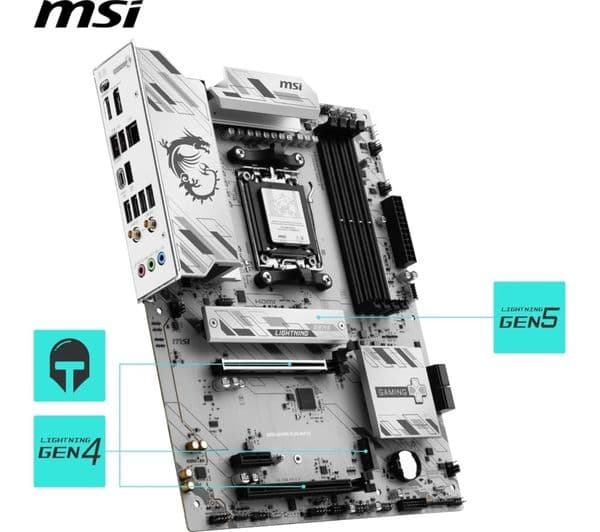

- Internal connectivity - Expansion slots
- - PCIe (x16) x 1 - PCIe (x1) x 2
- Internal connectivity - Other internal connections
- - EZ Conn-header (JAF_1) x 1- Tuning Controller connector (JDASH) x 1- Addressable V2 RGB LED connector (JARGB_V2) x 3- RGB LED connector (JRGB) x 1- TPM 2.0 header x 1
- Internal connectivity - Power
- - 24-pin ATX Power x 1- 8-pin CPU Power x 1- 4-pin ATX x 1
- Internal connectivity - Sensors
- - EZ Debug LED x 4- EZ Memory Detection LED x 1
- Internal connectivity - Storage slots
- - SATA x 4- M.2 x 3
- Internal connectivity - USB
- - USB 2.0 ports x 4- USB Type-A (5Gbps) ports x 2- USB Type-C (10Gbps) ports x 1
- Overview - Chipset
- AMD B850
- Overview - Cooling features
- - Fan cooling- Liquid cooling- Water pump support
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DDR5 (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Multi-GPU support
- No
- Overview - Operating systems supported
- Windows 11 (64-bit)
- Overview - Processor models supported
- AMD Ryzen 9000 / 8000 / 7000 Series desktop processors
- Overview - Socket
- AMD AM5
