- Basic Specifications - EAN
- 4711377365284
- Basic Specifications - Manufacturer's Part Number
- 127184
- External connectivity - Audio
- - Audio connectors- S/PDIF-Out
- External connectivity - LAN
- Gigabit Ethernet port x 1
- External connectivity - Other external connections
- - Wi-Fi 7- Bluetooth 5.4- Flash BIOS button- Clear CMOS button
- External connectivity - USB
- - USB Type-C x 2- USB 3.0 x 5- USB 2.0 x 7
- External connectivity - Video output
- DisplayPort x 1
- General - Box contents

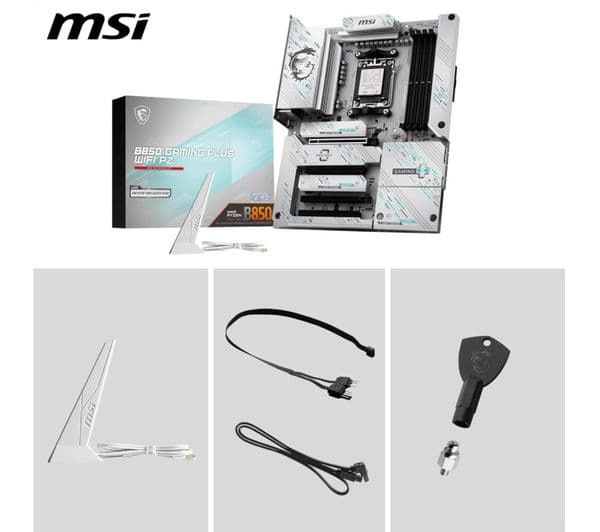

- - B850 B850 GAMING PLUS WIFI PZ AM5 Motherboard- Quick Installation Guide- EZ Wi-Fi Antenna- SATA Cable- EZ M.2 Clip II x 3- EZ M.2 Clip II Remover- 1 to 2 EZ Conn-Cable
- General - Colour
- White
- General - Dimensions
- 77 x 282 x 348 mm (W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1.73 kg
- Internal connectivity - BIOS
- UEFI BIOS
- Internal connectivity - Buttons
- - Clear CMOS- Flash BIOS
- Internal connectivity - Case
- - Power LED- HDD LED- Front panel x 2- Chassis Intrusion
- Internal connectivity - Cooling
- - CPU fan x 1- Combo Pump / System fan x 1- System fan x 4
- Internal connectivity - Expansion slots
- - PCIe (x16) x 1 - PCIe (x4) x 1- PCIe (x1) x 2
- Internal connectivity - Other internal connections
- - RGB LED header x 1- Addressable RGB V2 headers x 3- TPM header x 1- COM header x 1- Front Audio- EZ Connector- JDASH
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin CPU x 2- 8-pin PCIe x 1
- Internal connectivity - Sensors
- - Fan speed sensor- Chassis intrusion sensor
- Internal connectivity - Storage slots
- - SATA x 4- M.2 x 3
- Internal connectivity - USB
- - USB 2.0 ports x 8- USB 3.0 ports x 7- USB Type-C ports x 3
- Overview - Chipset
- AMD B850
- Overview - Cooling features
- Fan cooling - CPU fan x 1 - Pump / System fan combo x 1 - System fan x 4
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DDR5 (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Multi-GPU support
- No
- Overview - Operating systems supported
- Windows 11 (64-bit)
- Overview - Processor models supported
- AMD Ryzen 9000 / 8000 / 7000 Series desktop processors
- Overview - Socket
- AMD AM5
