- Basic Specifications - EAN
- 4711377286046
- Basic Specifications - Manufacturer's Part Number
- 126158

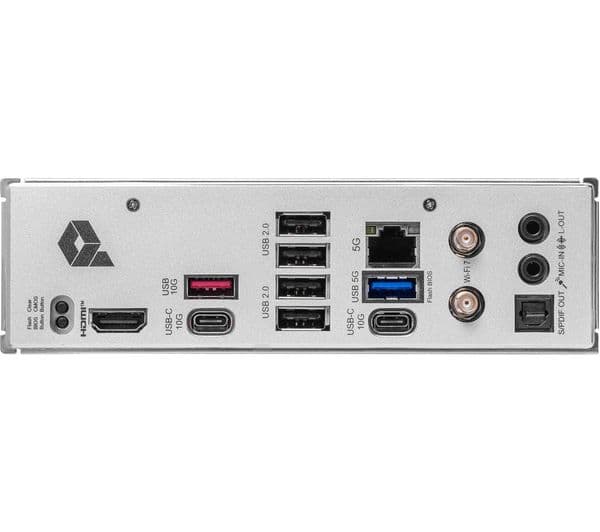

- External connectivity - Audio
- - Realtek ALC897- 7.1-Channel High-Definition audio
- External connectivity - LAN
- Realtek® 8126VB 5G LAN
- External connectivity - USB
- - USB Type-C x 2- USB 2.0 x 4
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents
- - MSI PRO B850-P WIFI AM5 Motherboard- EZ Wi-Fi Antenna- 1 to 2 EZ Conn-Cable- SATA Cable- EZ M.2 Clip II- EZ M.2 Clip II Remover- Quick installation guide
- General - Colour
- Black
- General - Dimensions
- 70 x 243 x 304 mm (W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1710 g
- Internal connectivity - Buttons
- - BIOS FlashBack x 1- Clear CMOS x 1
- Internal connectivity - Cooling
- - CPU fan x 1- System fan x 4- Pump fan 4-pin x 1
- Internal connectivity - Expansion slots
- - PCI Express 3.0 x 2- PCI Express 4.0 x 1- PCI Express 5.0 x 1
- Internal connectivity - Other internal connections
- - Power Connector (ATX_PWR) x 1- Power Connecto (CPU_PWR) x 2- Power Connector (PCIE_PWR 8pin) x 1- CPU Fan x 1- Combo Fan (Pump_Sys Fan) x 1- System fan x 4- EZ Conn-header (JAF_1) x 1- Front Panel (JFP) x 2- Chassis Intrusion (JCI) x 1- Front Audio (JAUD) x 1- Com Port (JCOM) x 1- Tuning Controller connector (JDASH) x 1- Addressable V2 RGB LED connector (JARGB_V2) x 3- RGB LED connector (JRGB) x 1- TPM pin header (Support TPM 2.0) x 1
- Internal connectivity - Power
- - 24-pin ATX Power x 1- 8-pin ATX Power x 2
- Internal connectivity - Storage slots
- - PCIe Gen 5.0 x 4- PCIe Gen 4.0 x 4- PCIe Gen 4.0 x 2
- Internal connectivity - USB
- - USB 2.0 x 4- USB Type A x 4- USB Type C x 1
- Overview - Chipset
- AMD B850
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DDR5 (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Multi-GPU support
- No
- Overview - Operating systems supported
- Windows 11 (64-bit)
- Overview - Processor models supported
- AMD Ryzen™ 9000 / 8000 / 7000 Series desktop processors
- Overview - Socket
- AMD AM5
