- Basic Specifications - EAN
- 4711377350181
- Basic Specifications - Manufacturer's Part Number
- 127186

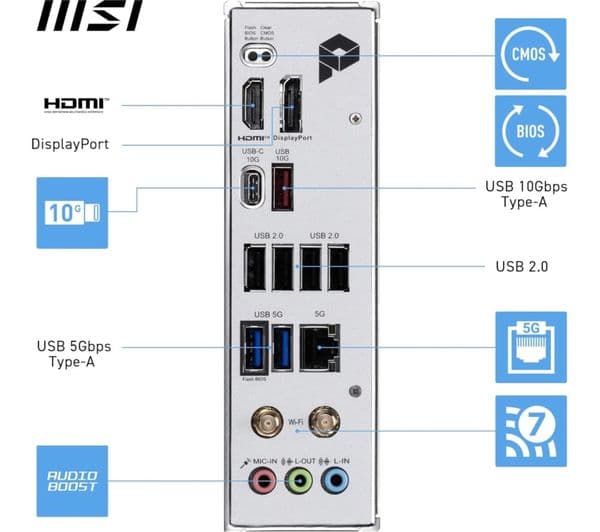

- External connectivity - Audio
- - Realtek ALC897- 7.1-Channel High-Definition audio
- External connectivity - LAN
- Realtek 8126VB 5G LAN
- External connectivity - Other external connections
- - Wi-Fi 7 (2.9Gbps)- Bluetooth 5.4- Flash BIOS Button
- External connectivity - USB
- - USB Type-C x 2- USB 2.0 x 8- USB 3.0 x 6
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

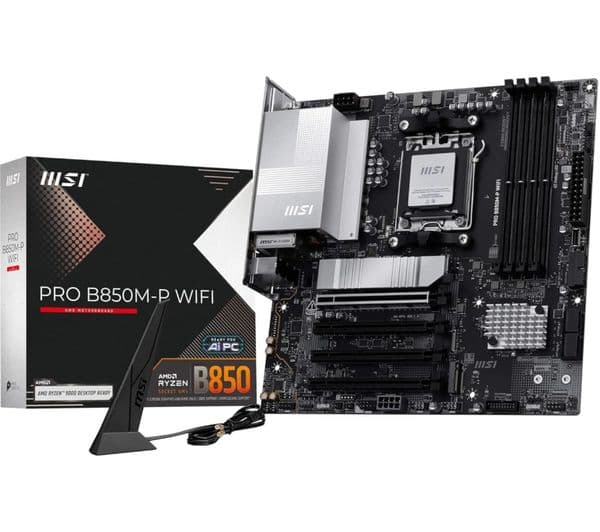

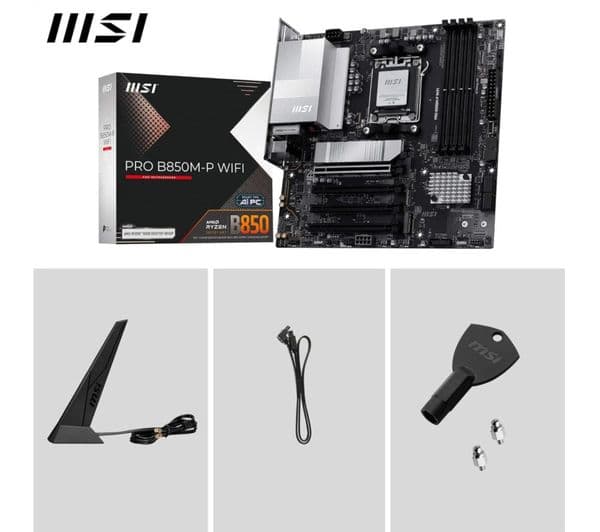

- - MSI PRO B850M-P WIFI AM5 Motherboard- EZ Wi-Fi Antenna- M.2 Screw Standoff Sets x 2- SATA Cable- EZ M.2 Clip II- EZ M.2 Clip II Remover- Quick installation guide
- General - Colour
- Black
- General - Dimensions
- 70 x 272 x 280 mm (W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 890 g
- Internal connectivity - BIOS
- AMI BIOS
- Internal connectivity - Buttons
- - Flash BIOS x 1- Clear CMOS x 1
- Internal connectivity - Case
- - Power LED- HDD LED- Reset- Power Switch
- Internal connectivity - Cooling
- - CPU fan x 1- System fan x 3- Combo fan x 1
- Internal connectivity - Expansion slots
- - PCIe (x16) x 4 - PCIe Gen 5.0 (x16) x 1- PCIe Gen 3.0 (x1) x 3
- Internal connectivity - Other internal connections
- - Power Connector (ATX_PWR) x 1- Power Connecto (CPU_PWR) x 1- Power Connector (PCIE_PWR 8pin) x 1- CPU Fan x 1- Combo Fan (Pump_Sys Fan) x 1- System fan x 3- Front Panel (JFP) x 2- Chassis Intrusion (JCI) x 1- Front Audio (JAUD) x 1- Com Port (JCOM) x 1- Tuning Controller connector (JDASH) x 1- Addressable V2 RGB LED connector (JARGB_V2) x 3- RGB LED connector (JRGB) x 1- TPM pin header (Support TPM 2.0) x 1
- Internal connectivity - Power
- - 24-pin ATX Power x 1- 8-pin CPU Power x 2- PCIe_PWR 8-pin x1
- Internal connectivity - Sensors
- - Thermal sensor- Fan speed sensor
- Internal connectivity - Storage slots
- - SATA x 4- M.2 x 3
- Internal connectivity - USB
- - USB 2.0 ports x 4- USB Type-A (5Gbps) x 4- USB Type-C (10Gbps) x 1
- Overview - Chipset
- AMD B850
- Overview - Cooling features
- - Fan cooling- Liquid cooling
- Overview - Form factor
- microATX
- Overview - Memory slots
- 4 x DDR5 (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Multi-GPU support
- No
- Overview - Operating systems supported
- Windows 11 (64-bit)
- Overview - Processor models supported
- AMD Ryzen 9000 / 8000 / 7000 Series desktop processors
- Overview - Socket
- AMD AM5
