- Basic Specifications - Capacity
- Buffer memory (kBytes): 192 ¦ VLANs supported: 64 ¦ Multicast groups: 128
- Basic Specifications - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Basic Specifications - Device Type
- Switch - 16 ports - Managed
- Basic Specifications - Dimensions (WxDxH)
- 28.6 cm x 10.2 cm x 2.7 cm
- Basic Specifications - EAN
- 0606449154412
- Basic Specifications - Features
- Flow control, VLAN support, IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, full duplex mode, QoS, fanless, DHCP client, loop prevention, CoS, ToS, DSCP support, cable test, Link Aggregation, rate limit, DoS protection, EEE, WRR, loopback detection, VLAN Tagging, port-based VLAN, port trunking, block unknown multicast, password protection, PoE scheduling, uninterrupted PoE
- Basic Specifications - Jumbo Frame Support
- 10000 bytes
- Basic Specifications - MAC Address Table Size
- 4K entries
- Basic Specifications - Manufacturer Warranty
- 5-year warranty
- Basic Specifications - Manufacturer's Part Number
- GS316EPP-100UKS
- Basic Specifications - Model

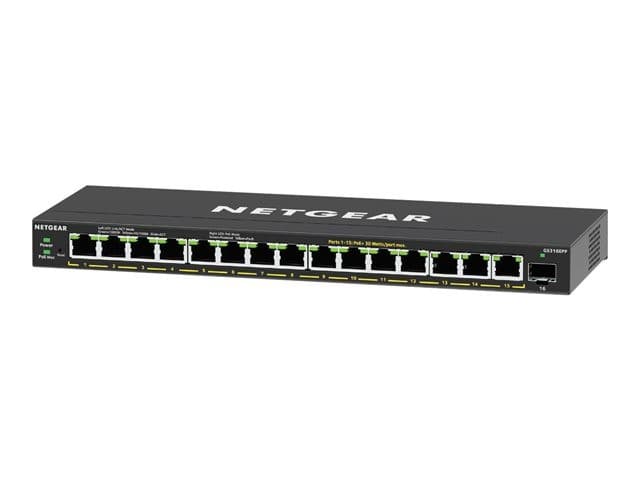

- NETGEAR Plus GS316EPP
- Basic Specifications - Performance
- Bandwidth: 28 Gbps
- Basic Specifications - PoE Budget
- 231 W
- Basic Specifications - Ports
- 15 x 10/100/1000 (PoE+) + 1 x SFP
- Basic Specifications - Power Over Ethernet (PoE)
- PoE+
- Basic Specifications - Product Description
- NETGEAR Plus GS316EPP - switch - 16 ports - Managed
- Basic Specifications - Remote Management Protocol
- HTTP, DHCP
- Basic Specifications - Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Basic Specifications - Subtype
- Gigabit Ethernet
- Basic Specifications - Weight
- 883 g
- Dimensions & Weight - Depth
- 10.2 cm
- Dimensions & Weight - Height
- 2.7 cm
- Dimensions & Weight - Weight
- 883 g
- Dimensions & Weight - Width
- 28.6 cm
- Environmental Parameters - Humidity Range Operating
- 90% (non-condensing)
- Environmental Parameters - Humidity Range Storage
- 95% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Max Storage Temperature
- 70 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -20 °C
- Expansion / Connectivity - Interfaces
- 15 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-X SFP
- General - Capacity
- Buffer memory (kBytes): 192 ¦ VLANs supported: 64 ¦ Multicast groups: 128
- General - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- General - Device Type
- Switch - 16 ports - Managed
- General - Enclosure Type
- Desktop, wall-mountable
- General - Features
- Flow control, VLAN support, IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, full duplex mode, QoS, fanless, DHCP client, loop prevention, CoS, ToS, DSCP support, cable test, Link Aggregation, rate limit, DoS protection, EEE, WRR, loopback detection, VLAN Tagging, port-based VLAN, port trunking, block unknown multicast, password protection, PoE scheduling, uninterrupted PoE
- General - Jumbo Frame Support
- 10000 bytes
- General - MAC Address Table Size
- 4K entries
- General - Performance
- Bandwidth: 28 Gbps
- General - PoE Budget
- 231 W
- General - Ports
- 15 x 10/100/1000 (PoE+) + 1 x SFP
- General - Power Over Ethernet (PoE)
- PoE+
- General - Remote Management Protocol
- HTTP, DHCP
- General - Routing Protocol
- IGMPv2, IGMP, IGMPv3
- General - Status Indicators
- Power, system, PoE, link/activity/speed, PoE max
- General - Subtype
- Gigabit Ethernet
- Manufacturer Warranty - Service & Support
- Limited warranty - 5 years ¦ Limited warranty - power supply - 2 years ¦ Limited warranty - phone consulting - 90 days with product registration
- Miscellaneous - Compliant Standards
- CSA, VCCI, BSMI, EN55024, KC, FCC Part 15 Class B, ACMA, EN 55032
- Miscellaneous - Included Accessories
- Rubber feet, wall mounting kit
- Miscellaneous - MTBF
- 570,435 hours
- Power - Power Device
- External power adapter
