- Basic Specifications - Cabling Type
- Ethernet 10GBase-T
- Basic Specifications - Colour
- Black
- Basic Specifications - Compliant Standards
- IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3az
- Basic Specifications - Data Link Protocol
- 100Mb LAN, 1GbE, 10GbE, 5GbE, 2.5GbE
- Basic Specifications - Device Type
- Network adapter
- Basic Specifications - Dimensions (WxDxH)
- 1.8 cm x 15 cm x 12 cm
- Basic Specifications - EAN
- 0065030879538
- Basic Specifications - Form Factor
- Plug-in card
- Basic Specifications - Interface (Bus) Type
- PCI Express 3.0 x4
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- ST10GPEXNDPI
- Basic Specifications - Model

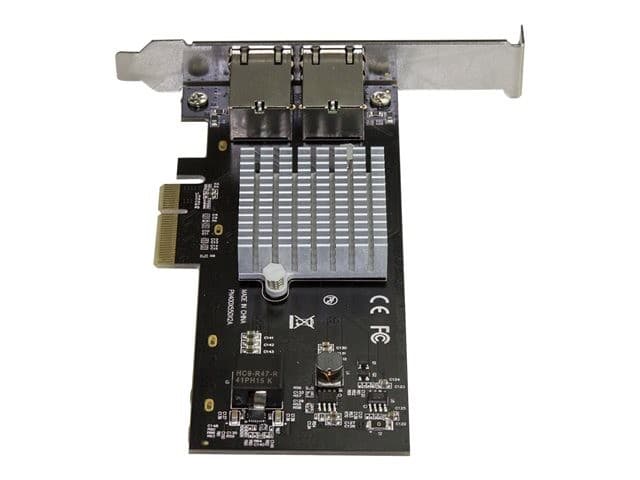

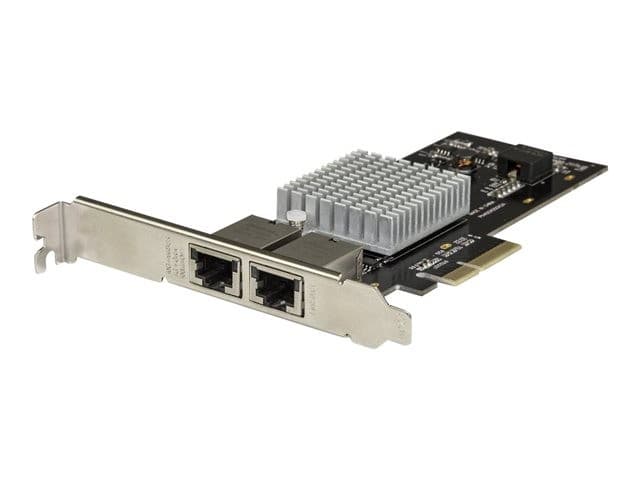

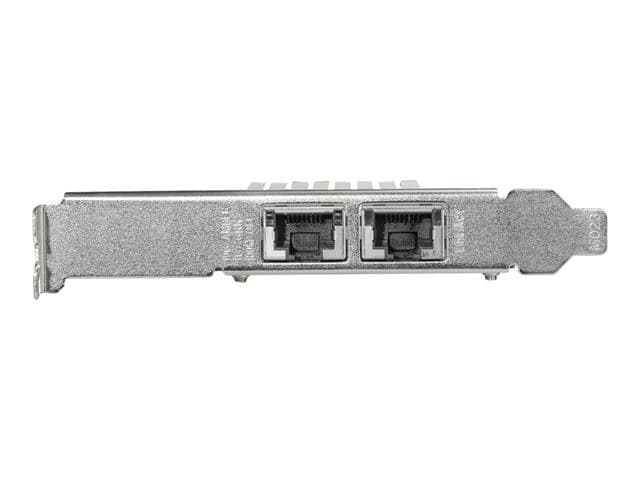

- StarTech.com Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T PCI Express 10GbE Multi Gigabit Ethernet 5 Speed NIC 2port
- Basic Specifications - Network / Transport Protocol
- TCP/IP, UDP/IP, iSCSI
- Basic Specifications - PCI Specification Revision
- PCIe 3.0
- Basic Specifications - Ports
- 10Gb Ethernet x 2
- Basic Specifications - Processor
- Intel
- Basic Specifications - Product Description
- StarTech.com Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T PCI Express 10GbE Multi Gigabit Ethernet 5 Speed NIC 2port - network adapter - PCIe 3.0 x4 - 10Gb Ethernet x 2
- Basic Specifications - System Requirements
- Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2016 (64-bit), Linux 3.x - 4.11 LTS versions, Microsoft Windows Server 2019 (64-bit)
- Basic Specifications - Weight
- 215 g
- Dimensions & Weight - Depth
- 15 cm
- Dimensions & Weight - Height
- 12 cm
- Dimensions & Weight - Weight
- 215 g
- Dimensions & Weight - Width
- 1.8 cm
- Environmental Parameters - Humidity Range Operating
- 20 - 80%
- Environmental Parameters - Max Operating Temperature
- 50 °C
- Environmental Parameters - Min Operating Temperature
- 5 °C
- Expansion / Connectivity - Interfaces
- 2 x 10GBase-T - RJ-45
- General - Device Type
- Network adapter
- General - Form Factor
- Plug-in card - low profile
- General - Interface (Bus) Type
- PCI Express 3.0 x4
- General - PCI Specification Revision
- PCIe 3.0
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Colour
- Black
- Miscellaneous - Included Accessories
- Low-profile bracket
- Networking - Cabling Type
- Ethernet 10GBase-T
- Networking - Compliant Standards
- IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3az
- Networking - Connectivity Technology
- Wired
- Networking - Data Link Protocol
- Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
- Networking - Features
- Auto-uplink (auto MDI/MDI-X), full duplex mode, PXE support, tagged VLAN, 9 KB Jumbo Frame
- Networking - Network / Transport Protocol
- TCP/IP, UDP/IP, iSCSI
- Networking - Ports
- 10Gb Ethernet x 2
- Networking - Status Indicators
- Link/activity/speed
- Processor / Memory - Processor
- Intel
- Software / System Requirements - OS Required
- Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2016 (64-bit), Linux 3.x - 4.11 LTS versions, Microsoft Windows Server 2019 (64-bit)
