- Basic Specifications - Device Type
- NAS server
- Basic Specifications - Dimensions (WxDxH)
- 10 cm x 22.55 cm x 16.5 cm
- Basic Specifications - EAN
- 4711174724765
- Basic Specifications - Host Connectivity
- Gigabit Ethernet
- Basic Specifications - IP Cameras Supported
- 12
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- DS223J
- Basic Specifications - Max Supported Capacity
- 108 TB
- Basic Specifications - Model

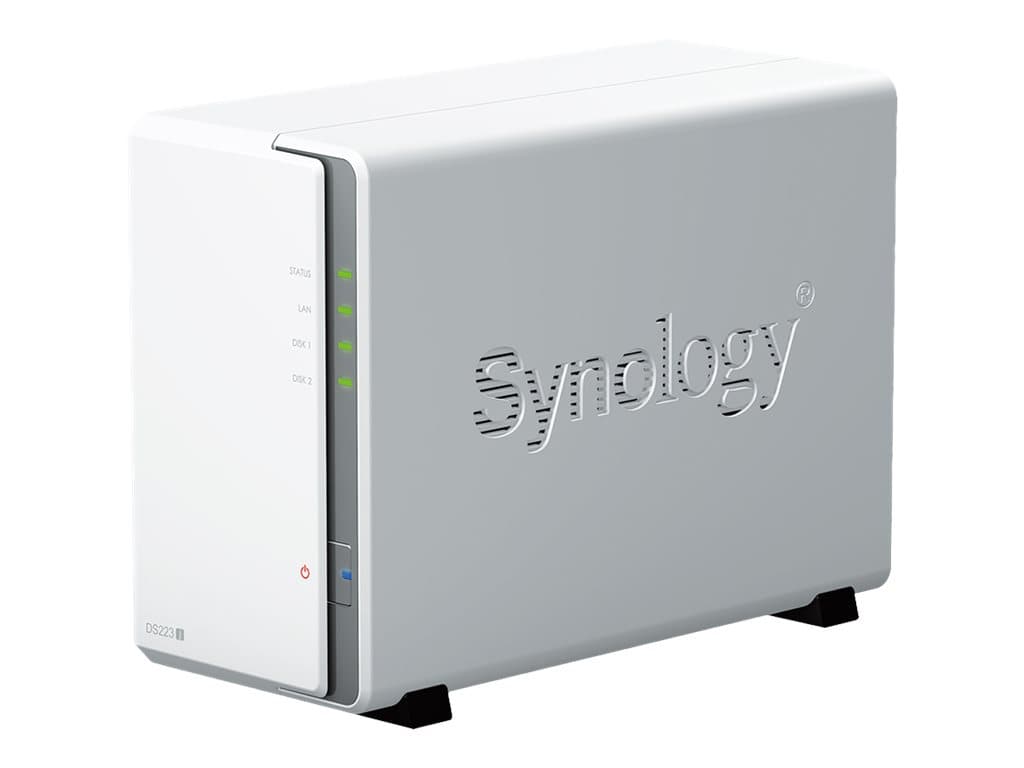

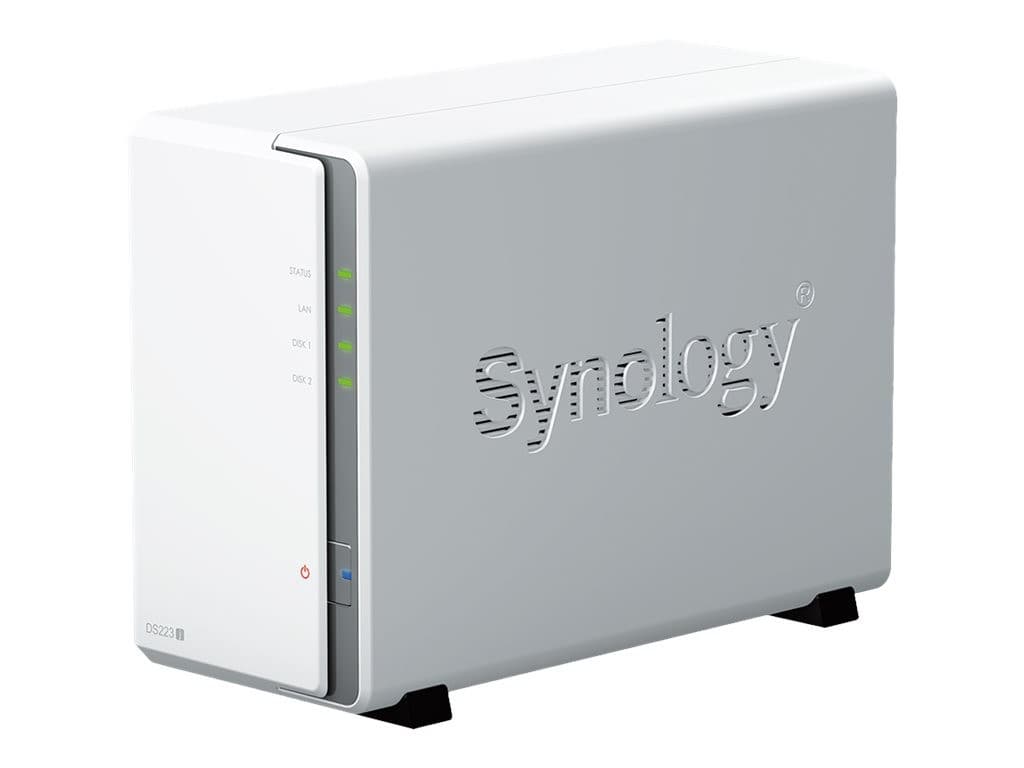

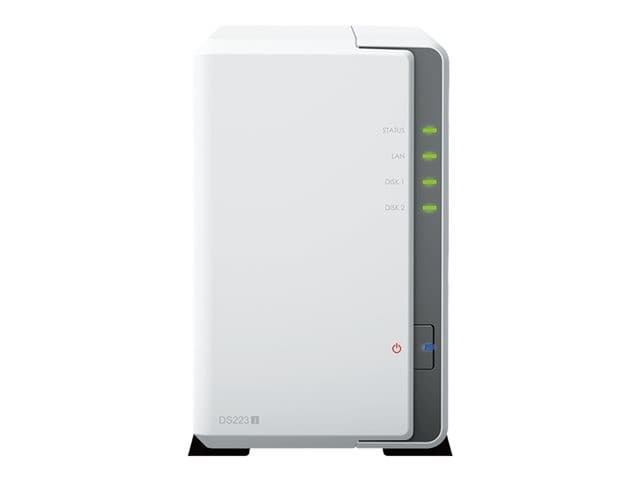

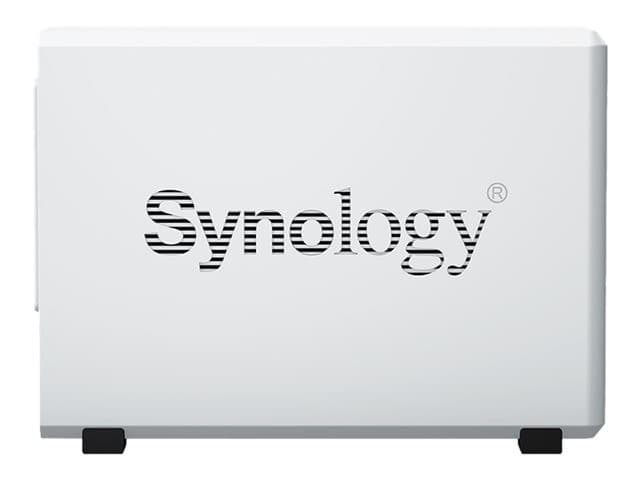

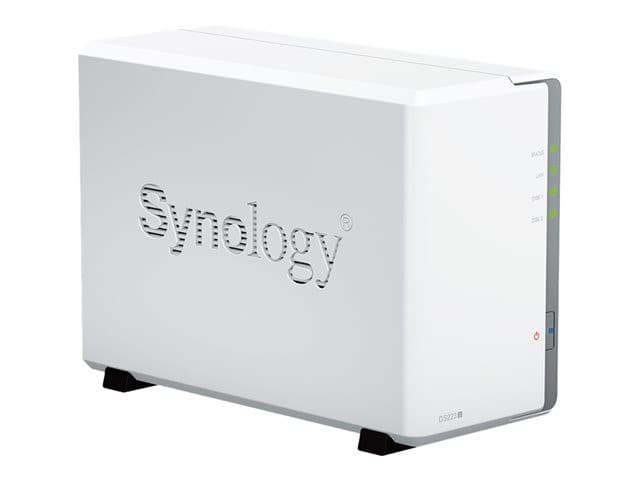

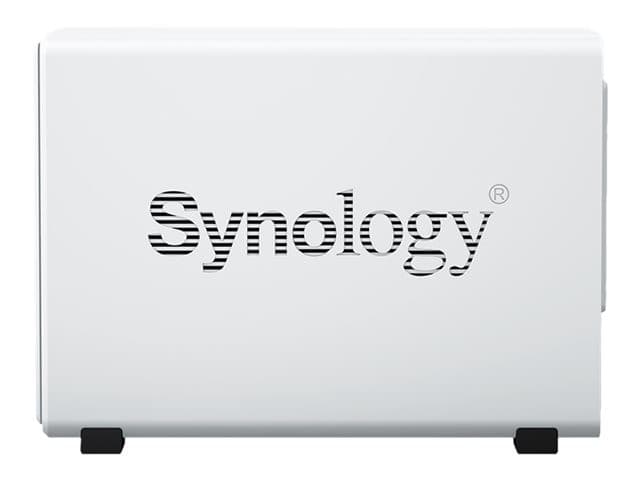

- Synology Disk Station DS223J
- Basic Specifications - Networking
- 10Mb LAN, 100Mb LAN, 1GbE
- Basic Specifications - Performance
- Maximum volume size: 108 TB ¦ Maximum number of volume: 64 ¦ Maximum concurrent connections: 200 ¦ Local user account: 1024 ¦ Local group account: 256 ¦ Maximum number of shared folder: 256 ¦ Maximum number of shared folders syncing tasks: 4 ¦ Hybrid share folder number: 5 ¦ Syslog: 400 events per second
- Basic Specifications - Power
- AC 100-240 V (50/60 Hz)
- Basic Specifications - Processor
- 1 x Realtek Semiconductor RTD1619B 1.7 GHz (Quad-Core)
- Basic Specifications - Product Description
- Synology Disk Station DS223J - NAS server
- Basic Specifications - RAM
- 1 GB
- Basic Specifications - Storage Controller
- RAID SATA 6Gb/s RAID 0, 1, JBOD
- Basic Specifications - Weight
- 880 g ()
- Environmental Parameters - Humidity Range Operating
- 5 - 95% RH
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Sound Emission
- 18.2 dBA
- Expansion / Connectivity - Expansion Bays
- 2 (total) / 2 (free) x hot-swap - 2.5" / 3.5"

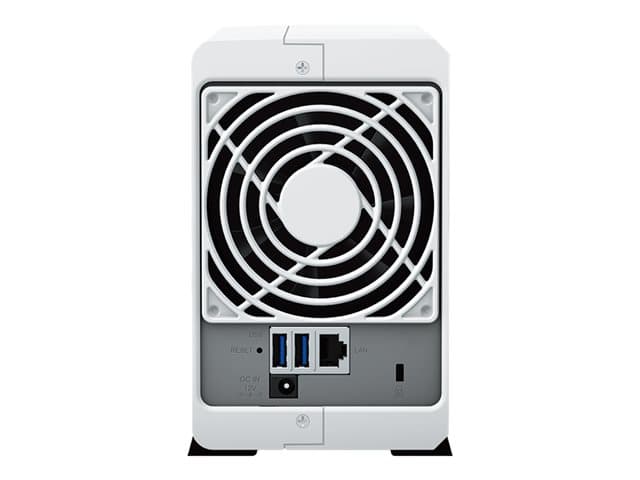

- Expansion / Connectivity - Interfaces
- 3 x USB 3.2 Gen 1 - Type A ¦ 1 x Ethernet 1000Base-T - RJ-45
- General - Depth
- 22.55 cm
- General - Device Type
- NAS server
- General - Height
- 16.5 cm
- General - Host Connectivity
- Gigabit Ethernet
- General - Max Supported Capacity
- 108 TB
- General - Weight
- 880 g ()
- General - Width
- 10 cm
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Cables Included
- 1 x network cable
- Miscellaneous - Compliant Standards
- FCC, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, RoHS
- Miscellaneous - Features
- 92mm cooling fan
- Miscellaneous - Included Accessories
- Accessory pack, power cable
- Networking - Compliant Standards
- DLNA CERTIFIED
- Networking - Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Networking - Features
- Hardware encryption, USB One Touch Copy, Btrfs, EXT4 file system, WOL, WOW, SSD trim, ACL support, NFS Kerberos authentication, VPN Server, cloud sync
- Networking - Network / Transport Protocol
- SMB, NFS, FTP, CIFS, SMB v2, SMB v3, iSCSI, HTTP, HTTPs
- Networking - Network Services Compatibility
- Apple File Protocol (AFP), Server Message Block (SMB), Network File System (NFS), FTP, Web-based Distributed Authoring and Versioning (WebDAV), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1), Calendaring Extensions to WebDAV (CalDAV), HTTP, HTTPS
- Networking - Performance
- Maximum volume size: 108 TB ¦ Maximum number of volume: 64 ¦ Maximum concurrent connections: 200 ¦ Local user account: 1024 ¦ Local group account: 256 ¦ Maximum number of shared folder: 256 ¦ Maximum number of shared folders syncing tasks: 4 ¦ Hybrid share folder number: 5 ¦ Syslog: 400 events per second
- Networking - Remote Management Protocol
- HTTP, HTTPS, SNMP, LDAP
- Power - Power Consumption Operational
- 16.31 Watt
- Power - Power Consumption Stand by
- 4 Watt
- Power - Power Device
- External power adapter
- Power - Power Provided
- 60 Watt
- Power - Voltage Required
- AC 100-240 V (50/60 Hz)
- Processor / Memory - Max Supported Qty
- 1
- Processor / Memory - Number of Cores
- Quad-Core
- Processor / Memory - Processors Installed
- 1 x Realtek Semiconductor RTD1619B 1.7 GHz
- Processor / Memory - RAM
- 1 GB DDR4
- Security DVR - Compression Format
- H.264, H.265
- Security DVR - Image Resolution
- 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160
- Security DVR - IP Cameras Supported
- 12
- Storage Controller - Interface Type
- SATA 6Gb/s
- Storage Controller - RAID Level
- RAID 0, RAID 1, JBOD
- Storage Controller - Type
- RAID
