- Basic Specifications - Compression Format
- H.265+, H.265, H.264+, H.264
- Basic Specifications - Device Type
- NVR - 8 channels - networked - rack-mountable
- Basic Specifications - Dimensions (WxDxH)
- 24.62 cm x 14.82 cm x 4.26 cm
- Basic Specifications - EAN
- 6935364072346
- Basic Specifications - Hard Drive(s) Supported
- Quantity: 1 - total capacity: 10 TB
- Basic Specifications - Image Resolution
- 1920x1080, 1280x1024, 1280x720, 1440x900, 1680x1024
- Basic Specifications - Manufacturer's Part Number
- VIGI NVR1008H
- Basic Specifications - Model
- TP-Link VIGI NVR1008H
- Basic Specifications - Product Description

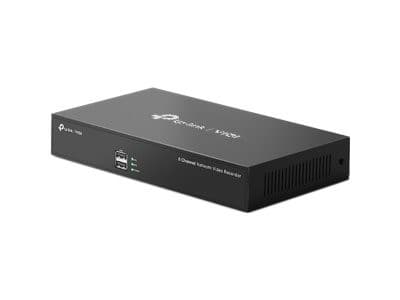

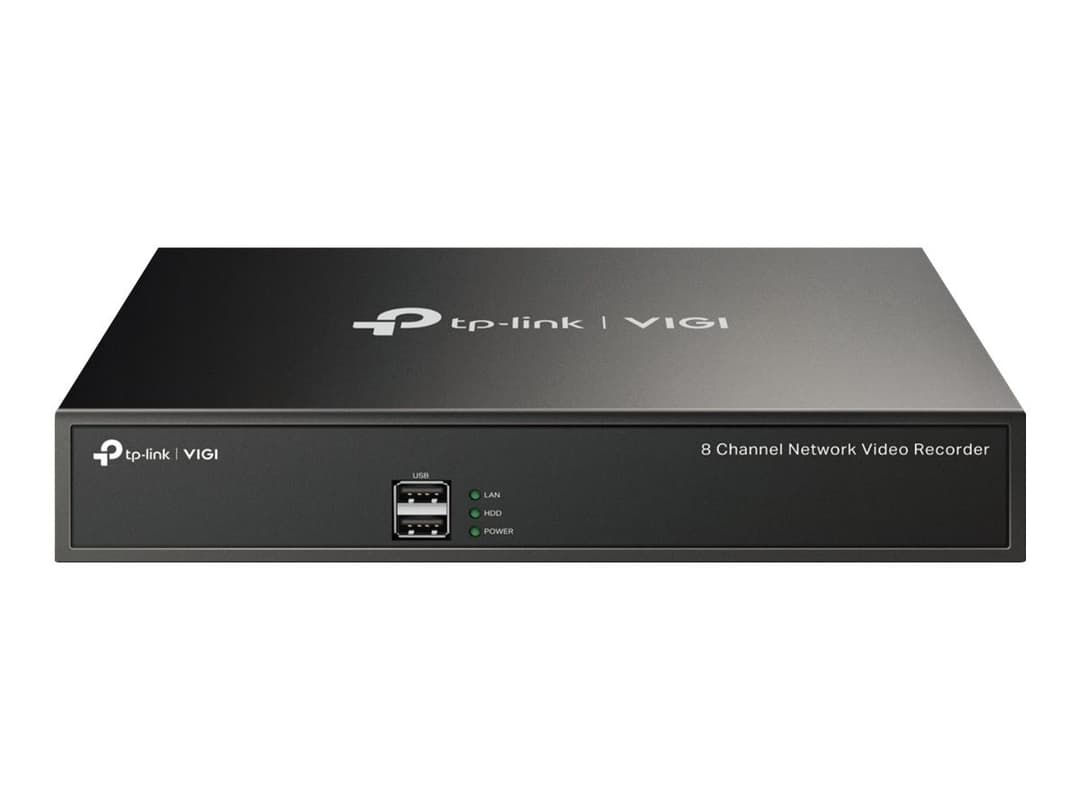

- TP-Link VIGI NVR1008H - standalone NVR - 8 channels
- Basic Specifications - Voltage
- 12 V
- Basic Specifications - Weight
- 578.5 g

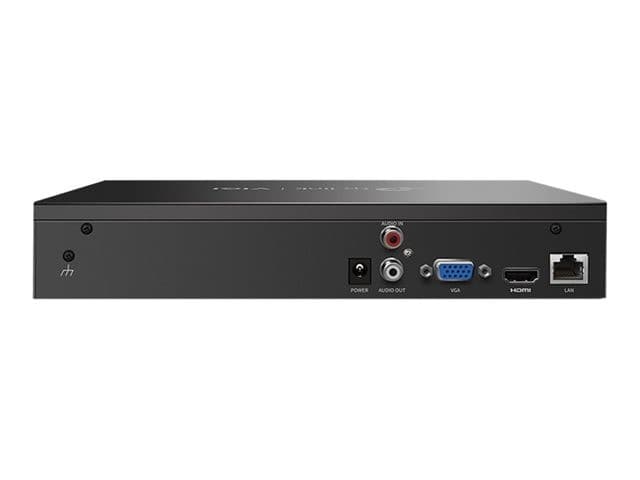

- Connections - Audio Input Ports
- RCA x 1
- Connections - Audio Output Ports
- RCA x 1
- Connections - Network Port
- 10/100Base-T
- Connections - Other Ports
- USB 2.0 x 2
- Connections - Video Input Ports
- RJ-45 x 1
- Connections - Video Output Ports
- HDMI x 1, VGA x 1
- Dimensions & Weight - Depth
- 14.82 cm
- Dimensions & Weight - Height
- 4.26 cm
- Dimensions & Weight - Weight
- 578.5 g
- Dimensions & Weight - Width
- 24.62 cm
- Environmental Parameters - Max Operating Temperature
- 55 °C
- Environmental Parameters - Min Operating Temperature
- -10 °C
- General - Compliant Standards
- FCC Part 15
- General - Compression Format
- H.265+, H.265, H.264+, H.264
- General - Device Type
- NVR - rack-mountable
- General - Image Resolution
- 1920x1080, 1280x1024, 1280x720, 1440x900, 1680x1024
- General - Video Channels
- 8
- Hard Drive - Interface
- Serial ATA
- Hard Drive - Quantity Supported
- 1
- Hard Drive - Removable
- Yes
- Hard Drive - Supported Max Total Capacity
- 10 TB
- Networking - Features
- ONVIF support
- Networking - Network Interfaces
- Ethernet 10Base-T/100Base-TX
- Networking - Supported Protocols
- UPnP, NTP, DNS, DHCP, TCP/IP
- Power - Power Consumption
- 4.25 Watt
- Power - Power Consumption Details
- Without HDD
- Power - Voltage
- 12 V
- Security DVR - Features
- 80 Mbps Incoming Bandwidth, 60 Mbps Outgoing Bandwidth
- Security DVR - Networked
- Yes
- Video Server - Features
- Two-way audio support
