- Basic Specifications - EAN
- 4711636007856
- Basic Specifications - Manufacturer's Part Number
- 126851

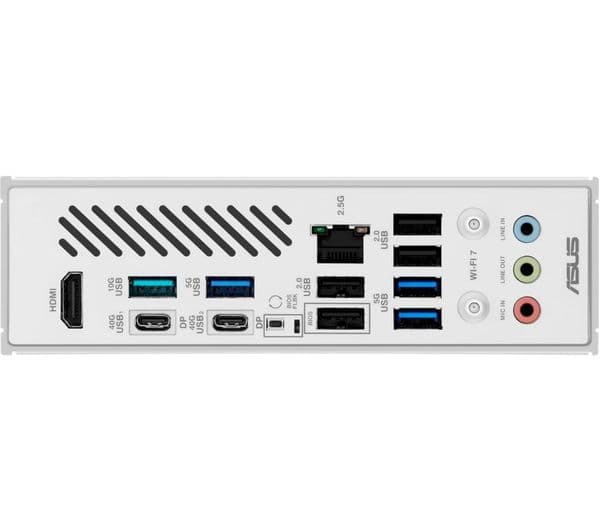

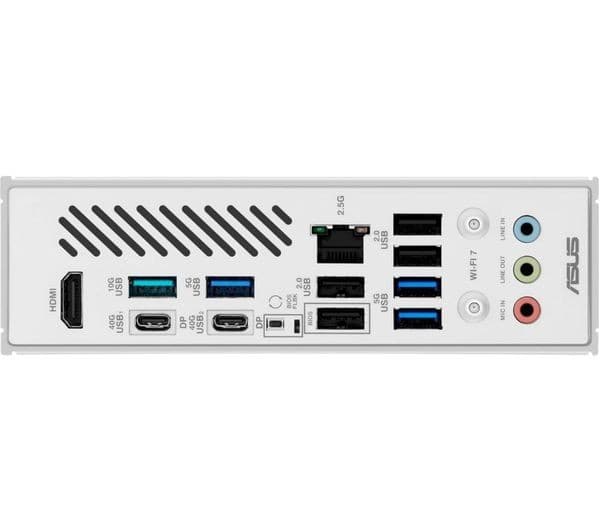

- External connectivity - Audio
- Audio jacks x 3
- External connectivity - LAN
- Realtek 2.5 Gb Ethernet
- External connectivity - Other external connections
- - Wi‑Fi 7 antenna connectors- BIOS FlashBack button
- External connectivity - USB
- - USB Type-C x 2- USB 3.0 x 4- USB 2.0 x 4
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1

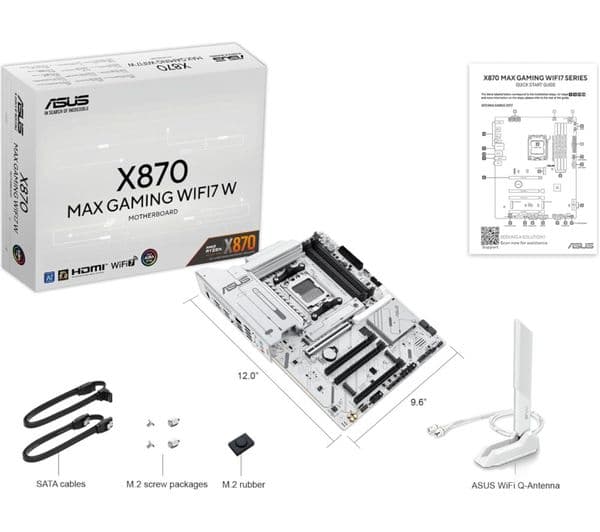

- General - Box contents
- - Asus MAX GAMING WIFI7 X870 AMD AM5 Motherboard- SATA 6Gb/s cables x 2- ASUS WiFi Q-Antenna x 1- M.2 rubber package x 1- Screw package for M.2 SSD x 1- Quick start guide x 1
- General - Colour
- White
- General - Dimensions
- 70 x 244 x 305 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Software included
- ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 with AI Cooling IIASUS AI AdvisorASUS DriverHubASUS GlideXTurboV CoreASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkey
- General - Weight
- 1.36 kg
- Internal connectivity - BIOS
- - 256 Mb Flash ROM - UEFI AMI BIOS
- Internal connectivity - Buttons
- BIOS FlashBack
- Internal connectivity - Case
- - Front panel USB‑C- USB 2.0 headers- Power/HDD LEDs
- Internal connectivity - Cooling
- - Fan cooling via onboard fan headers- Large VRM & chipset heatsinks- Flexible M.2 heatsink- CPU fan 4‑pin × 1- CPU OPT 4‑pin × 1- AIO Pump 4‑pin × 1- Chassis fan 4‑pin × 4
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16 Slots) x 1- PCIe 4.0 (x16 Slots) x 2- PCIe 3.0 (x16 Slots) x 1
- Internal connectivity - Power
- - 24-pin ATX x 1- 8‑pin +12 V CPU ×2
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 3
- Overview - Chipset
- AMD X870
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11
- Overview - Processor models supported
- AMD RYZEN 7000 / 8000 / 9000 Series desktop processors
- Overview - Socket
- AMD AM5
