- Basic Specifications - EAN
- 4711081338413
- Basic Specifications - Manufacturer's Part Number
- 121249
- External connectivity - Audio
- - Audio jacks x 5- Optical x 1- S/PDIF in x 1
- External connectivity - LAN
- Realtek 2.5Gb Ethernet x 1
- External connectivity - Other external connections
- WiFi module x 1
- External connectivity - USB
- - USB 3.2 x 1- USB 2.0 x 2
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

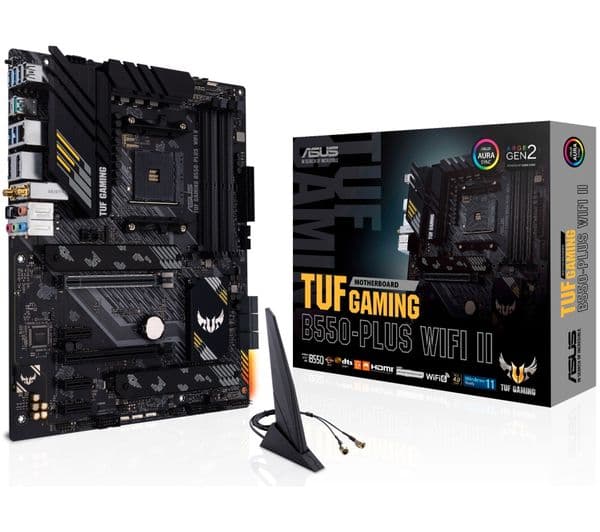

- - Asus TUF GAMING B550-PLUS WIFI II AM4 Motherboard- WiFi antennas- SATA cables x 2- M.2 rubber package x 2- M.2 screw package- Support DVD- TUF certification card- User manual
- General - Colour
- Black
- General - Dimensions
- 275 x 340 mm (W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Software included
- - Armoury Crate- Utility- TurboV EVO- EPU- Digi+ VRM- Fan Xpert 4- PC Cleaner- Aura Creator- TUF GAMING CPU-Z- Norton Anti-virus software (Free Trial for 60 days)- WinRAR- UEFI BIOS- ASUS EZ DIY
- General - Weight
- 1.61 Kg
- Internal connectivity - BIOS
- - 256 Mb Flash ROM- UEFI AMI BIOS
- Internal connectivity - Buttons
- Power
- Internal connectivity - Case
- - Power LED x 1- Clear CMOS header
- Internal connectivity - Cooling
- - 4-pin CPU fan header x 1- 4-pin CPU OPT fan header x 1- 4-pin AIO Pump header x 1- 4-pin chassis fan headers x 3
- Internal connectivity - Expansion slots
- - PCIe 4.0 (x16) (supports x16 mode) x 1- PCIe 3.0 (x16) (supports x16 mode) x 1- PCIe 3.0 (x16) (support x4 mode) x 1- PCIe 3.0 (x1) x 3
- Internal connectivity - Other internal connections
- - Thermal Sensor header x 1- Thunderbolt header x 1- Addressable Gen 2 headers x 2- Aura RGB header x 2- Clear CMOS header x 1- COM Port header x 1- Front Panel Audio header (AAFP) x 1- 20-3 pin System Panel header x 1
- Internal connectivity - Power
- - 24-pin EATX x 1- 8-pin ATX 12 V x 1
- Internal connectivity - Storage slots
- - SATA x 6 (6 GB/s)- M.2 x 2
- Internal connectivity - USB
- - USB 3.2 Gen 1 connector (supports USB Type-C) x 2- USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) x 4- USB 2.0 headers (supports 4 additional USB 2.0 ports) x 2
- Overview - Chipset
- AMD B550
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 128 GB)
- Overview - Memory standard
- DDR4
- Overview - Operating systems supported
- Windows 11 or later
- Overview - Processor models supported
- AMD Ryzen 5000 Series Desktop Processors
- Overview - Socket
- AMD AM4
