- Audio - Compliant Standards
- High Definition Audio
- Audio - Type
- HD Audio (8-channel)
- Basic Specifications - Audio
- HD Audio (8-channel)
- Basic Specifications - Chipset Type
- Intel H610
- Basic Specifications - Compatible Processors
- (supports 12th Generation Intel Core / Pentium Gold / Celeron)
- Basic Specifications - EAN
- 4711081699132
- Basic Specifications - LAN
- Gigabit Ethernet
- Basic Specifications - Manufacturer's Part Number
- 90MB1A30-M0EAYC
- Basic Specifications - Max RAM Size
- 64 GB
- Basic Specifications - Model
- ASUS PRO H610M-C D4-CSM
- Basic Specifications - Processor Socket
- 1 x LGA1700 Socket
- Basic Specifications - Product Description

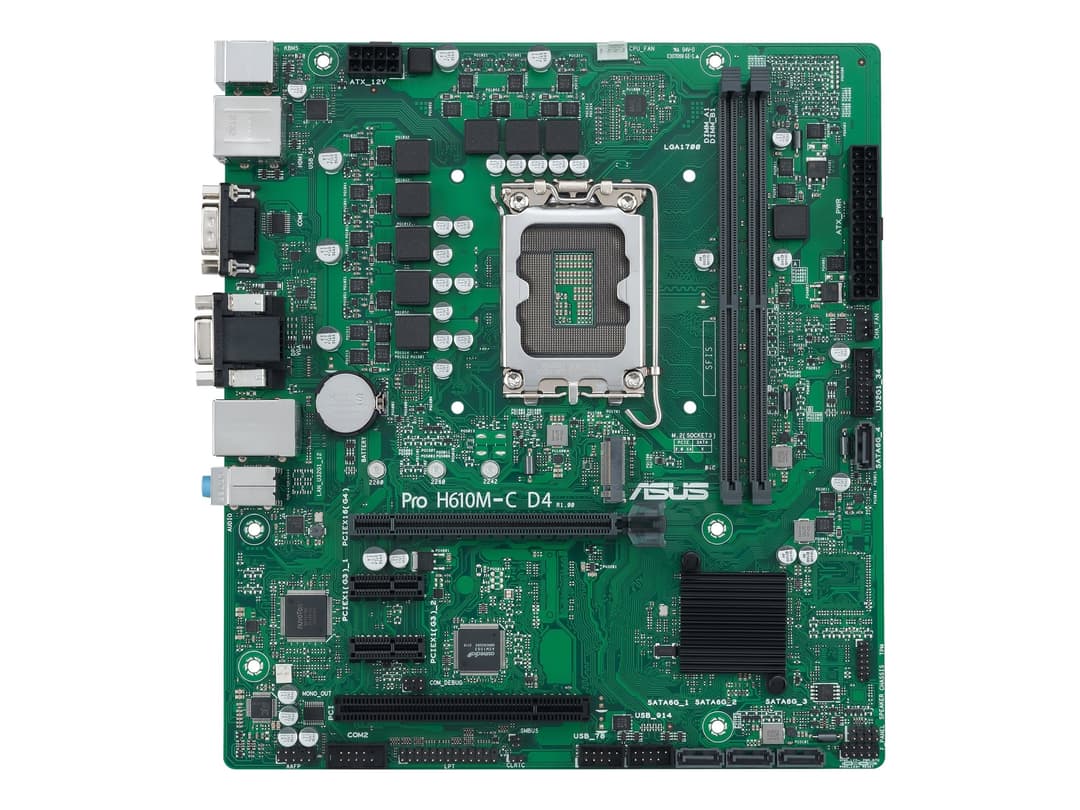

- ASUS PRO H610M-C D4-CSM - motherboard - micro ATX - LGA1700 Socket - H610
- Basic Specifications - Product Type
- Motherboard - micro ATX
- Basic Specifications - RAM Supported
- 2 DIMM slots - DDR4, non-ECC, unbuffered
- Basic Specifications - Storage Ports
- 4 x SATA-600, 1 x M.2
- Basic Specifications - USB / FireWire Ports
- 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
- Expansion / Connectivity - Expansion Slots
- 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI
- Expansion / Connectivity - Interfaces
- 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x DisplayPort ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x serial
- Expansion / Connectivity - Internal Interfaces
- 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x parallel - header
- Expansion / Connectivity - Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
- Expansion / Connectivity - Storage Interfaces
- SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2
- Features - BIOS Features
- UEFI BIOS
- Features - BIOS Type
- AMI
- Features - Hardware Features
- Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, LANGuard, audio jack detect technology, jack retasking, ASUS EZ DIY, ASUS Self Recovering BIOS, Q-LED Core, ASUS Event Log, ASUS Commercial BIOS kit, Moistureproof PCB, overcurrent protection, ASUS Control Center Express (ACC Express), Preboot eXecution Environment (PXE)
- Features - Sleep / Wake Up
- Wake on LAN (WOL), wake on PME
- General - Chipset Type
- Intel H610
- General - Compatible Processors
- (supports 12th Generation Intel Core / Pentium Gold / Celeron)
- General - Max Processors Qty
- 1
- General - Processor Socket
- LGA1700 Socket
- General - Product Type
- Motherboard - micro ATX
- LAN - Network Interfaces
- Gigabit Ethernet
- Miscellaneous - Cables Included
- 2 x Serial ATA cable
- Miscellaneous - Compliant Standards
- DisplayPort 1.4
- Miscellaneous - Depth
- 22 cm
- Miscellaneous - Included Accessories
- IO shield, 1 x M.2 screw, ACC Express Activation Key Card
- Miscellaneous - Software Included
- ASUS Control Center Express
- Miscellaneous - Width
- 24.4 cm
- Supported RAM - Bus Clock
- 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz
- Supported RAM - Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
- Supported RAM - Max Size
- 64 GB
- Supported RAM - Registered or Buffered
- Unbuffered
- Supported RAM - Supported RAM Integrity Check
- Non-ECC
- Supported RAM - Technology
- DDR4
