- Aerial - Aerial
- External detachable
- Aerial - Antenna Qty
- 2
- Basic Specifications - Capacity
- Concurrent VPN tunnels: 32 ¦ NAT sessions: 50000 ¦ Concurrent SSL VPN tunnels: 16
- Basic Specifications - Cellular Protocol
- LTE
- Basic Specifications - Compliant Standards
- IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.1x, UPnP
- Basic Specifications - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Basic Specifications - Device Type
- Router - DSL modem / wireless cellular modem - 6-port switch (integrated)
- Basic Specifications - Digital Signaling Protocol
- ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
- Basic Specifications - Dimensions (WxDxH)
- 24.1 cm x 16.5 cm x 4.4 cm
- Basic Specifications - EAN
- 4710484741233
- Basic Specifications - Enclosure Type
- Desktop
- Basic Specifications - Features
- Firewall protection, load balancing, IGMP snooping, Syslog support, DoS attack prevention, content filtering, ALG support, port mirroring, E-mail alert, IPv6 support, VPN passthrough, High Availability, WDS support, URL filtering, firmware upgradable, WMM support, ACL support, QoS, IPSec NAT-T, WPS, IPSec passthrough, DHCP server, SMS alert, hidden SSID, reset button, bandwidth control, IPv4 support, DNS server, port triggering, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, application filtering, IGMP proxy, 802.1x authentication, ToS, PBC, L2TP passthrough, band steering, WDS bridge, Web Filtering, IGMP fast leave, Airtime Fairness, 2x2 MU-MIMO technology, L2TP over IPSec, client isolation, DMZ support, VLAN Tagging, port-based VLAN, port-based QoS, WDS repeater mode, multiple PVC support, broadcast threshold, DNS filtering, 2x2 MIMO technology, DNSSEC support, WLAN scheduling, DSCP based QoS, Brute Force Protection
- Basic Specifications - Frequency Band
- 2.4 GHz / 5 GHz
- Basic Specifications - Localisation
- United Kingdom, Ireland
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- V2865LAC-K
- Basic Specifications - Mobile Communication Protocol
- LTE
- Basic Specifications - Model

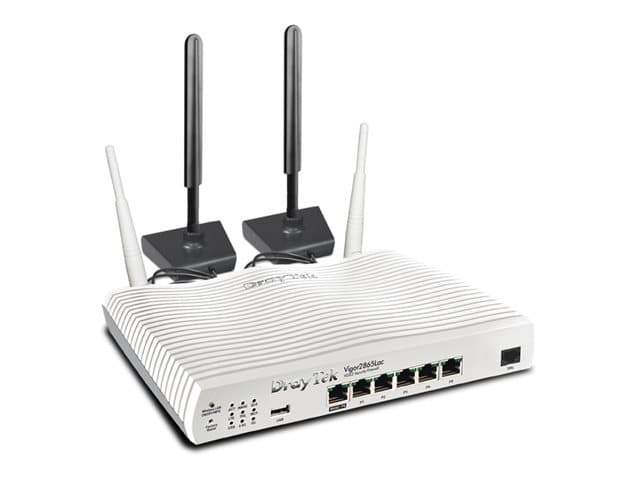

- Draytek Vigor 2865Lac
- Basic Specifications - Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, ARP, FTP, DHCP, DNS, Bonjour, SMB, DDNS, DHCPv6, RTSP, IPv4, IPv6
- Basic Specifications - Product Description
- Draytek Vigor 2865Lac - router - DSL/WWAN - Wi-Fi 5 - desktop
- Basic Specifications - Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, TR-069
- Basic Specifications - Routing Protocol
- RIP, BGP, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
- Basic Specifications - VoIP Protocols
- H.323, SIP
- Basic Specifications - WAN Ports Qty
- 2
- Basic Specifications - Weight
- 620 g
- Communications - Digital Signaling Protocol
- ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
- Communications - Max Transfer Rate
- 300 Mbps
- Communications - Mobile Communication Protocol
- LTE
- Communications - Protocols & Specifications
- ITU G.992.1 (G.DMT), ITU G.992.5, ITU G.993.2, ITU G.993.5, ITU G.992.3
- Communications - Type
- DSL modem / wireless cellular modem
- Dimensions & Weight - Depth
- 16.5 cm
- Dimensions & Weight - Height
- 4.4 cm
- Dimensions & Weight - Weight
- 620 g
- Dimensions & Weight - Width
- 24.1 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 45 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Expansion Slots
- 2 SIM
- Expansion / Connectivity - Interfaces
- LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ - RJ-11 ¦ USB 2.0: 2 x 4 pin USB Type A
- General - Authentication Method
- RADIUS, X.509 certificates, TACACS+, LDAP, internal user database, XAUTH authentication
- General - Capacity
- Concurrent VPN tunnels: 32 ¦ NAT sessions: 50000 ¦ Concurrent SSL VPN tunnels: 16
- General - Compliant Standards
- IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.1x, UPnP
- General - Connectivity Technology
- Wireless, wired
- General - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- General - Device Type
- Router - 6-port switch (integrated)
- General - Enclosure Type
- Desktop
- General - Encryption Algorithm
- DES, Triple DES, MPPE, AES, SSL, SHA-1, WPA, WPA2, IKEv2, 256-bit SHA, WEP
- General - Features
- Firewall protection, load balancing, IGMP snooping, Syslog support, DoS attack prevention, content filtering, ALG support, port mirroring, E-mail alert, IPv6 support, VPN passthrough, High Availability, WDS support, URL filtering, firmware upgradable, WMM support, ACL support, QoS, IPSec NAT-T, WPS, IPSec passthrough, DHCP server, SMS alert, hidden SSID, reset button, bandwidth control, IPv4 support, DNS server, port triggering, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, application filtering, IGMP proxy, 802.1x authentication, ToS, PBC, L2TP passthrough, band steering, WDS bridge, Web Filtering, IGMP fast leave, Airtime Fairness, 2x2 MU-MIMO technology, L2TP over IPSec, client isolation, DMZ support, VLAN Tagging, port-based VLAN, port-based QoS, WDS repeater mode, multiple PVC support, broadcast threshold, DNS filtering, 2x2 MIMO technology, DNSSEC support, WLAN scheduling, DSCP based QoS, Brute Force Protection
- General - Frequency Band
- 2.4 GHz / 5 GHz
- General - Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, ARP, FTP, DHCP, DNS, Bonjour, SMB, DDNS, DHCPv6, RTSP, IPv4, IPv6
- General - Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, TR-069
- General - Routing Protocol
- RIP, BGP, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
- General - Status Indicators
- WAN, DMZ, link/activity, USB, DSL, 5 GHz, 2.4 GHz, QoS
- IP Telephony - VoIP Protocols
- H.323, SIP
- Line Properties - Framing Format
- ANSI T1.413
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Cables Included
- 1 x modem cable
- Miscellaneous - Localisation
- United Kingdom, Ireland
- Power - Power Device
- External power adapter
- Software / System Requirements - OS Provided
- No operating system
