- Basic Specifications - Capacity
- Concurrent VPN tunnels: 50 ¦ Concurrent SSL VPN tunnels: 25 ¦ NAT sessions: 60000 ¦ Hardware accelerated NAT sessions: 8000
- Basic Specifications - Compliant Standards
- IEEE 802.1x, IEEE 802.1Q, IEEE 802.1p
- Basic Specifications - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Basic Specifications - Device Type
- Router - 6-port switch (integrated)
- Basic Specifications - Dimensions (WxDxH)
- 24.1 cm x 16.5 cm x 4.4 cm
- Basic Specifications - EAN
- 4710484741288
- Basic Specifications - Enclosure Type
- Desktop
- Basic Specifications - Features
- 3G/4G USB Dongle Support, DDos attack prevention, DPD, DHCP client, DHCP over IPSec, DHCP server, DMZ support, DoS attack prevention, E-mail alert, firewall protection, anti-spoofing protection, IP-MAC binding, IPSec NAT-T, MAC address filtering, port-based VLAN, SPI, Syslog support, VPN passthrough, DSCP based QoS, IGMP snooping, QoS, WAN failover, dual WAN connection, print server, VPN support, load balancing, NAT support, IGMP proxy, reset button, file sharing, VLAN Tagging, content filtering, tunnelling, port mirroring, firmware upgradable, wall mountable, DNSSEC support, IGMP fast leave, PPP, LAN-to-LAN bridging, ALG support
- Basic Specifications - Localisation
- United Kingdom
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- V2927-K
- Basic Specifications - Model
- Draytek Vigor 2927
- Basic Specifications - Network / Transport Protocol
- PPTP, L2TP, PPPoE, IPSec, DHCPv6, IPv4, IPv6, DNS, DDNS
- Basic Specifications - Performance
- VPN throughput (256-bit AES IPSec): 300 Mbps ¦ VPN throughput (IPSec): 800 Mbps ¦ VPN throughput (SSL): 120 Mbps ¦ NAT throughput for single WAN with hardware acceleration: 950 Mbps ¦ NAT throughput for dual WAN with hardware acceleration: 1.8 Gbps ¦ NAT throughput: 800 Mbps
- Basic Specifications - Power
- AC 230V
- Basic Specifications - Product Description

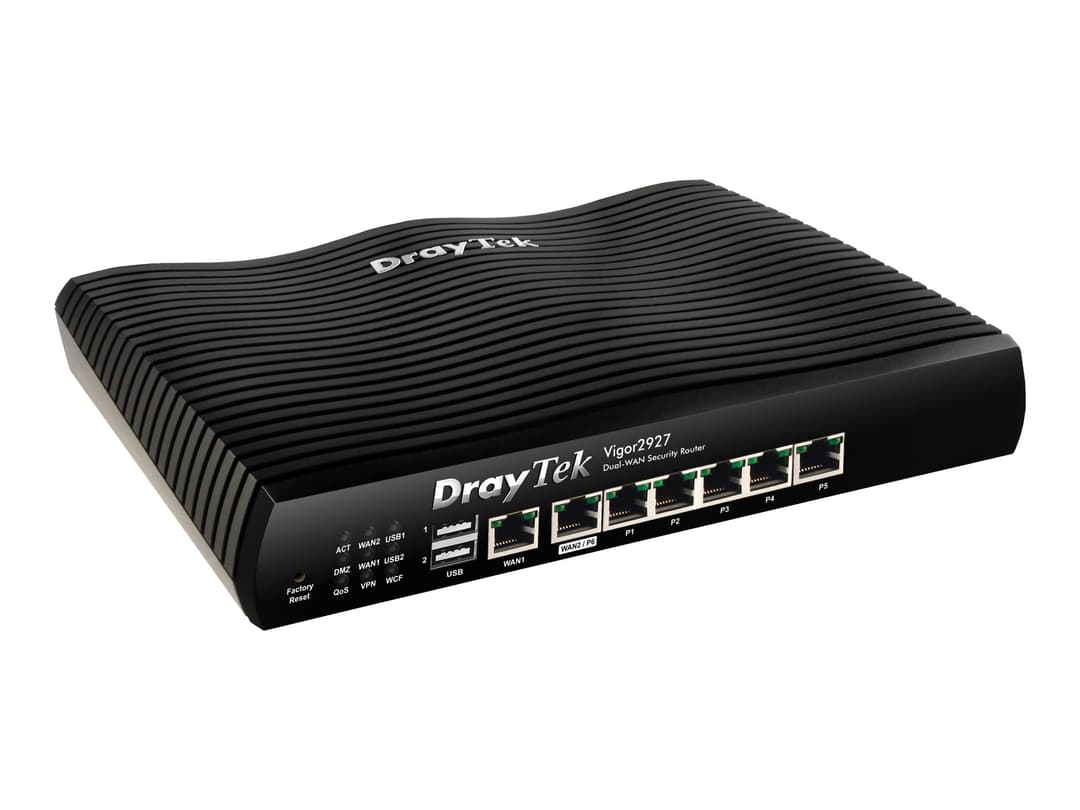

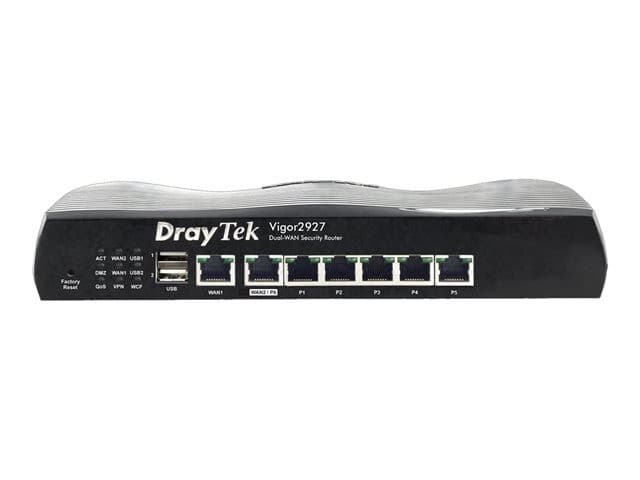

- Draytek Vigor 2927 - router - desktop
- Basic Specifications - Remote Management Protocol
- SNMP 2, SNMP 3, Telnet, SSH, HTTP, HTTPS, TR-069, SNMP 1
- Basic Specifications - Routing Protocol
- RIP-2, static IPv6 routing, RIP-1, BGP, RIPng, static IPv4 routing, policy-based routing (PBR)
- Basic Specifications - WAN Ports Qty
- 2
- Dimensions & Weight - Depth
- 16.5 cm
- Dimensions & Weight - Height
- 4.4 cm
- Dimensions & Weight - Width
- 24.1 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 45 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB: 2 x 4 pin USB Type A ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
- General - Authentication Method
- X.509 certificates, RADIUS, TACACS+, LDAP
- General - Built-in Devices
- Led panel
- General - Capacity
- Concurrent VPN tunnels: 50 ¦ Concurrent SSL VPN tunnels: 25 ¦ NAT sessions: 60000 ¦ Hardware accelerated NAT sessions: 8000
- General - Compliant Standards
- IEEE 802.1x, IEEE 802.1Q, IEEE 802.1p
- General - Connectivity Technology
- Wired
- General - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- General - Device Type
- Router - 6-port switch (integrated)
- General - Enclosure Type
- Desktop
- General - Encryption Algorithm
- MPPE, DES, Triple DES, SHA-1, IKE, IKEv2, SSL, SHA-256, 128-bit AES, 192-bit AES, 256-bit AES
- General - Features
- 3G/4G USB Dongle Support, DDos attack prevention, DPD, DHCP client, DHCP over IPSec, DHCP server, DMZ support, DoS attack prevention, E-mail alert, firewall protection, anti-spoofing protection, IP-MAC binding, IPSec NAT-T, MAC address filtering, port-based VLAN, SPI, Syslog support, VPN passthrough, DSCP based QoS, IGMP snooping, QoS, WAN failover, dual WAN connection, print server, VPN support, load balancing, NAT support, IGMP proxy, reset button, file sharing, VLAN Tagging, content filtering, tunnelling, port mirroring, firmware upgradable, wall mountable, DNSSEC support, IGMP fast leave, PPP, LAN-to-LAN bridging, ALG support
- General - Network / Transport Protocol
- PPTP, L2TP, PPPoE, IPSec, DHCPv6, IPv4, IPv6, DNS, DDNS
- General - Performance
- VPN throughput (256-bit AES IPSec): 300 Mbps ¦ VPN throughput (IPSec): 800 Mbps ¦ VPN throughput (SSL): 120 Mbps ¦ NAT throughput for single WAN with hardware acceleration: 950 Mbps ¦ NAT throughput for dual WAN with hardware acceleration: 1.8 Gbps ¦ NAT throughput: 800 Mbps
- General - Remote Management Protocol
- SNMP 2, SNMP 3, Telnet, SSH, HTTP, HTTPS, TR-069, SNMP 1
- General - Routing Protocol
- RIP-2, static IPv6 routing, RIP-1, BGP, RIPng, static IPv4 routing, policy-based routing (PBR)
- General - Status Indicators
- WAN, USB, link/activity, DMZ
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Cables Included
- 1 x network cable - 2 m
- Miscellaneous - Localisation
- United Kingdom
- Power - Power Device
- External power adapter
- Power - Voltage Required
- AC 230V
