- Basic Specifications - Capacity
- NAT sessions: 1000 ¦ Concurrent VPN tunnels: 500 ¦ Concurrent SSL VPN tunnels: 200
- Basic Specifications - Compliant Standards
- IEEE 802.1p, IEEE 802.1Q
- Basic Specifications - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, 12.5 Gigabit Ethernet
- Basic Specifications - Device Type
- Router
- Basic Specifications - Dimensions (WxDxH)
- 44.3 cm x 28.5 cm x 4.5 cm
- Basic Specifications - EAN
- 4710484747013
- Basic Specifications - Enclosure Type
- - 1U
- Basic Specifications - Features
- Load balancing, DrayDDNS, DHCP server, PPPoE server, DNS server, DNSSEC support, IP multicast, policy based routing, port mirroring, RADIUS Server, IGMP proxy, SMS alert, E-mail alert, QoS, VoIP support
- Basic Specifications - Localisation
- United Kingdom, Ireland
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- V3912-K
- Basic Specifications - Model

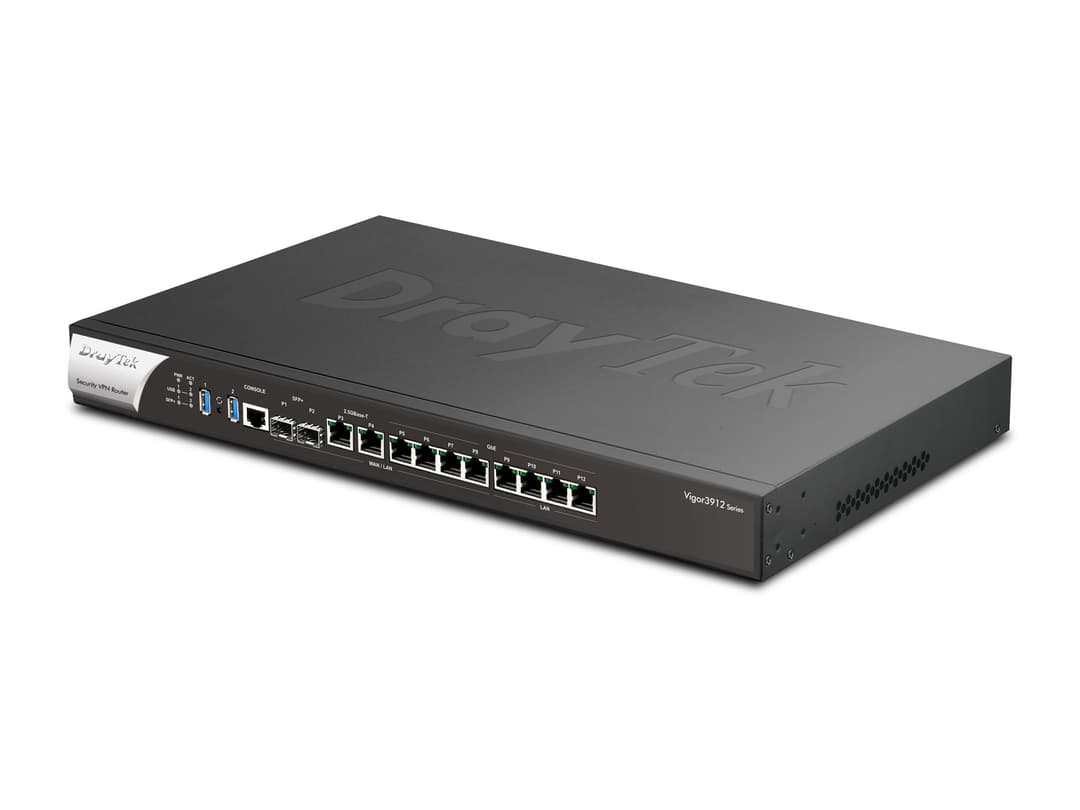

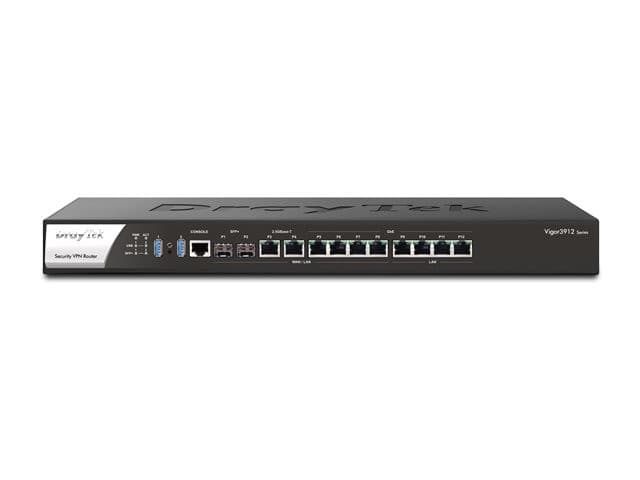

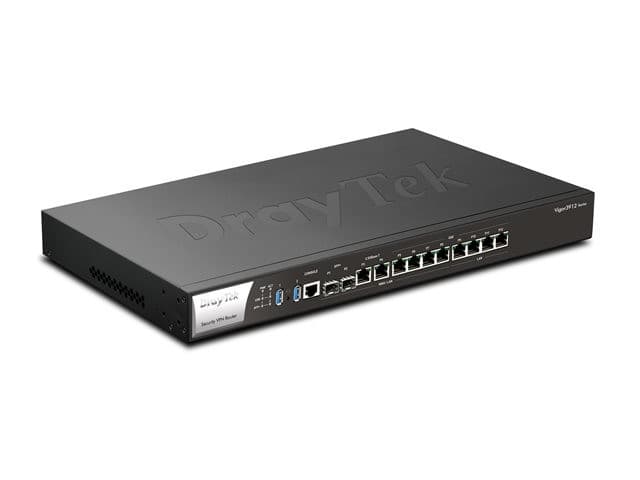

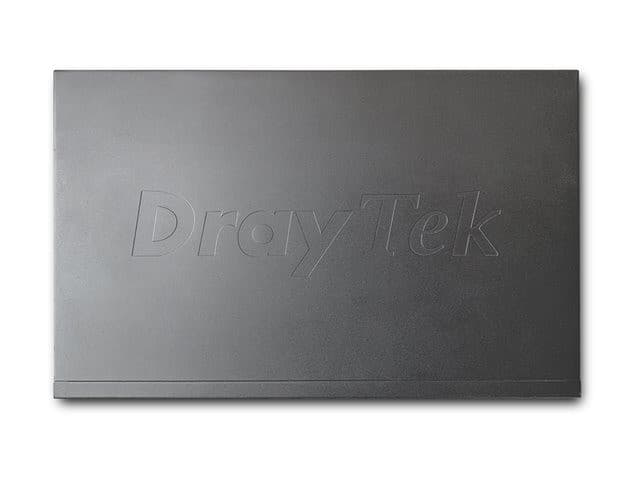

- Draytek Vigor 3912
- Basic Specifications - Network / Transport Protocol
- PPPoE, DHCP, IPv4, IPv6, DHCPv6, Bonjour, IPSec, L2TP, PPTP
- Basic Specifications - Performance
- NAT throughput: 12.5 Gbps ¦ VPN throughput (IPSec): 5000 Mbps ¦ VPN throughput (SSL): 3500 Mbps ¦ VPN WireGuard throughput: 900 Mbps
- Basic Specifications - Power
- AC 100-240 V (50/60 Hz)
- Basic Specifications - Product Description
- Draytek Vigor 3912 - Enterprise - router - 802.1x
- Basic Specifications - Remote Management Protocol
- SNMP 1, SNMP 2c, SNMP 3
- Basic Specifications - Weight
- 3.76 kg
- Dimensions & Weight - Depth
- 28.5 cm
- Dimensions & Weight - Height
- 4.5 cm
- Dimensions & Weight - Weight
- 3.76 kg
- Dimensions & Weight - Width
- 44.3 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 45 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- WAN / LAN: 8 x 10GBase-T - SFP+ ¦ WAN / LAN: 2 x 2.5G Gigabit Ethernet - RJ-45 ¦ WAN / LAN: 4 x 10/100/1G Ethernet - RJ-45 ¦ LAN: 4 x 10/100/1G Ethernet ¦ USB 3.0: 2 x 4 pin USB Type A ¦ Serial: 1 x RJ-45
- General - Authentication Method
- RADIUS, LDAP, TACACS+, Time-based One Time Password (TOTP), Mobile One Time Password (mOTP), X.509 certificates, Extensible Authentication Protocol (EAP)
- General - Capacity
- NAT sessions: 1000 ¦ Concurrent VPN tunnels: 500 ¦ Concurrent SSL VPN tunnels: 200
- General - Compliant Standards
- IEEE 802.1p, IEEE 802.1Q
- General - Connectivity Technology
- Wired
- General - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, 12.5 Gigabit Ethernet
- General - Device Type
- Router
- General - Enclosure Type
- - 1U
- General - Encryption Algorithm
- IKEv1, IKEv2, SSL, SHA-512, SHA-256, MD5
- General - Features
- Load balancing, DrayDDNS, DHCP server, PPPoE server, DNS server, DNSSEC support, IP multicast, policy based routing, port mirroring, RADIUS Server, IGMP proxy, SMS alert, E-mail alert, QoS, VoIP support
- General - Network / Transport Protocol
- PPPoE, DHCP, IPv4, IPv6, DHCPv6, Bonjour, IPSec, L2TP, PPTP
- General - Performance
- NAT throughput: 12.5 Gbps ¦ VPN throughput (IPSec): 5000 Mbps ¦ VPN throughput (SSL): 3500 Mbps ¦ VPN WireGuard throughput: 900 Mbps
- General - Remote Management Protocol
- SNMP 1, SNMP 2c, SNMP 3
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Cables Included
- 1 x network cable ¦ 1 x serial cable ¦ 1 x power cable (C13)
- Miscellaneous - Included Accessories
- RJ11 to RS-232 converter
- Miscellaneous - Localisation
- United Kingdom, Ireland
- Miscellaneous - Rack Mounting Kit
- Included
- Power - Power Consumption Operational
- 35 Watt
- Power - Power Device
- External power adapter
- Power - Voltage Required
- AC 100-240 V (50/60 Hz)
