- Basic Specifications - EAN
- 4719331867263
- Basic Specifications - Manufacturer's Part Number
- 126175

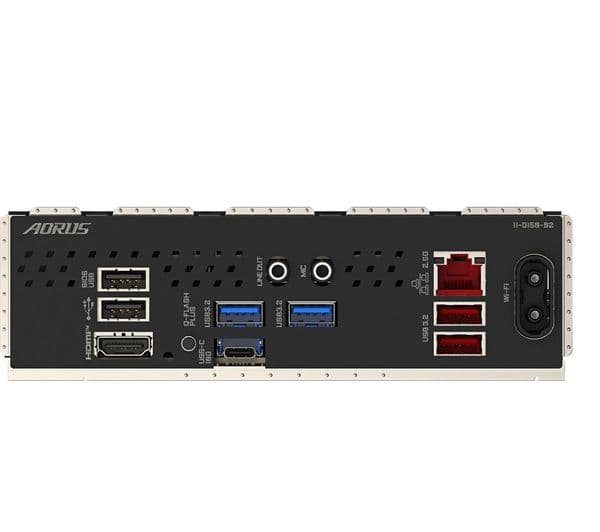

- External connectivity - Audio
- 3.5 mm jack x 2
- External connectivity - LAN
- 2.5GBe port x 1
- External connectivity - USB
- - USB Type-C header x 1 (with USB 3.2 Gen 2 support)- USB 3.2 Gen 1 header x 1- USB 2.0/1.1 header x 1
- External connectivity - Video output
- HDMI x 1

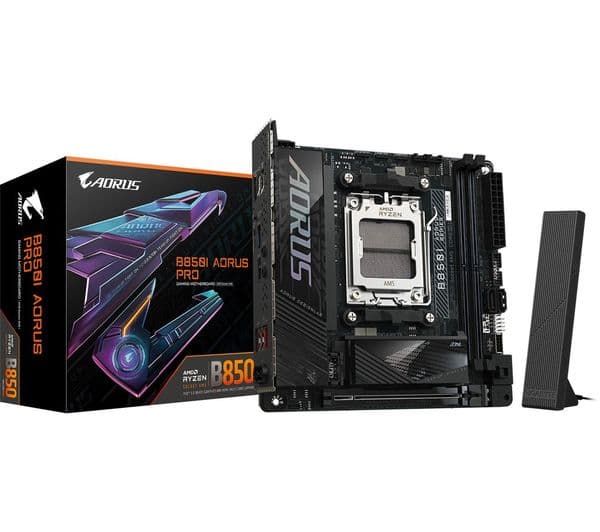

- General - Box contents

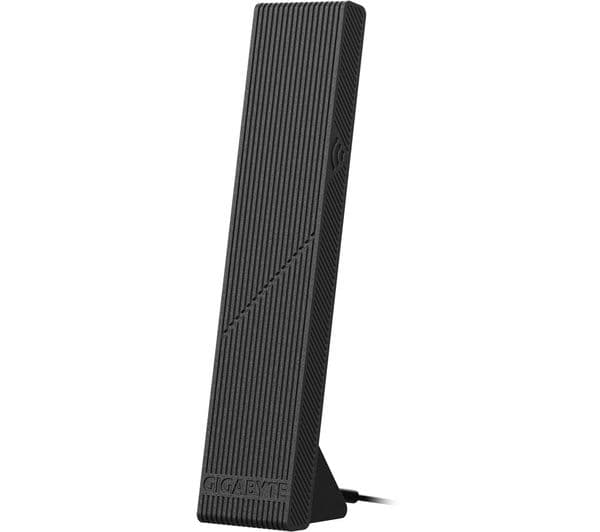

- - Gigabyte Aorus Pro B850 AM5 Motherboard - SATA cable x 2- WiFi antenna- User manual- Fan power extension cables x 2- Computer case screws- M.2 screw- M.2 thermal pads x 2
- General - Colour
- Black
- General - Dimensions
- 100 x 170 x 170 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1310 g
- Internal connectivity - BIOS
- - UEFI AMI BIOS- 256 Mbit flash x 1
- Internal connectivity - Buttons
- - Q-Flash Plus x 1- Chassis intrusion header x 1- Reset jumper x 1- Clear CMOS jumper x 1- Front panel audio x 1- Speaker x 1
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU fan/water cooling pump header x 1- System fan headers x 3
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1- PCIe Gen 5.0 (x4) x 1- PCIe Gen 4.0 (x4) x 1
- Internal connectivity - Other internal connections
- - Front panel header x 1- Speaker header x 1- Front panel audio header x 1
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin ATX x 1
- Internal connectivity - Sensors
- - Temperature detection- Fan speed sensor- Thermal sensor- Water cooling flow rate sensor- Fan fail warning sensor
- Internal connectivity - Storage slots
- - SATA x 2 - M.2 x 2
- Internal connectivity - USB
- - HDMI x 1- USB Type-C x 1- USB 2.0 x 2
- Overview - Chipset
- AMD B850
- Overview - Cooling features
- - Heatsink- VRM Thermal Armor Advanced- M.2 Thermal Guard
- Overview - Form factor
- mini ATX
- Overview - Memory slots
- 2 x DDR5 (Max RAM: 128 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11 (64-bit)
- Overview - Processor models supported
- AMD Ryzen 7000, 8000 & 9000 Series processors
- Overview - Socket
- AMD AM5
