- Basic Specifications - Compliant Standards
- xHCI, USB 3.1
- Basic Specifications - Data Link Protocol
- USB 3.1
- Basic Specifications - Data Transfer Rate
- 10 Gbps
- Basic Specifications - Designed For
- P/N: USB312SAT3, USB31C2SAT3
- Basic Specifications - Device Type
- USB adapter
- Basic Specifications - Dimensions (WxDxH)
- 1.8 cm x 12 cm x 9 cm
- Basic Specifications - EAN
- 0065030863698
- Basic Specifications - Form Factor
- Plug-in card - low profile
- Basic Specifications - Interface (Bus) Type
- PCI Express x4
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- PEXUSB311EI
- Basic Specifications - Model
- StarTech.com 2 Port USB 3.1 (10Gbps) Card - USB-A 1x External 1x Internal - PCIe USB 3.1 Card with Type-A - PCI Express (PEXUSB311EI)
- Basic Specifications - Ports
- USB 3.1 x 2
- Basic Specifications - Processor
- ASMedia ASM1142
- Basic Specifications - Product Description
- StarTech.com 2 Port USB 3.1 (10Gbps) Card - USB-A 1x External 1x Internal - PCIe USB 3.1 Card with Type-A - PCI Express (PEXUSB311EI) - USB adapter - PCIe x4 - USB 3.1 x 2
- Basic Specifications - System Requirements
- Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Apple MacOS X 10.9 or later, Microsoft Windows 7 / 8 / 8.1 / 10, Linux 3.5
- Basic Specifications - Weight
- 50 g
- Compatibility Information - Designed For
- P/N: USB312SAT3, USB31C2SAT3
- Dimensions & Weight - Depth
- 12 cm
- Dimensions & Weight - Height
- 9 cm
- Dimensions & Weight - Weight
- 50 g
- Dimensions & Weight - Width
- 1.8 cm
- Environmental Parameters - Max Operating Temperature
- 50 °C
- Environmental Parameters - Min Operating Temperature
- 5 °C
- Expansion / Connectivity - Interfaces
- 1 x USB 3.1 - 24 pin USB-C (external) ¦ 1 x USB 3.1 - 24 pin USB-C (internal) ¦ 1 x SATA 3Gb/s - 15 pin Serial ATA power
- General - Device Type
- USB adapter
- General - Form Factor
- Plug-in card - low profile
- General - Interface (Bus) Type
- PCI Express x4
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Compliant Standards
- FCC, RoHS, WEEE, RCM

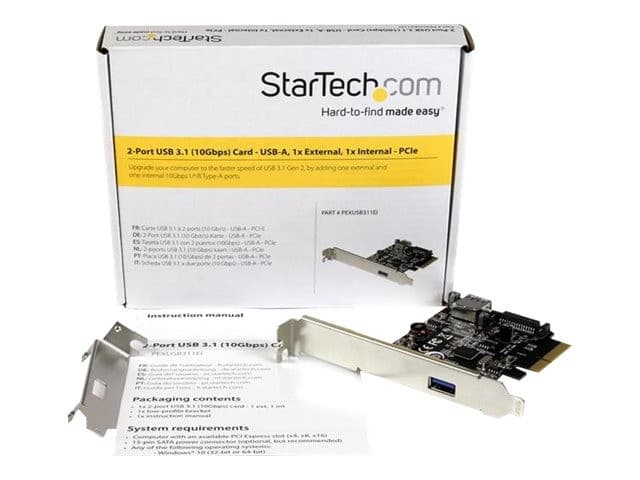

- Miscellaneous - Included Accessories
- Low-profile bracket
- Networking - Compliant Standards
- xHCI, USB 3.1
- Networking - Connectivity Technology
- Wired
- Networking - Data Link Protocol
- USB 3.1
- Networking - Data Transfer Rate
- 10 Gbps
- Networking - Features
- UASP
- Networking - Ports
- USB 3.1 x 2
- Processor / Memory - Processor
- ASMedia ASM1142
- Software / System Requirements - OS Required
- Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Apple MacOS X 10.9 or later, Microsoft Windows 7 / 8 / 8.1 / 10, Linux 3.5
