- Basic Specifications - Cabling Type
- 100Base-FX, 100Base-TX
- Basic Specifications - Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Basic Specifications - Data Transfer Rate
- 100 Mbps
- Basic Specifications - Device Type
- Fibre media converter - RJ-45 / SFP (mini-GBIC)
- Basic Specifications - Dimensions (WxDxH)
- 3.2 cm x 5.9 cm x 5 cm
- Basic Specifications - EAN
- 0065030889667
- Basic Specifications - Form Factor
- DIN rail mountable
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- IMC100MSFP
- Basic Specifications - Model

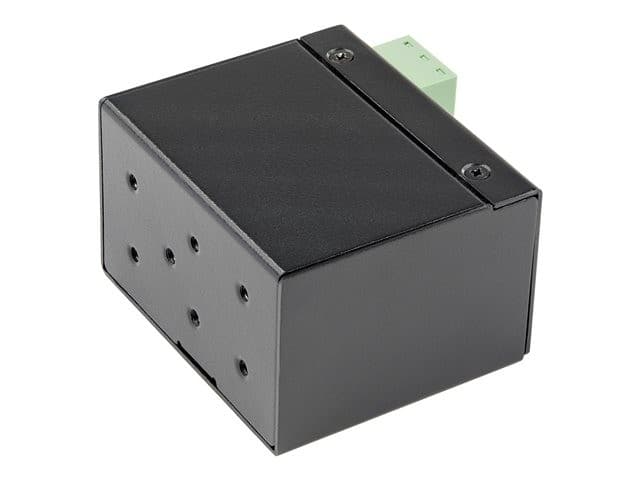

- StarTech.com Industrial Fiber to Ethernet Media Converter, 100Mbps SFP to RJ45/Cat6, Singlemode/Multimode Optical Fiber to Copper Network, 12-56V DC, IP-30/ -40 to +75C, Fiber to Ethernet - SFP to RJ45 Converter (IMC100MSFP)
- Basic Specifications - Power
- AC 18 - 36 V / DC 12 - 56 V
- Basic Specifications - Product Description
- StarTech.com Industrial Fiber to Ethernet Media Converter, 100Mbps SFP to RJ45/Cat6, Singlemode/Multimode Optical Fiber to Copper Network, 12-56V DC, IP-30/ -40 to +75C, Fiber to Ethernet - SFP to RJ45 Converter (IMC100MSFP) - fibre media converter - 10Mb LAN, 100Mb LAN
- Basic Specifications - Product Type
- Media converter
- Basic Specifications - Weight
- 81.4 g
- Dimensions & Weight - Depth
- 5.9 cm
- Dimensions & Weight - Height
- 5 cm
- Dimensions & Weight - Weight
- 81.4 g
- Dimensions & Weight - Width
- 3.2 cm
- Dimensions & Weight (Shipping) - Shipping Depth
- 10.5 cm
- Dimensions & Weight (Shipping) - Shipping Height
- 6.4 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 200 g
- Dimensions & Weight (Shipping) - Shipping Width
- 15.5 cm
- Environmental Parameters - Humidity Range Operating
- 5 - 95% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 75 °C
- Environmental Parameters - Min Operating Temperature
- -40 °C
- Expansion / Connectivity - Interfaces
- 1 x Ethernet 100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SFP female
- General - Colour
- Black
- General - Device Type
- Fibre media converter
- General - Form Factor
- DIN rail mountable
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Compliant Standards
- IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, EN 60950-1, WEEE, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
- Miscellaneous - Included Accessories
- Power terminal block
- Miscellaneous - Mounting Kit
- Included
- Miscellaneous - MTBF
- 534,482 hours
- Networking - Cabling Type
- 100Base-FX, 100Base-TX
- Networking - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x
- Networking - Connectivity Technology
- Wired
- Networking - Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Networking - Data Transfer Rate
- 100 Mbps
- Networking - Features
- Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode, Back Pressure Support, 2KV Surge protection
- Networking - Status Indicators
- Port status, active, link
- Power - Power Consumption Operational
- 1.92 Watt
- Power - Power Device
- External power adapter
- Power - Voltage Required
- AC 18 - 36 V / DC 12 - 56 V
