- Basic Specifications - Compliant Standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Basic Specifications - Device Type
- Switch - 5 ports - unmanaged
- Basic Specifications - Dimensions (WxDxH)
- 9.98 cm x 9.8 cm x 2.5 cm
- Basic Specifications - EAN
- 6935364052737
- Basic Specifications - Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, QoS, fanless, DSCP support
- Basic Specifications - Jumbo Frame Support
- 16KB
- Basic Specifications - MAC Address Table Size
- 2K entries
- Basic Specifications - Manufacturer's Part Number
- TL-SG1005LP
- Basic Specifications - Model

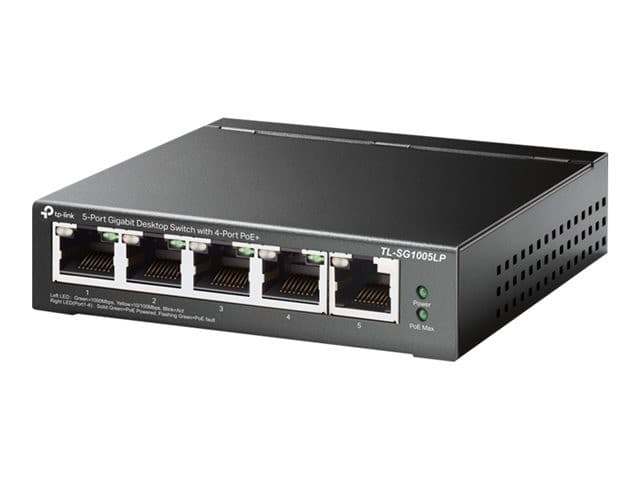

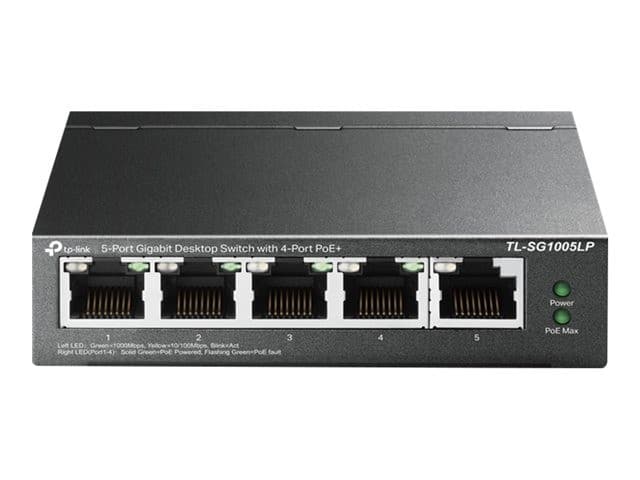

- TP-Link TL-SG1005LP
- Basic Specifications - Performance
- Packet forwarding rate: 7.44 Mpps ¦ Switching capacity: 10 Gbps
- Basic Specifications - PoE Budget
- 40 W
- Basic Specifications - Ports
- 5 x 10/100/1000 (4 PoE+)
- Basic Specifications - Power Over Ethernet (PoE)
- PoE+
- Basic Specifications - Product Description
- TP-Link TL-SG1005LP - V1 - switch - 5 ports - unmanaged
- Basic Specifications - Routing Protocol
- IGMP
- Basic Specifications - Subtype
- Gigabit Ethernet
- Dimensions & Weight - Depth
- 9.8 cm
- Dimensions & Weight - Height
- 2.5 cm
- Dimensions & Weight - Width
- 9.98 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Humidity Range Storage
- 5 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Max Storage Temperature
- 70 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -40 °C
- Expansion / Connectivity - Interfaces
- 5 x 1000Base-T RJ-45 4 ports (PoE+) - 30 W
- General - Compliant Standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- General - Device Type
- Switch - 5 ports - unmanaged
- General - Enclosure Type
- Desktop, wall-mountable
- General - Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, QoS, fanless, DSCP support
- General - Jumbo Frame Support
- 16KB
- General - MAC Address Table Size
- 2K entries
- General - Performance
- Packet forwarding rate: 7.44 Mpps ¦ Switching capacity: 10 Gbps
- General - PoE Budget
- 40 W
- General - Ports
- 5 x 10/100/1000 (4 PoE+)
- General - Power Over Ethernet (PoE)
- PoE+
- General - Routing Protocol
- IGMP
- General - Subtype
- Gigabit Ethernet
- Miscellaneous - Compliant Standards
- Plug and Play, FCC, RoHS
- Power - Power Consumption Operational
- 47.5 Watt
- Power - Power Device
- External power adapter
- Power - Power Provided
- DC 53.5 V - 0.81 A
