- Basic Specifications - EAN
- 4719331866846
- Basic Specifications - Manufacturer's Part Number
- 126186

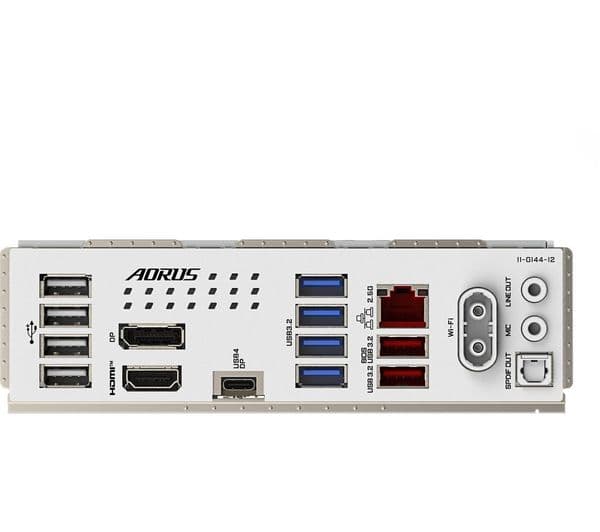

- External connectivity - Audio
- Realtek Audio CODEC
- External connectivity - LAN
- Realtek 2.5GbE LAN chip (2.5 Gbps /1 Gbps /100 Mbps)
- External connectivity - USB
- CPU:- USB Type-C x 1Chipset:- USB Type-C (with USB 3.2 Gen 2 support) x 1- USB 3.2 Gen 2 (Type-A ports (red) on the back panel) x 2- USB 3.2 Gen 1 x 2Chipset+USB 3.2 Gen 1 Hub:- USB 3.2 Gen 1 x 4Chipset+2 USB 2.0 Hubs:- USB 2.0/1.1 x 8
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1

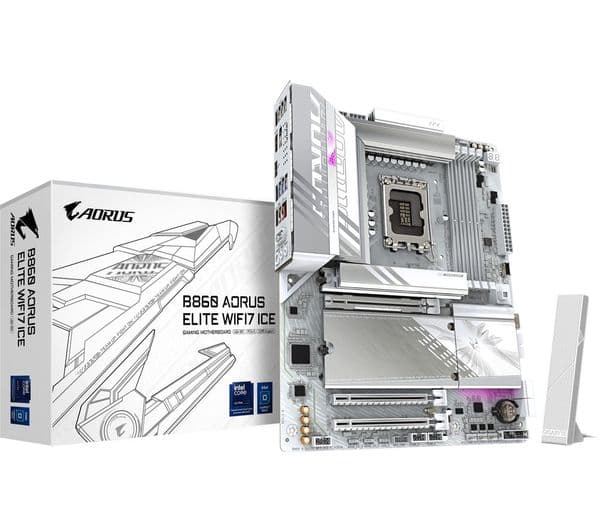

- General - Box contents
- - Gigabyte Aorus Elite Wi-Fi7 ICE B860 LGA1851 Motherboard- Manual- Quick installation guide
- General - Colour
- White
- General - Dimensions
- 70 x 244 x 305 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1.82 kg
- Internal connectivity - BIOS
- - 256 Mbit flash - UEFI AMI BIOS- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Internal connectivity - Buttons
- - Power - Reset button- Q-Flash Plus
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1 - PCIe 4.0 (x16) x 2
- Internal connectivity - Other internal connections
- - Front panel header x 1- Front panel audio header x 1- Addressable RGB Gen2 LED strip headers x 3- RGB LED strip header x 1- Trusted Platform Module header x 1
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin ATX x 2
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 3
- Internal connectivity - USB
- - USB Type-C (with USB 3.2 Gen 2 support) x 1- USB 3.2 Gen 1 x 1- USB 2.0/1.1 x 2
- Overview - Chipset
- Intel® B860 Express
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11
- Overview - Processor models supported
- Intel ® Core™ Ultra Processors
- Overview - Socket
- Intel® LGA1851
