- Basic Specifications - EAN
- 4719331867331
- Basic Specifications - Manufacturer's Part Number
- 127210

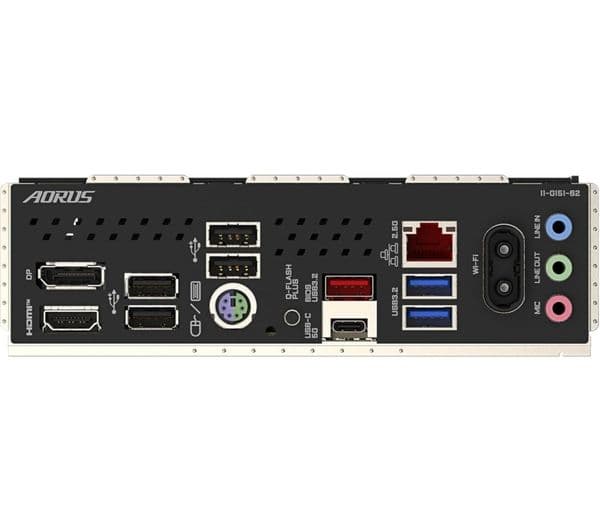

- External connectivity - Audio
- - Realtek® Audio CODEC High-Definition Audio 2/4/5.1/7.1 - channel- 3.5 mm jack x 3
- External connectivity - LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- External connectivity - Other external connections
- - PS/2 keyboard/mouse port x 1- Q-Flash Plus button x 1- Antenna connectors x 2
- External connectivity - USB
- - USB Type-C header (USB 3.2 Gen 1 support) x 1 - USB 3.2 Gen 2 Type-A ports (red) x 2- USB 2.0/1.1 header x 4- USB 3.2 Gen 1 ports x 2- RJ-45 port x 1
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

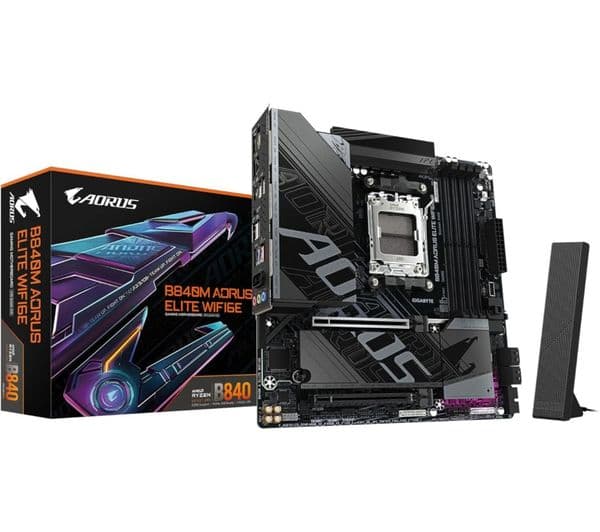

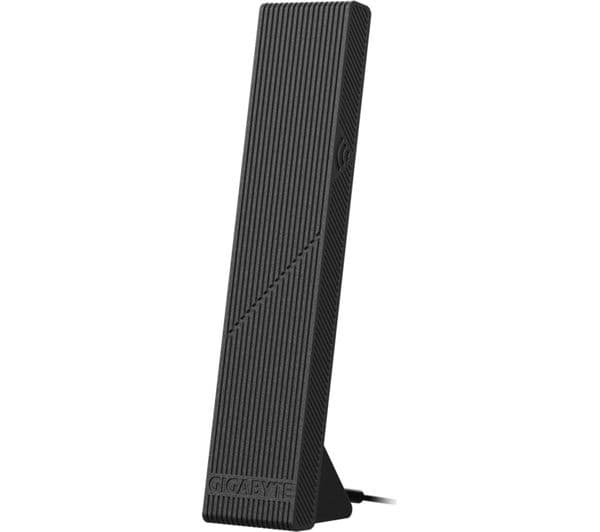

- - Gigabyte Aorus Elite WiFi6E B840M AM5 Motherboard- SATA cable x 2- WiFi antenna x 1- G connector x 1- M.2 thick/thin rubber pads x 2- Quick installation guide- User manual
- General - Colour
- Black
- General - Dimensions
- 68 x 268 x 270 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Software included
- - Norton® Internet Security (OEM version)- LAN bandwidth management
- General - Weight
- 1.6 kg
- Internal connectivity - BIOS
- - AMI UEFI BIOS- 256 Mbit flash x 1- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Internal connectivity - Buttons
- - Q-Flash Plus x 1- Reset jumper x 1- Reset button x 1- Clear CMOS jumper x 1- Front panel audio header x 1- Front panel header x 1
- Internal connectivity - Case
- - Power LED- HDD LED
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU fan/water cooling pump header x 1- System fan headers x 3- System fan/water cooling pump header x 1
- Internal connectivity - Expansion slots
- - PCIe (x16) x 2- PCIe 4.0 (x16) x 1- PCIe 3.0 (x4) x 1
- Internal connectivity - Other internal connections
- - Front panel header x 1- Speaker header x 1- Front panel audio header x 1- Trusted Platform Module header x 1
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin ATX x 1
- Internal connectivity - Sensors
- - Fan speed sensor- Thermal sensor- Water cooling flow rate sensor
- Internal connectivity - Storage slots
- - SATA x 4- M.2 x 2
- Internal connectivity - USB
- - USB Type-C (USB 3.2 Gen 1 support) x 2- USB 3.2 (Gen 1) x 1- USB 2.0/1.1 x 1
- Overview - Chipset
- AMD B840
- Overview - Cooling features
- - Fan cooling - Liquid cooling
- Overview - Form factor
- microATX
- Overview - Memory slots
- 4 x DDR5 (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 10 or later
- Overview - Processor models supported
- AMD Ryzen 7000, 8000 & 9000 Series processors
- Overview - Socket
- AMD AM5
