- Basic Specifications - EAN
- 4719331866082
- Basic Specifications - Manufacturer's Part Number
- 126182

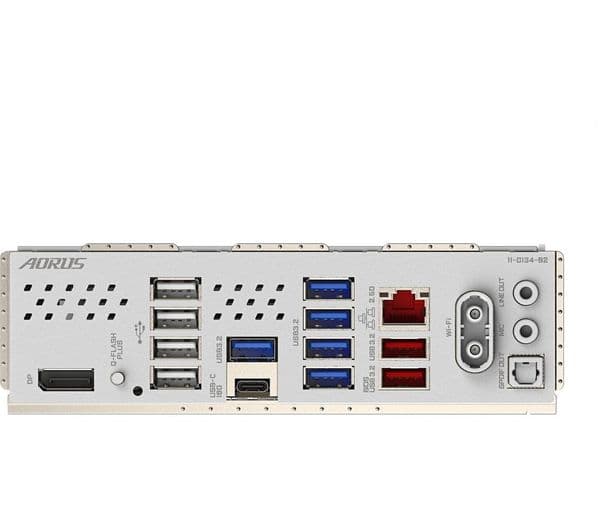

- External connectivity - Audio
- - 3.5 mm jack x 2- SPDIF x 1
- External connectivity - LAN
- 2.5GBe port x 1
- External connectivity - Other external connections
- Antenna connectors x 2
- External connectivity - USB
- - USB Type-C header x 1 - USB 3.2 Gen 2 Type-A ports (red) x 2- USB 2.0/1.1 header x 1
- External connectivity - Video output
- HDMI x 1
- General - Box contents
- - Gigabyte Aorus Elite WiFi6E Ice B850M AM5 Motherboard- SATA cable x 2- WiFi antenna- User manual- G connector x 1- M.2 thick/thin rubber pads x 2
- General - Colour
- White
- General - Dimensions
- 268 x 270 x 68 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Software included
- - Norton® Internet Security (OEM version)- LAN bandwidth management
- General - Weight
- 750 g
- Internal connectivity - BIOS
- - UEFI AMI BIOS- 256 Mbit flash x 1- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Internal connectivity - Buttons
- - Q-Flash Plus x 1- Reset jumper x 1- Reset button x 1- Clear CMOS jumper x 1- Front panel audio x 1
- Internal connectivity - Case
- - Power LED- HDD LED- Reset switch- Front panel audio
- Internal connectivity - Cooling
- - CPU fan header x 3- CPU fan/water cooling pump header x 1- System fan headers x 3- System fan/water cooling pump headers x 1
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1- PCIe 3.0 (x16) x 1- PCIe 5.0 (x16) x 1- PCIe 4.0 (x4) x 1- PCIe 4.0 (x8) x 1
- Internal connectivity - Other internal connections
- - Front panel header x 1- Speaker header x 1- Front panel audio header x 1- Trusted Platform Module header x 1
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin ATX x 1
- Internal connectivity - Sensors
- - Temperature detection- Fan speed sensor- Thermal sensor- Voltage detection- Water cooling flow rate sensor- Fan fail warning sensor
- Internal connectivity - Storage slots
- - SATA x 4- M.2 x 2
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.2 Gen 1 x 1- USB 2.0/1.1 x 2
- Overview - Chipset
- AMD B850
- Overview - Cooling features
- - Heatsink- VRM Thermal Armor Advanced- M.2 Thermal Guard
- Overview - Form factor
- micro ATX
- Overview - Memory slots
- 4 x DDR5 (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 10 or later
- Overview - Processor models supported
- AMD Ryzen 7000, 8000 & 9000 Series processors
- Overview - Socket
- AMD AM5
