- Basic Specifications - EAN
- 4719331865221
- Basic Specifications - Manufacturer's Part Number
- 125861

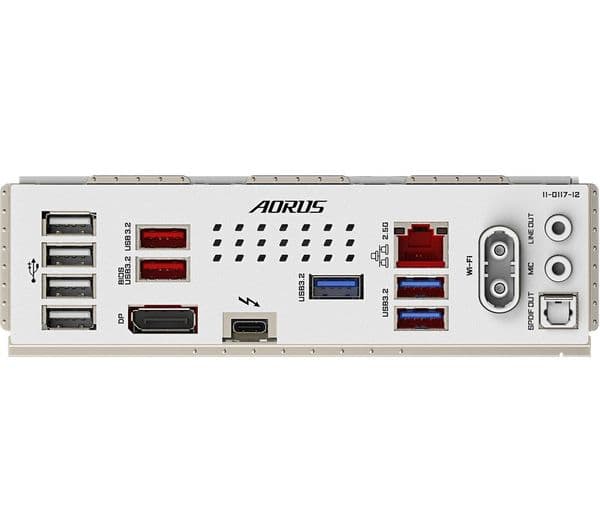

- External connectivity - Audio
- - 3.5 mm jack x 2- Optical S/PDIF Out connector x 1- 2 / 4 / 5.1 / 7.1 channels
- External connectivity - LAN
- - 2.5G Ethernet port x 1- Antenna connectors (2T2R) x 2
- External connectivity - Other external connections
- - WiFi 7 (Tri-band)- Bluetooth 5.4
- External connectivity - USB
- - USB Type-C x 1- USB 2.0 x 4
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

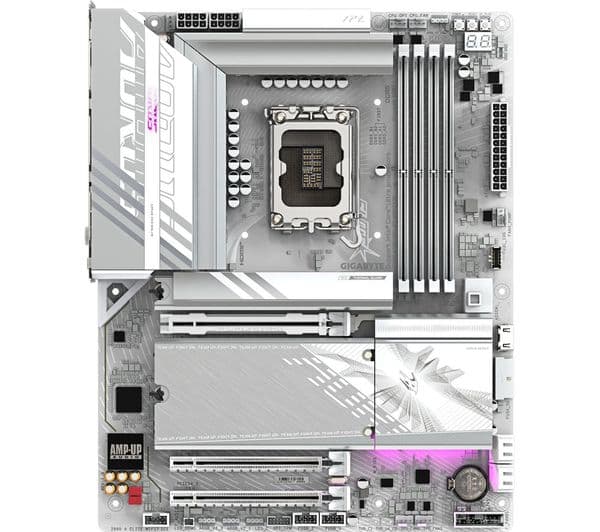

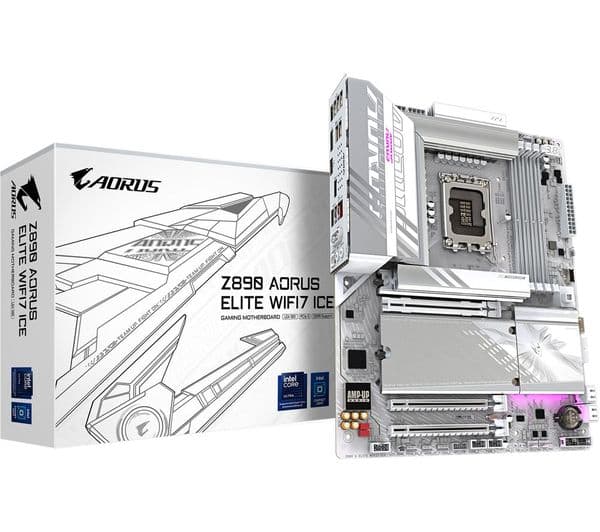

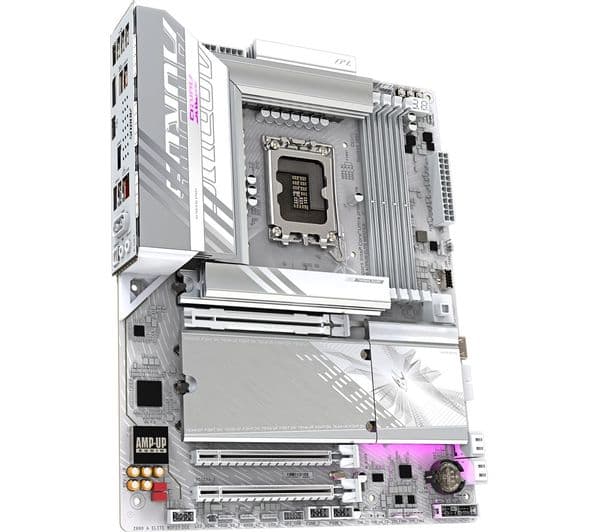

- Gigabyte Aorus Elite WiFi7 ICE Z890 LGA1851 Motherboard
- General - Colour
- White
- General - Dimensions
- 80 x 270 x 340 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 2.33 kg
- Internal connectivity - BIOS
- AMI BIOS
- Internal connectivity - Buttons
- - Power button- Reset button- Q-Flash Plus button- Clear CMOS button
- Internal connectivity - Case
- - Front panel header x 1- Front panel audio header x 1
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU fan/water cooling pump header x 1- System fan headers x 3- System fan/water cooling pump header x 1
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1 (with PCIe UD Slot X)- PCIe 4.0 (x4) x 2
- Internal connectivity - Other internal connections
- - Addressable RGB Gen2 LED strip headers x 3- RGB LED strip header x 1
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin ATX (12 V) x 2
- Internal connectivity - Sensors
- - Voltage sensor- Temperature sensor- Fan speed sensor- Water cooling flow rate sensor- Fan fail warning sensor- Fan speed control
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 4
- Internal connectivity - USB
- - USB Type-C x 1- USB 2.0 x 4
- Overview - Chipset
- Intel® Z890 Express Chipset
- Overview - Cooling features
- - VRM Thermal Armor Advanced- M.2 Thermal Guard- Fan cooling
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11 (64-bit)
- Overview - Processor models supported
- Intel® Core™ Ultra Processors (Series 2)
- Overview - Socket
- Intel® LGA1851
