- Basic Specifications - EAN
- 4719331867058
- Basic Specifications - Manufacturer's Part Number
- 126185

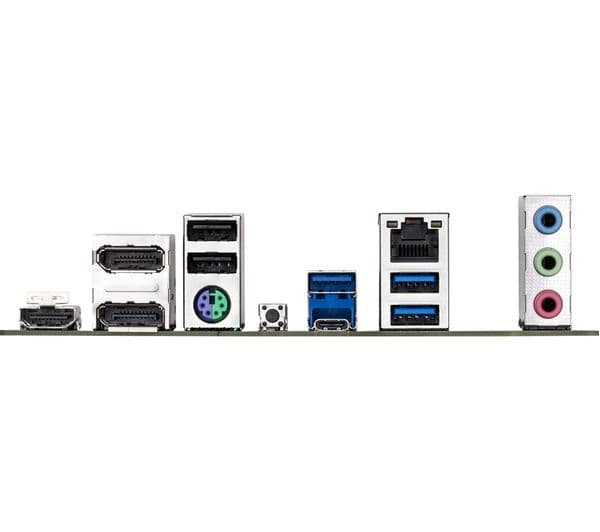

- External connectivity - Audio
- 3.5 mm jack x 3
- External connectivity - LAN
- 2.5 GBe port x 1
- External connectivity - Other external connections
- PS/2 keyboard/mouse port
- External connectivity - USB
- - USB Type-C x 1- USB 2.0 / 1.1 x 4- USB 3.2 Gen 1 x 4- USB 3.2 Gen 2 Type-A x 1
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 2
- General - Box contents

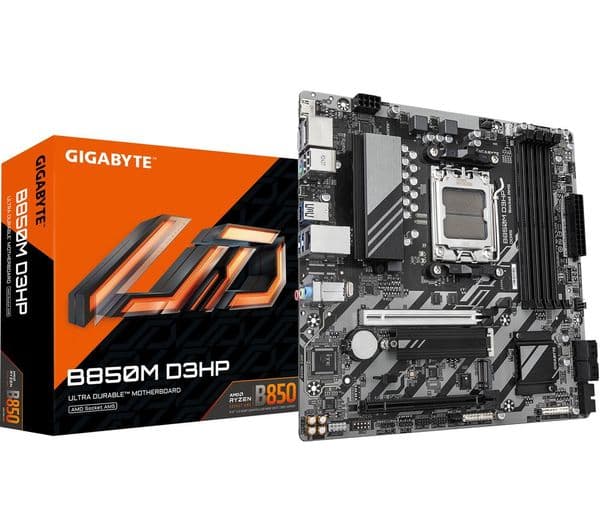

- - Gigabyte B850M D3HP AM5 Motherboard- SATA cable X 1- I/O shield- M.2 rubber pads- User manual
- General - Colour
- Black
- General - Dimensions
- 54 x 265 x 265 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 750 g
- Internal connectivity - BIOS
- - UEFI AMI BIOS- 256 Mbit flash x 1- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Internal connectivity - Buttons
- - Power button- Reset button- Reset jumper- Q-Flash Plus- Clear CMOS jumper
- Internal connectivity - Case
- - Power LED x 1- HDD LED x 1
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU fan / water cooling pump header x 1- System fan headers x 1- System fan / water cooling pump headers x 1
- Internal connectivity - Expansion slots
- - PCIe 3.0 (x16) x 1- PCIe 5.0 (x16) x 1- PCIe 4.0 (x8) x 1- PCIe 4.0 (x4) x 1
- Internal connectivity - Other internal connections
- - Addressable LED RGB strip headers x 3- M.2 Socket 3 connectors x 2- Trusted Platform Module header x 1
- Internal connectivity - Power
- - 24-pin EATX x 1- 8-pin ATX x 1
- Internal connectivity - Sensors
- - Thermal sensor- Fan speed sensor
- Internal connectivity - Storage slots
- - SATA x 4 - M.2 x 2
- Internal connectivity - USB
- - USB Type-C x 1 - USB 3.2 Gen 1 x 1 - USB 2.0 / 1.1 x 2

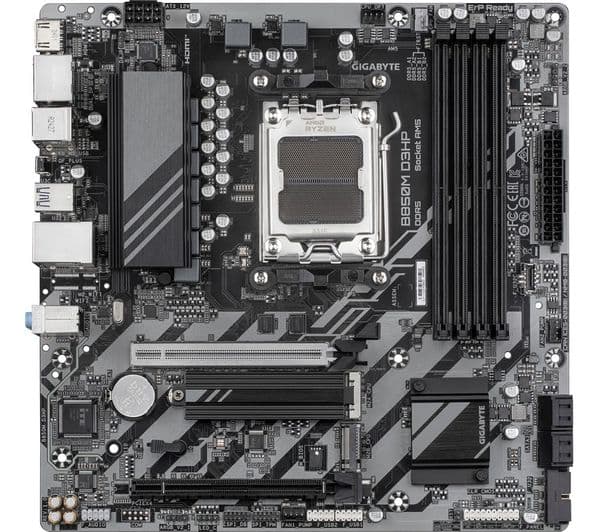

- Overview - Chipset
- AMD B850
- Overview - Cooling features
- Fan cooling
- Overview - Form factor
- Micro ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 10 or later
- Overview - Processor models supported
- AMD Ryzen 7000, 8000 & 9000 Series processors
- Overview - Socket
- AMD AM5
