- Basic Specifications - EAN
- 4719331866518
- Basic Specifications - Manufacturer's Part Number
- 126184

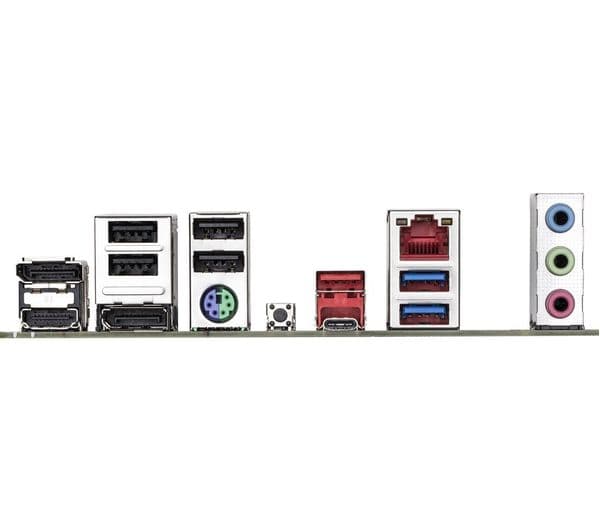

- External connectivity - Audio
- - 3.5 mm jack x 3- RJ-45 port x 1
- External connectivity - LAN
- 2.5GBe port x 1
- External connectivity - Other external connections
- PS/2 keyboard/mouse port
- External connectivity - USB
- - USB Type C x 1- USB 2.0 x 3- USB 3.0 x 2
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 2
- General - Box contents

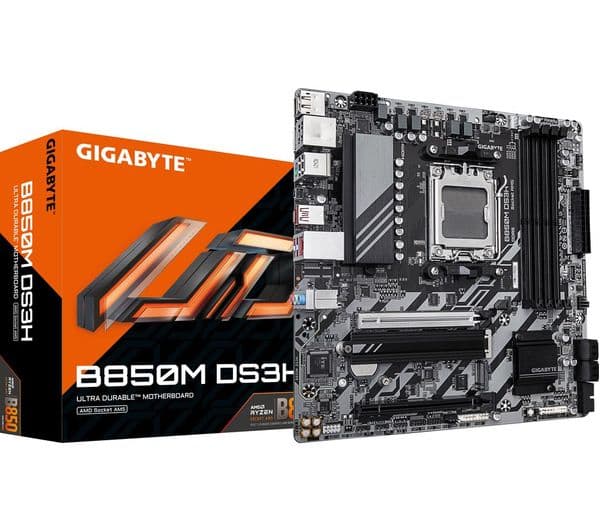

- - Gigabyte B850M DS3H AM5 Motherboard- SATA cables- I/O shield- User manual
- General - Colour
- Black
- General - Dimensions
- 244 x 244 x 68 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 700 g
- Internal connectivity - BIOS
- - UEFI AMI BIOS- 256 Mbit flash x 1- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Internal connectivity - Buttons
- - Power button- Reset button- Q-Flash Plus- Clear CMOS jumper
- Internal connectivity - Case
- - Power LED x 1- HDD LED x 1
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU fan/water cooling pump header x 1- System fan headers x 1- System fan/water cooling pump headers x 1
- Internal connectivity - Expansion slots
- - PCIe (x 16) x 1- PCIe 5.0 (x16) x 1- PCIe 4.0 (x8) x 1- PCIe 4.0 (x4) x 1
- Internal connectivity - Other internal connections
- - Addressable LED RGB strip headers x 3- M.2 Socket 3 connectors X 2- Trusted Platform Module header x 1
- Internal connectivity - Power
- - 24-pin EATX x 1- 8-pin ATX x 1
- Internal connectivity - Sensors
- - Voltage sensor- Fan speed sensor- Temperature sensor- Water cooling flow rate sensor- Fan fail warning sensor- Fan speed control
- Internal connectivity - Storage slots
- - SATA x 4 - M.2 x 2
- Internal connectivity - USB
- - USB Type-C x 1 - USB 3.2 Gen 1 x 3 - USB 2.0/1.1 x 4
- Overview - Chipset
- AMD B850
- Overview - Cooling features
- M.2 thermal guard
- Overview - Form factor
- Micro ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 10 or later
- Overview - Processor models supported
- AMD Ryzen 7000, 8000 & 9000 Series processors
- Overview - Socket
- AMD AM5
