- Basic Specifications - EAN
- 4719331867515
- Basic Specifications - Manufacturer's Part Number
- 126189

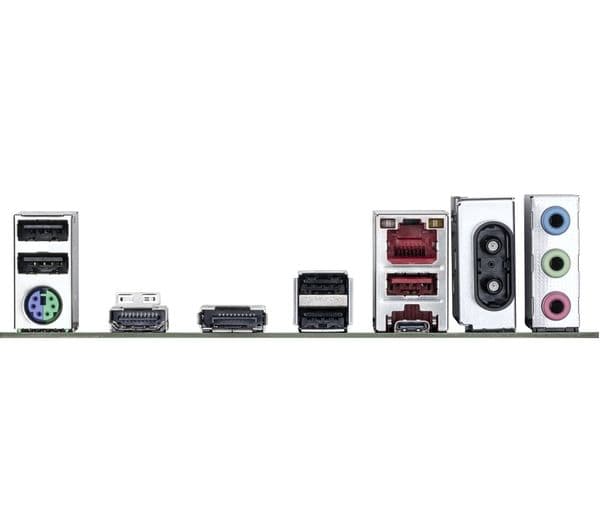

- External connectivity - Audio
- Audio Jacks x 3
- External connectivity - LAN
- Realtek® 2.5GbE LAN chip
- External connectivity - USB
- - USB Type-C x 1- USB 3.2 Gen 2 Type-A x 1- USB 2.0/1.1 Type-A x 4
- External connectivity - Video output
- HDMI x 1
- General - Box contents
- - Gigabyte B860 DS3H WIFI6E LGA1851 Motherboard- Manual- Quick Installation Guide- Antenna- SATA Cables x 2- I/O Shield- One pack of M.2 thick/thin rubber pads
- General - Colour
- Black
- General - Dimensions
- 70 x 244 x 305 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1760 g
- Internal connectivity - BIOS
- - 256 Mbit flash x 1- Use of licensed AMI UEFI BIOS- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Internal connectivity - Buttons
- - Q-Flash Plus- Clear CMOS jumper x 1- Reset jumper x 1
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU fan/water cooling pump header x 1- System fan headers x 2- System fan/water cooling pump headers x 2
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1- PCIe 4.0 (x16) x 4
- Internal connectivity - Other internal connections
- - Addressable RGB LED strip headers x 3- RGB LED strip header x 2- Trusted Platform Module header x 1- Serial port header x 1
- Internal connectivity - Power
- - 24-pin EATX x 1- 8-pin ATX x 1
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 2
- Internal connectivity - USB
- - USB 3.2 Gen 1 (Type-C)- USB 3.2 Gen 1 (Type-A) x 2- USB 2.0/1.1 ports x 4
- Overview - Chipset
- Intel® B860 Express Chipset
- Overview - Cooling features
- - Fan cooling - Water cooling
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Support for Windows 11 64-bitSupport for Windows 10 64-bit* The Intel® NPU driver is only supported on Windows 11
- Overview - Processor models supported
- Intel® Core™ Ultra Processors
- Overview - Socket
- Intel® LGA1851
