- Audio - Compliant Standards
- High Definition Audio
- Audio - Type
- HD Audio (8-channel)
- Basic Specifications - Audio
- HD Audio (8-channel)
- Basic Specifications - Chipset Type
- Intel H610
- Basic Specifications - Compatible Processors
- (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
- Basic Specifications - EAN
- 4719331859732
- Basic Specifications - LAN
- Gigabit Ethernet
- Basic Specifications - Manufacturer's Part Number
- H610M S2H V3 DDR4
- Basic Specifications - Max RAM Size
- 64 GB
- Basic Specifications - Model
- Gigabyte H610M S2H V3 DDR4
- Basic Specifications - Processor Socket
- 1 x LGA1700 Socket
- Basic Specifications - Product Description

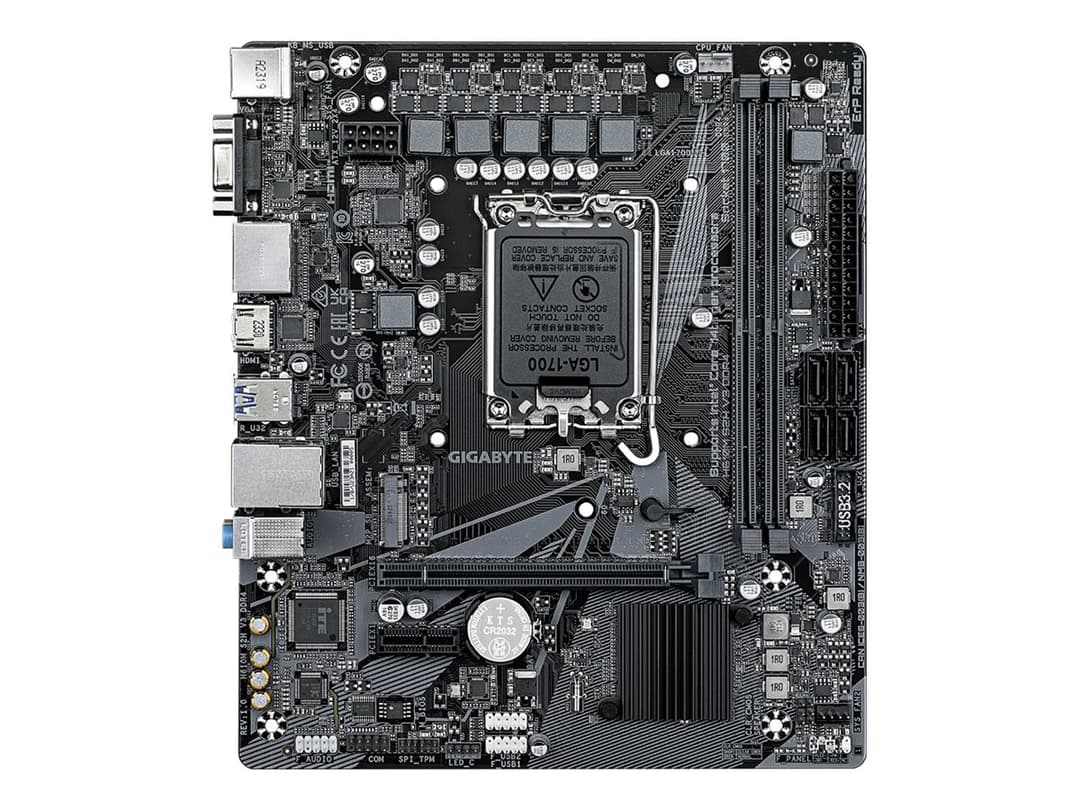

- Gigabyte H610M S2H V3 DDR4 - 1.0 - motherboard - micro ATX - LGA1700 Socket - H610
- Basic Specifications - Product Type
- Motherboard - micro ATX
- Basic Specifications - RAM Supported
- 2 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered
- Basic Specifications - Storage Ports
- 4 x SATA-600 (RAID), 1 x M.2
- Basic Specifications - USB / FireWire Ports
- 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
- Expansion / Connectivity - Expansion Slots
- 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot)
- Expansion / Connectivity - Interfaces
- 2 x DisplayPort ¦ 1 x HDMI ¦ 1 x VGA ¦ 4 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse
- Expansion / Connectivity - Internal Interfaces
- 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPI - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header
- Expansion / Connectivity - Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
- Expansion / Connectivity - Storage Interfaces
- SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2
- Features - BIOS Features
- WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
- Features - BIOS Type
- AMI
- Features - Hardware Features
- 4+1+1 Phase Power Design, Q-Flash, Audio Noise Guard, GIGABYTE Smart Fan 6, Anti-Sulfur Design, Dr.MOS MOSFET, Solid Pin Power Connectors, 50A Power Stage
- Features - Hardware Monitoring
- System voltage, temperature detection, fan fail warning, water cooling flow rate, fan speed detection, fan control
- General - Chipset Type
- Intel H610
- General - Compatible Processors
- (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
- General - Max Processors Qty
- 1
- General - Processor Socket
- LGA1700 Socket
- General - Product Type
- Motherboard - micro ATX
- LAN - Network Interfaces
- Gigabit Ethernet
- Miscellaneous - Depth
- 19.3 cm
- Miscellaneous - Software Included
- Norton Internet Security (OEM Version)
- Miscellaneous - Width
- 23 cm
- Supported RAM - Bus Clock
- 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz
- Supported RAM - Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
- Supported RAM - Max Size
- 64 GB
- Supported RAM - Registered or Buffered
- Unbuffered
- Supported RAM - Supported RAM Integrity Check
- Non-ECC, ECC (operate in non-ECC mode)
- Supported RAM - Technology
- DDR4
