- Basic Specifications - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at
- Basic Specifications - Device Type
- Switch - 24 ports - Managed
- Basic Specifications - EAN
- 0790069373053
- Basic Specifications - Enclosure Type
- Rack-mountable 1U
- Basic Specifications - Features
- Flow control, full duplex capability, Layer 2 switching, DHCP support, PoE, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, TFTP support, ACL support, QoS, DHCP server, Safeguard Engine, D-Link Green Technology
- Basic Specifications - Interfaces
- Gigabit Ethernet
- Basic Specifications - Jumbo Frame Support
- 10000 bytes
- Basic Specifications - MAC Address Table Size
- 16K entries
- Basic Specifications - Manufacturer's Part Number
- DGS-1210-28P
- Basic Specifications - Model

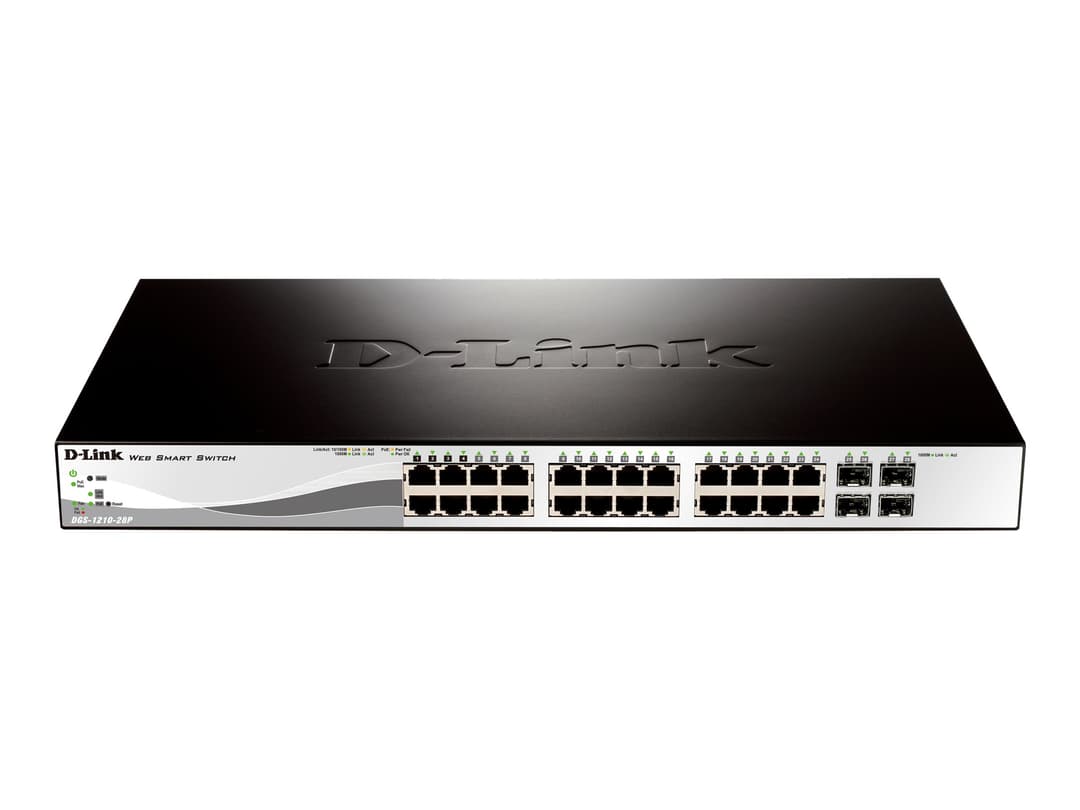

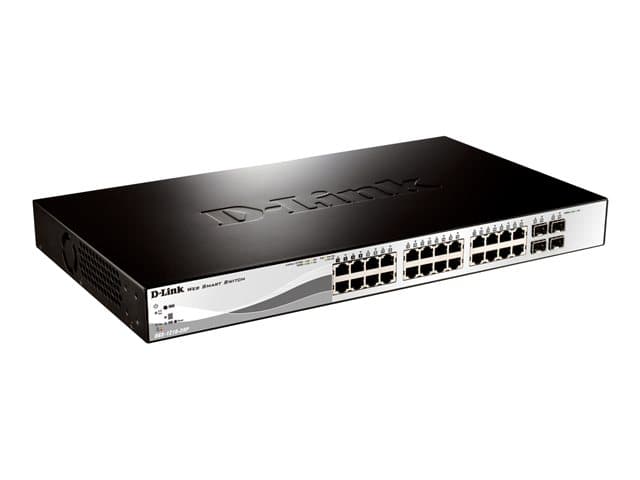

- D-Link Web Smart DGS-1210-28P
- Basic Specifications - Performance
- Switching capacity: 56 Gbps ¦ Forwarding performance: 41.7 Mpps
- Basic Specifications - Ports
- 24 x 10/100/1000 (PoE) + 4 x Gigabit SFP
- Basic Specifications - Power
- AC 120/230 V (50/60 Hz)
- Basic Specifications - Power Over Ethernet (PoE)
- PoE
- Basic Specifications - Product Description
- D-Link Web Smart DGS-1210-28P - switch - 24 ports - Managed - rack-mountable
- Basic Specifications - Remote Management Protocol
- SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
- Basic Specifications - Subtype
- Gigabit Ethernet
- Environmental Parameters - Humidity Range Operating
- 0 - 95%
- Environmental Parameters - Humidity Range Storage
- 0 - 95%
- Environmental Parameters - Max Operating Temperature
- 50 °C
- Environmental Parameters - Max Storage Temperature
- 70 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -20 °C
- Expansion / Connectivity - Interfaces
- 24 x 1000Base-T RJ-45 PoE ¦ 4 x SFP (mini-GBIC)
- General - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at
- General - Device Type
- Switch - 24 ports - Managed
- General - Enclosure Type
- Desktop, rack-mountable 1U
- General - Features
- Flow control, full duplex capability, Layer 2 switching, DHCP support, PoE, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, TFTP support, ACL support, QoS, DHCP server, Safeguard Engine, D-Link Green Technology
- General - Flash Memory
- 16 MB
- General - Jumbo Frame Support
- 10000 bytes
- General - MAC Address Table Size
- 16K entries
- General - Performance
- Switching capacity: 56 Gbps ¦ Forwarding performance: 41.7 Mpps
- General - Ports
- 24 x 10/100/1000 (PoE) + 4 x Gigabit SFP
- General - Power Over Ethernet (PoE)
- PoE
- General - RAM
- 128 MB
- General - Remote Management Protocol
- SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
- General - Status Indicators
- Port transmission speed, power, link OK, link/activity
- General - Subtype
- Gigabit Ethernet
- Miscellaneous - Compliant Standards
- FCC Class A certified, C-Tick, cUL, VCCI Class A ITE, IC Class A
- Power - Power Device
- Internal power supply
- Power - Voltage Required
- AC 120/230 V (50/60 Hz)
