- Basic Specifications - EAN
- 4719331864682
- Basic Specifications - Manufacturer's Part Number
- 125597

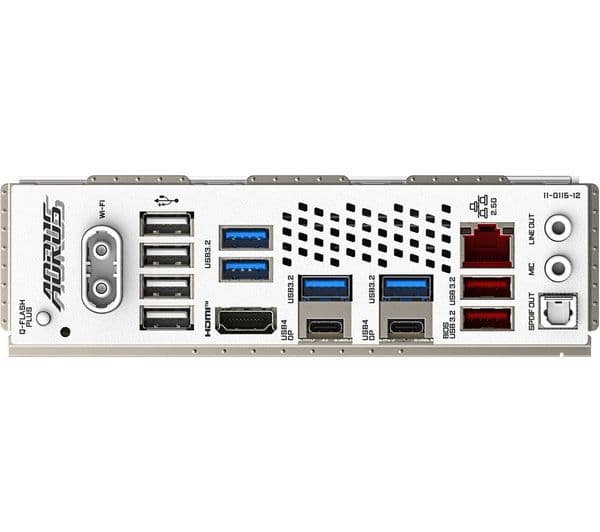

- External connectivity - Audio
- - 3.5 mm jack x 2
- External connectivity - LAN
- SMA Antenna connectors (2T2R) x 2
- External connectivity - USB
- - USB Type-C x 2- USB 3.2 x 6- USB 2.0 x 4
- External connectivity - Video output
- HDMI x 1

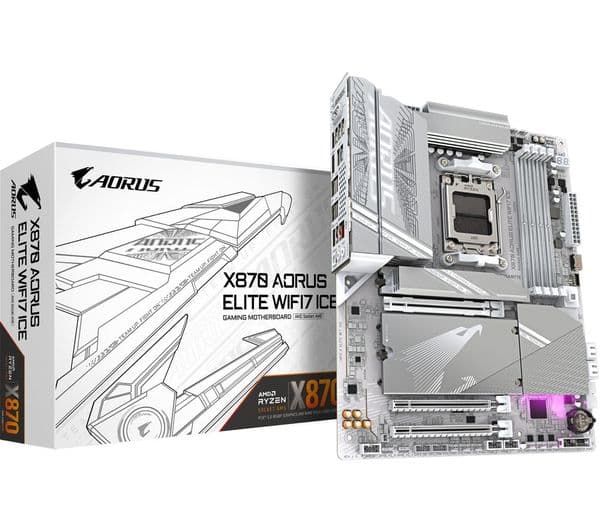

- General - Box contents
- - Gigabyte Aorus Elite Ice X870 AM5 WiFi7 Motherboard- Manual- Quick Installation Guide- Antenna- SATA Cables x 2- G Connector x 1
- General - Colour
- Silver
- General - Dimensions
- 80 x 244 x 305 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 2.28 kg
- Internal connectivity - BIOS
- UEFI AMI BIOS
- Internal connectivity - Buttons
- - Power button- Reset button- Q-Flash Plus- Clear CMOS button
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU fan/water cooling pump header x 1
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1- PCIe 4.0 (x16) x 1- PCIe 3.0 (x16) x 1
- Internal connectivity - Other internal connections
- - Addressable RGB Gen2 LED strip headers x 3- RGB LED strip header x 1- SPI TPM header x 1
- Internal connectivity - Power
- - 24-pin EATX x 1- 8-pin ATX x 2
- Internal connectivity - Sensors
- Temperature sensor x 2
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 4
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.2 x 1- USB 2.0 x 2
- Overview - Chipset
- AMD X870
- Overview - Cooling features
- - Fan cooling - Smart Fan 6- AIO fan control
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11 or later
- Overview - Processor models supported
- AMD Ryzen 9000 Series processors
- Overview - Socket
- AMD AM5
