- Basic Specifications - EAN
- 4719331867164
- Basic Specifications - Manufacturer's Part Number
- 126192

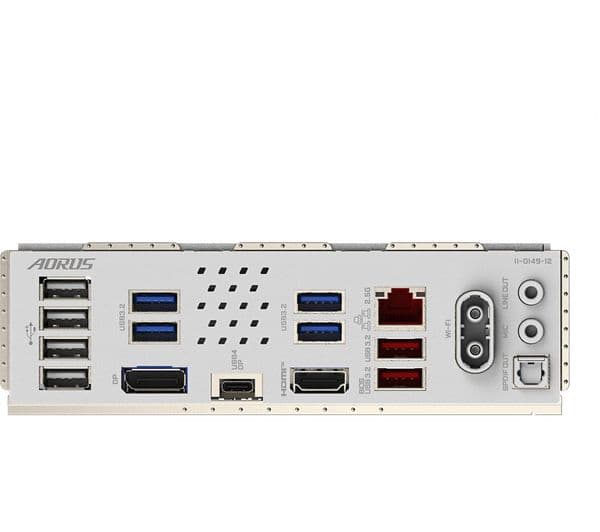

- External connectivity - Audio
- Realtek Audio CODEC
- External connectivity - LAN
- - Ethernet port x 1- SMA Antenna connectors (2T2R) x 2
- External connectivity - Other external connections

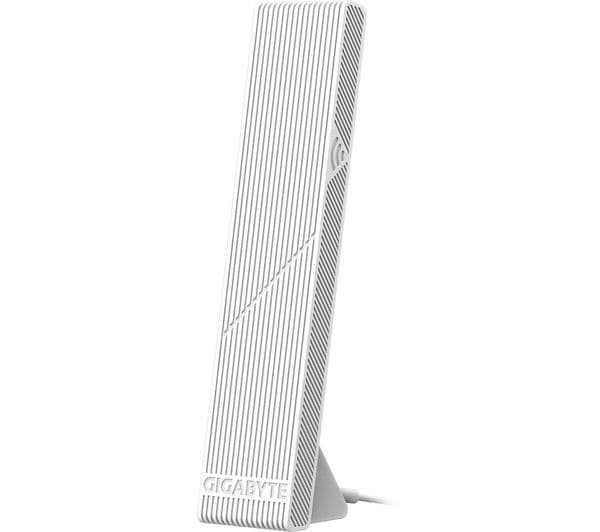

- WiFi 6E
- External connectivity - USB
- - USB Type-C x 1- USB 2.0 x 4
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1

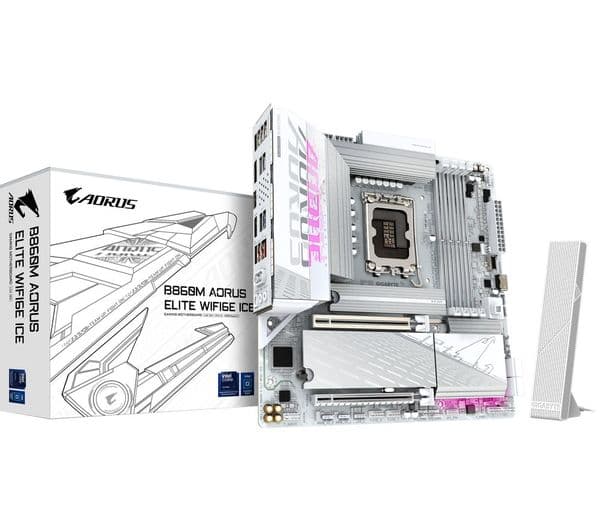

- General - Box contents
- - Gigabyte Aorus Elite B860M LGA1851 Motherboard- Antenna x 1- SATA cables x 2- G Connector x 1- M.2 thick/thin rubber pad pack x 3- User manual- Quick installation guide
- General - Colour
- White
- General - Dimensions
- 74 x 244 x 244 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1.68 kg
- Internal connectivity - BIOS
- - 256 Mbit flash - UEFI AMI BIOS- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Internal connectivity - Buttons
- - Power - Reset button- Q-Flash Plus
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x4) x 1 - PCIe 4.0 (x4) x 2
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin ATX x 2
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 3
- Overview - Chipset
- Intel® B860 Express
- Overview - Cooling features
- Comprehensive Thermal
- Overview - Form factor
- Mini ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11
- Overview - Processor models supported
- Intel ® Core™ Ultra Processors
- Overview - Socket
- Intel® LGA1851
