- Basic Specifications - EAN
- 4719331864903
- Basic Specifications - Manufacturer's Part Number
- 125863

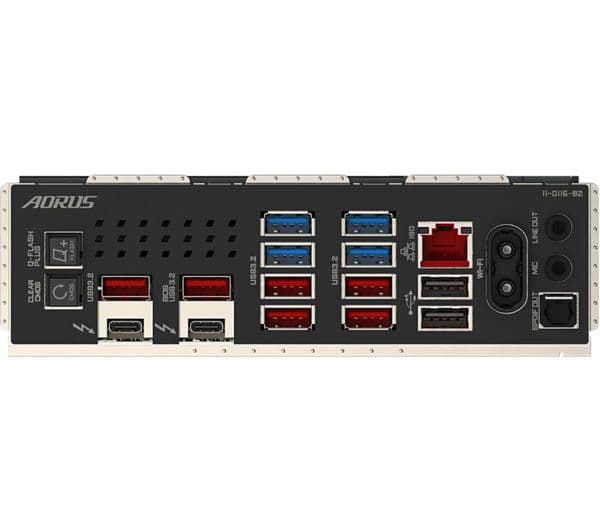

- External connectivity - Audio
- - 3.5 mm jacks x 2-Optical S/PDIF out x 1
- External connectivity - LAN
- Marvell® AQtion AQC113C 10GbE LAN chip
- External connectivity - Other external connections
- - WiFi antenna connectors x 2- Q-Flash plus button- RJ-45 port x 1
- External connectivity - USB
- - USB Type-C x 8- USB 3.0 x 6- USB 2.0 x 2
- External connectivity - Video output
- - HDMI x 2- DisplayPort x 4
- General - Box contents

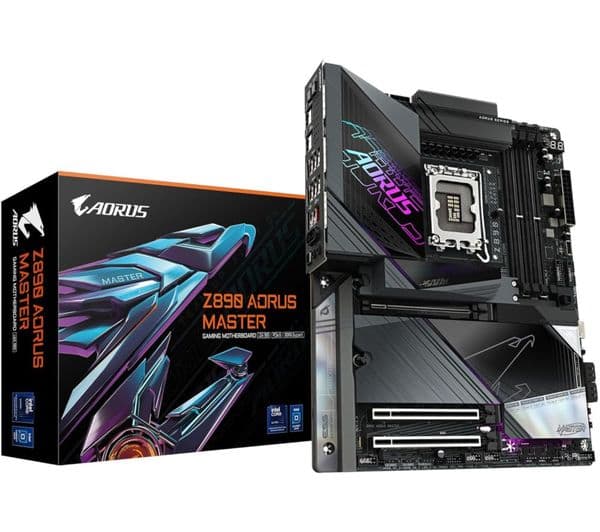

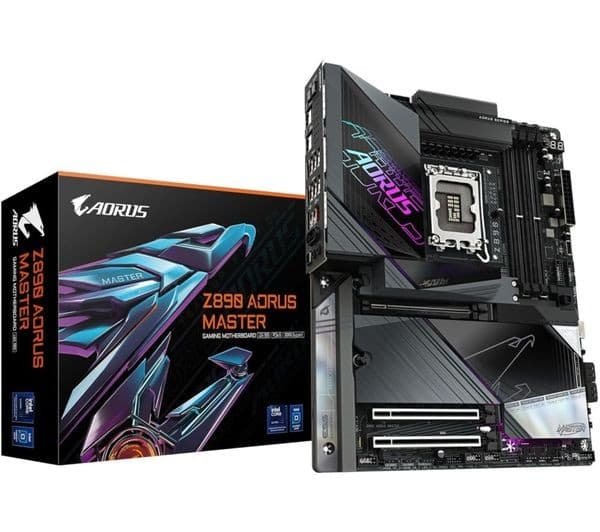

- - Gigabyte AORUS MASTER Z890 LGA1851 Motherboard- Antenna x 1- Noise detection cable x 1- Thermistor cables x 2- SATA cables x 2- G connector- DDR Wind blade- Quick installation guide- User manual
- General - Colour
- Black
- General - Dimensions
- 80 x 305 x 244 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 2.6 kg
- Internal connectivity - BIOS
- UEFI AMI BIOS
- Internal connectivity - Buttons
- - Reset button- Reset jumper- Q-Flash Plus button- Clear CMOS button
- Internal connectivity - Case
- - Power switch- Reset switch- Front panel header- Front panel audio header
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU fan / water cooling fan header x 1- System fan headers x 4- System fan / water cooling pump headers x 4
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16 slot) x 1- PCIe 4.0 (x16 slot) x 3
- Internal connectivity - Other internal connections
- - Thunderbolt x 2- ARGB Gen2 LED strip headers x 4- RGB LED strip header x 1- SPI TPM header x 1
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin 12V ATX x 2
- Internal connectivity - Sensors
- - Voltage detection- Temperature detection- Fan speed detection- Noise detection- Water cooling flow rate detection- Fan fail warning
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s) - M.2 Gen4 x 5
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.2 x 2- USB 2.0 x 2
- Overview - Chipset
- Intel® Z890
- Overview - Cooling features
- - Fan cooling- Water cooling- Water pump headers - VRM/memory thermal sensors
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11
- Overview - Processor models supported
- Intel® Core™ Ultra Processors
- Overview - Socket
- Intel® LGA1851
