- Basic Specifications - Compression Format
- H.265+, H.265, H.264+, H.264
- Basic Specifications - Device Type
- NVR - 4 channels - networked
- Basic Specifications - Dimensions (WxDxH)
- 24.62 cm x 14.82 cm x 4.5 cm
- Basic Specifications - EAN
- 4897098688755
- Basic Specifications - Hard Drive(s) Supported
- Quantity: 1 - total capacity: 10 TB
- Basic Specifications - Image Resolution
- 3840x2160, 1920x1080, 1680x1024, 1440x900, 1280x1024, 1280x720, 1024x768
- Basic Specifications - IP Cameras Supported
- 4
- Basic Specifications - Manufacturer Warranty
- 3 years
- Basic Specifications - Manufacturer's Part Number
- VIGI NVR1004H-4P
- Basic Specifications - Model

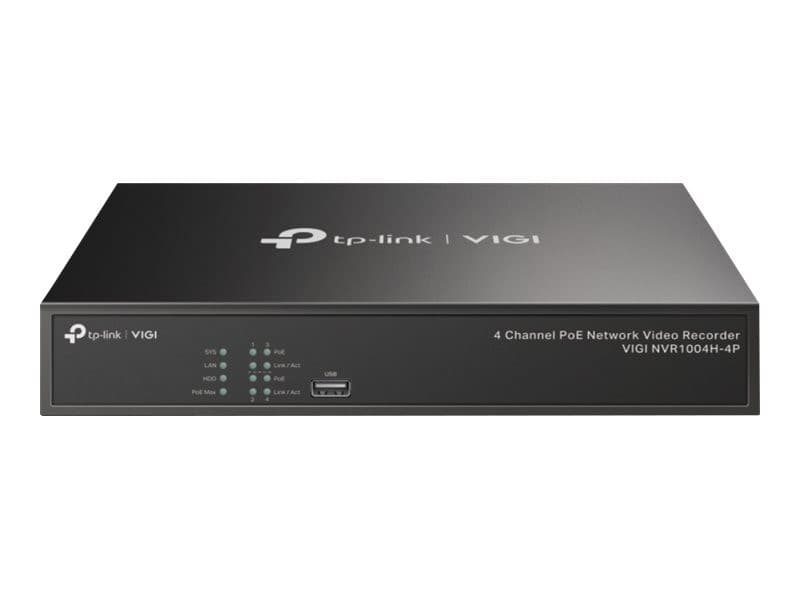

- TP-Link VIGI NVR1004H-4P V1
- Basic Specifications - Product Description
- TP-Link VIGI NVR1004H-4P V1 - standalone NVR - 4 channels
- Basic Specifications - Voltage
- 53.5 V
- Connections - Audio Input Ports
- RCA x 1
- Connections - Audio Output Ports
- RCA x 1
- Connections - Network Port
- 10/100Base-T
- Connections - Other Ports
- USB 2.0 x 2
- Connections - Video Input Ports
- RJ-45 x 4
- Connections - Video Output Ports
- HDMI x 1, VGA x 1
- Dimensions & Weight - Depth
- 14.82 cm
- Dimensions & Weight - Height
- 4.5 cm
- Dimensions & Weight - Width
- 24.62 cm
- Environmental Parameters - Max Operating Temperature
- 55 °C
- Environmental Parameters - Min Operating Temperature
- -10 °C
- General - Compliant Standards
- IEEE 802.3af, IEEE 802.3at, Plug and Play
- General - Compression Format
- H.265+, H.265, H.264+, H.264
- General - Device Type
- NVR
- General - Image Resolution
- 3840x2160, 1920x1080, 1680x1024, 1440x900, 1280x1024, 1280x720, 1024x768
- General - IP Cameras Supported
- 4
- General - Package Content
- HDD screws, mouse
- General - Video Channels
- 4
- General - Warranty
- 3 years
- Hard Drive - Interface
- Serial ATA
- Hard Drive - Quantity Supported
- 1
- Hard Drive - Supported Max Total Capacity
- 10 TB
- Networking - Features
- 53W PoE+ power budget, ONVIF support
- Networking - Network Interfaces
- Ethernet 10Base-T/100Base-TX
- Networking - Supported Protocols
- TCP/IP, DHCP, DNS, NTP, UPnP
- Power - Power Consumption
- 4.25 Watt
- Power - Power Consumption Details
- Without HDD
- Power - Voltage
- 53.5 V
- Security DVR - Features
- 80 Mbps Incoming Bandwidth, 60 Mbps Outgoing Bandwidth
- Security DVR - Networked
- Yes
- Security DVR - Playback Search
- Date / time, event
- Video Server - Features
- Two-way audio support
