- Basic Specifications - AirPrint Enabled
- Yes
- Basic Specifications - Automatic Duplexing
- Automatic
- Basic Specifications - Bypass Feeder Capacity
- 1 sheet
- Basic Specifications - Connection Availability
- Yes
- Basic Specifications - Device Type
- Multifunction printer
- Basic Specifications - Dimensions (WxDxH)
- 41 cm x 44.4 cm x 40.1 cm
- Basic Specifications - Document Feeder Capacity
- 50 sheets
- Basic Specifications - EAN
- 4977766823968
- Basic Specifications - Environmental Standards
- ENERGY STAR Qualified, Blue Angel
- Basic Specifications - Fax capability
- No
- Basic Specifications - Interface
- USB 2.0, Wi-Fi(n), Gigabit LAN
- Basic Specifications - Manufacturer's Part Number
- DCPL3560CDWZU1
- Basic Specifications - Max Copying Resolution
- Up to 600 x 600 dpi (mono) / up to 600 x 600 dpi (colour)
- Basic Specifications - Max Copying Resolution Class
- Up to 600 x 600 dpi (mono) / up to 600 x 600 dpi (colour)
- Basic Specifications - Max Copying Speed
- Up to 26 ppm (mono) / up to 26 ppm (colour)
- Basic Specifications - Max Media Size
- A4
- Basic Specifications - Max Printing Resolution
- Up to 600 x 2400 dpi (mono) / up to 600 x 2400 dpi (colour)
- Basic Specifications - Max Printing Resolution Class
- Up to 600 x 2400 dpi (mono) / up to 600 x 2400 dpi (colour)
- Basic Specifications - Max Printing Speed
- Up to 26 ppm (mono) / up to 26 ppm (colour)
- Basic Specifications - Media Size
- 76.2 x 116 mm (min) - Legal (216 x 356 mm), A4 (210 x 297 mm) (max)
- Basic Specifications - Media Type
- Plain paper, thin paper, thick paper, recycled paper, bond paper, labels, envelopes, glossy paper
- Basic Specifications - Model
- Brother DCP-L3560CDW
- Basic Specifications - Office Machine Features
- Scan to e-mail, scan to OCR, scan to image, scan to folder, scan to network folder, scan to FTP, scan to SharePoint, scan to SMB, N-Up printing, scan to PDF, scan to Secure PDF
- Basic Specifications - Original Type
- Sheets
- Basic Specifications - Output Trays Capacity
- 150 sheets
- Basic Specifications - Power
- AC 220-240 V (50/60Hz)
- Basic Specifications - Printing Technology
- LED (colour)
- Basic Specifications - Product Description

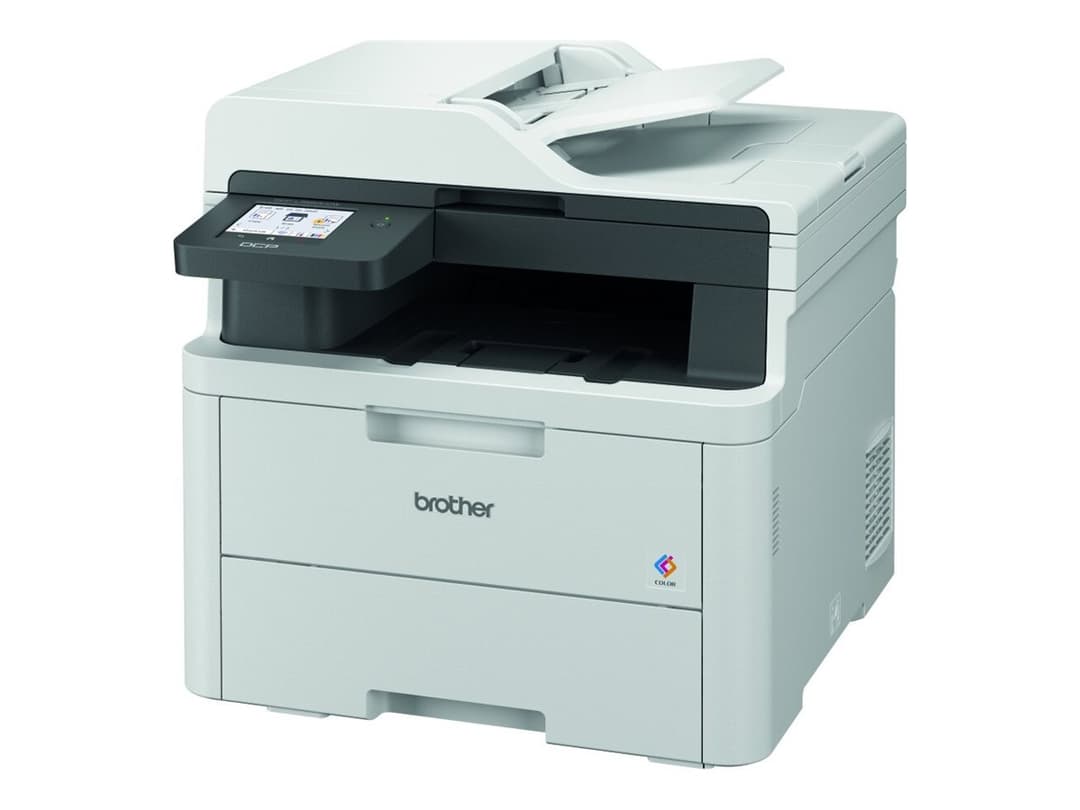

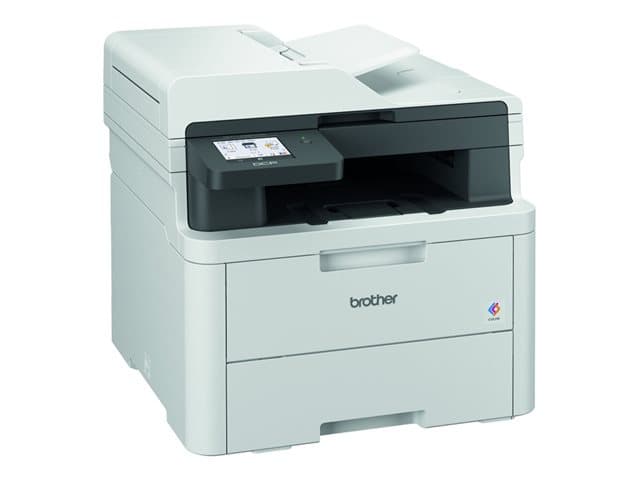

- Brother DCP-L3560CDW - multifunction printer - colour
- Basic Specifications - Product Type
- Multifunction printer
- Basic Specifications - Recommended Monthly Volume
- Up to 3000 pages
- Basic Specifications - Scanning
- 1200 x 1200 dpi
- Basic Specifications - Standard Media Capacity
- 250 sheets
- Basic Specifications - Weight
- 20 kg
- Connections - Interfaces
- 1 x USB 2.0 ¦ 1 x Gigabit LAN
- Connections - Operating System Support
- Windows 11, Linux, Apple Mac OS, Chrome OS
- Connections - Security Protocols & Features
- 802.1x, active directory, LDAP, automatic intrusion detection, digitally-signed firmware, IP filtering, EAP-MD5, restrict network protocols, secure function lock v3, Secure Print, setting lock, syslog reporting, store print log, Wi-Fi Direct, WEP, WPA-PSK, TKIP, AES, WPA2-PSK, port-based network access control, APOP, SMTP, SSL, TLS, POP3, SNMP 3, EAP-FAST, PEAP, WPA3-SAE, EAP-TTLS, Kerberos, IPsec
- Copying - Copying Features
- ID Copy, Sort, N-in-1, Stack
- Copying - Max Copying Resolution
- Up to 600 x 600 dpi (mono) / up to 600 x 600 dpi (colour)
- Copying - Max Copying Resolution Class
- Up to 600 x 600 dpi (mono) / up to 600 x 600 dpi (colour)
- Copying - Max Copying Speed
- Up to 26 ppm (mono) / up to 26 ppm (colour)
- Copying - Max Document Enlargement
- 400%
- Copying - Max Document Reduction
- 25%
- Copying - Maximum Copies
- 999
- Dimensions & Weight - Depth
- 44.4 cm
- Dimensions & Weight - Height
- 40.1 cm
- Dimensions & Weight - Weight
- 20 kg
- Dimensions & Weight - Width
- 41 cm
- Dimensions & Weight (Shipping) - Shipping Depth
- 53.6 cm
- Dimensions & Weight (Shipping) - Shipping Height
- 53.3 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 23.3 kg
- Dimensions & Weight (Shipping) - Shipping Width
- 49.7 cm
- Document & Media Handling - Bypass Feeder Capacity
- 1 sheet
- Document & Media Handling - Document & Media Handling Details
- Input tray - 250 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 163 g/m² ¦ Bypass tray - 1 sheet size: 76.2 x 116 mm - 216 x 355.6 mm weight: 60 g/m² - 163 g/m² ¦ Output tray - 150 sheets ¦ ADF - 50 sheets size: 105 x 147.3 mm - 215.9 x 355.6 mm weight: 60 g/m² - 105 g/m²
- Document & Media Handling - Document Feeder Capacity
- 50 sheets
- Document & Media Handling - Max Media Size
- A4/Legal
- Document & Media Handling - Max Media Weight
- 163 g/m²
- Document & Media Handling - Min Media Size
- 76.2 x 116 mm
- Document & Media Handling - Min Media Weight
- 60 g/m²
- Document & Media Handling - Original Type
- Sheets
- Document & Media Handling - Output Trays Capacity
- 150 sheets
- Document & Media Handling - Speed Details
- Printing: up to 26 ppm (A4) - B/W ¦ Printing: up to 26 ppm (A4) - colour ¦ Copying: up to 26 ppm (A4) - B/W ¦ Copying: up to 26 ppm (A4) - colour ¦ Scanning: up to 27 ipm (A4) - B/W (ISO/IEC 17991) ¦ Scanning: up to 21 ipm (A4) - colour (ISO/IEC 17991) ¦ Printing: up to 10 spm (A4) - B/W duplex ¦ Printing: up to 10 spm (A4) - colour duplex
- Document & Media Handling - Standard Media Capacity
- 250 sheets
- Document & Media Handling - Supported Envelope Sizes
- International DL (110 x 220 mm), Com-10 (105 x 241 mm), International C5 (162 x 229 mm), Monarch (98.4 x 190.5 mm)
- Document & Media Handling - Supported Media Sizes
- ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), JIS B5 (182 x 257 mm), B5 (176 x 250 mm), JIS B6 (128 x 182 mm), Folio (203 x 330 mm), 195 x 270 mm, 76.2 x 116 mm
- Document & Media Handling - Supported Media Type
- Plain paper, thin paper, thick paper, recycled paper, bond paper, labels, envelopes, glossy paper
- Environmental Parameters - Humidity Range Operating
- 20 - 80%
- Environmental Parameters - Max Operating Temperature
- 32.5 °C
- Environmental Parameters - Min Operating Temperature
- 10 °C
- Environmental Parameters - Sound Emission
- 47 dBA (operating)
- Environmental Standards - Blue Angel Compliant
- Yes
- Environmental Standards - ENERGY STAR Certified
- Yes
- Environmental Standards - Nordic Swan Ecolabel
- Yes
- General - AirPrint Enabled
- Yes
- General - Connection Availability
- Yes
- General - Device Type
- Multifunction printer
- General - Display Colour Support
- Colour
- General - Display Features
- Touch screen
- General - Interface
- USB 2.0, Wi-Fi(n), Gigabit LAN
- General - Office Machine Features
- Scan to e-mail, scan to OCR, scan to image, scan to folder, scan to network folder, scan to FTP, scan to SharePoint, scan to SMB, N-Up printing, scan to PDF, scan to Secure PDF
- General - Printer Fonts
- Scalable PCL x 73 ¦ Bitmapped PCL x 12 ¦ Scalable PostScript x 66
- General - Printing Technology
- LED - colour
- General - Recommended Monthly Volume
- Up to 3000 pages
- Memory - Standard Memory
- 512 MB
- Miscellaneous - Consumables Included
- 1 x toner cartridge (black) - up to 1000 pages ISO/IEC 19798 ¦ 1 x toner cartridge (cyan) - up to 1000 pages ISO/IEC 19798 ¦ 1 x toner cartridge (magenta) - up to 1000 pages ISO/IEC 19798 ¦ 1 x toner cartridge (yellow) - up to 1000 pages ISO/IEC 19798 ¦ 1 x drum - up to 20000 pages 1 page per job - Brother DR248CL ¦ 1 x belt - up to 50000 pages 2 pages per job - Brother BU229CL ¦ 1 x waste toner collector - up to 50000 pages 5 pages per job - Brother WT229CL
- Miscellaneous - First Copy Out Time B/W
- 15.5 sec
- Miscellaneous - First Copy Out Time Colour
- 15.5 sec
- Power - Power Consumption Operational
- 560 Watt
- Power - Power Consumption Sleep
- 10 Watt
- Power - Power Consumption Standby
- 70 Watt
- Power - Voltage Required
- AC 220-240 V (50/60Hz)
- Printing - Automatic Duplexing
- Yes
- Printing - First Print Out Time B/W
- 13.5 sec
- Printing - First Print Out Time Colour
- 13.5 sec
- Printing - Max Printing Resolution
- Up to 600 x 2400 dpi (mono) / up to 600 x 2400 dpi (colour)
- Printing - Max Printing Resolution Class
- Up to 600 x 2400 dpi (mono) / up to 600 x 2400 dpi (colour)
- Printing - Max Printing Speed
- Up to 26 ppm (mono) / up to 26 ppm (colour)
- Printing - Printer Drivers / Emulations
- PCL 5e, PCL 5c, PCL 6 (XL 3.0), BR-Script 3, PDF 1.7
- Scanning - Colour Depth
- 24-bit
- Scanning - Colour Depth (Internal)
- 48-bit
- Scanning - Grayscale Depth
- 8-bit
- Scanning - Interpolated Resolution
- 19200 x 19200 dpi
- Scanning - Optical Resolution
- 1200 x 1200 dpi
- Scanning - Scan Element
- CIS
