- Basic Specifications - EAN
- 4719331866112
- Basic Specifications - Manufacturer's Part Number
- 126130
- External connectivity - Audio
- - 3.5 mm jack x 2- Realtek® ALC4080 CODEC- High-Definition Audio- 2-channel
- External connectivity - LAN
- - SMA Antenna connectors (2T2R) x 2- RJ-45 port X 1
- External connectivity - USB
- - USB Type-C x 2- USB 3.2 x 4- USB 2.0 x 2
- External connectivity - Video output
- HDMI x 1

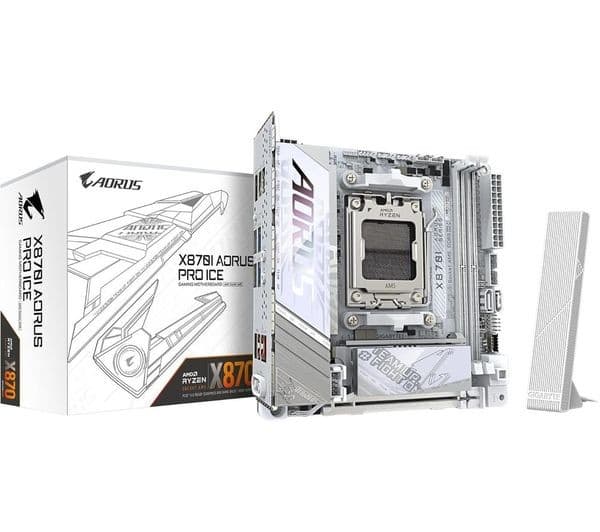

- General - Box contents

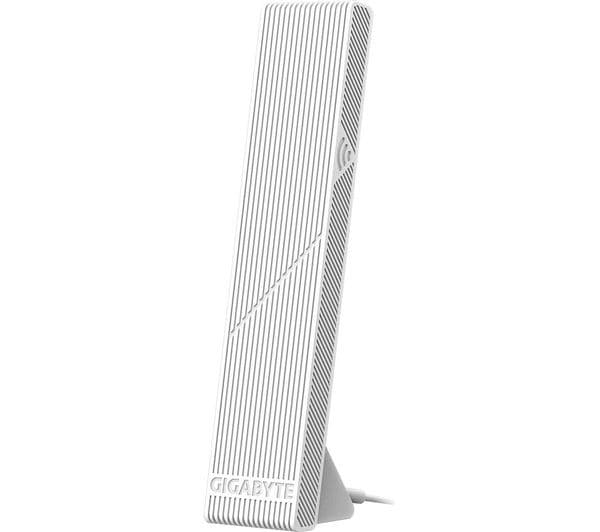

- - Gigabyte Aorus Pro Ice X870I AM5 Motherboard- Manual- Quick Installation Guide- Antenna x 1- SATA cables x 2- Fan power extension cables x 2- Computer case screws- M.2 screw- M.2 thermal pads x 2
- General - Colour
- White
- General - Dimensions
- 240 x 170 x 170 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1.28 kg
- Internal connectivity - BIOS
- UEFI AMI BIOS
- Internal connectivity - Buttons
- - Power button- Reset button- Q-Flash Plus- Clear CMOS button
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU fan/water cooling pump header x 1- System fan header x 1
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1- PCIe 4.0 (x8) x 1- PCIe 4.0 (x4) x 2
- Internal connectivity - Other internal connections
- - Addressable RGB LED strip headers x 2- RGB LED strip header x 1- SPI TPM header x 1
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin ATX x 1
- Internal connectivity - Sensors
- Temperature sensor x 2
- Internal connectivity - Storage slots
- - SATA x 2 (6 GB/s)- M.2 x 2
- Internal connectivity - USB
- - USB Type-C x 2- USB 3.2 x 4- USB 2.0 x 2
- Overview - Chipset
- AMD X870
- Overview - Cooling features
- - Fan cooling - Smart Fan 6- AIO fan control
- Overview - Form factor
- Mini ITX
- Overview - Memory slots
- 2 x DIMM (Max RAM: 128 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11 or later
- Overview - Processor models supported
- AMD Ryzen 9000 Series processors
- Overview - Socket
- AMD AM5
