- Basic Specifications - EAN
- 4719331872120
- Basic Specifications - Manufacturer's Part Number
- 127360
- External connectivity - Audio
- - 3.5mm jacks x 6- Supports S/PDIF output
- External connectivity - LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- External connectivity - USB
- - USB Type-C x 1- USB 3.2 x 2- USB 2.0 x 4
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

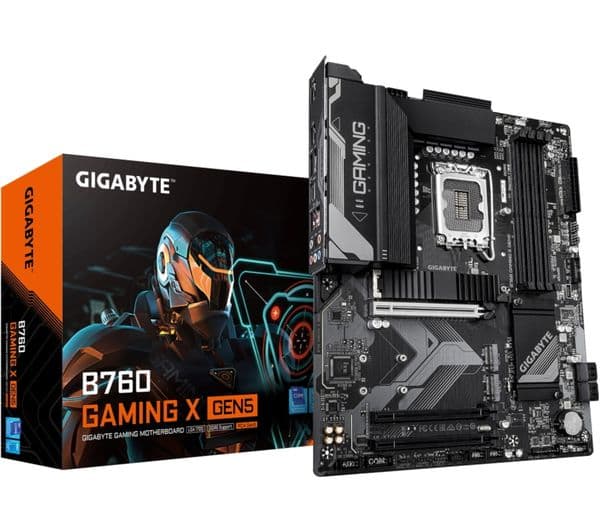

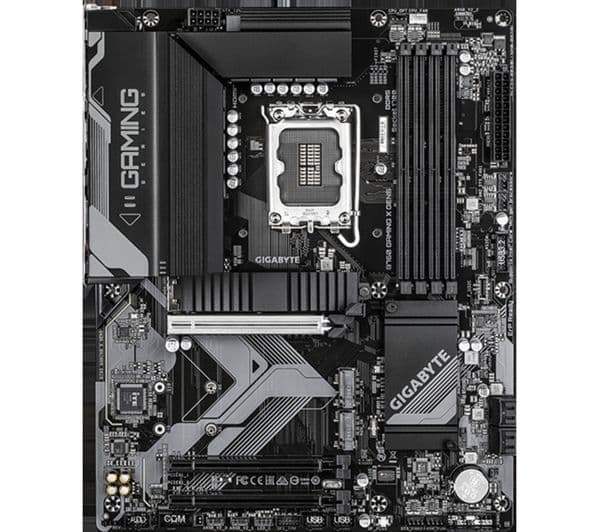

- - Gigabyte B760 GAMING X GEN5 B760 LGA1700 Motherboard- SATA cables x 2- Antenna x 1- M.2 screws- Manual
- General - Colour
- Black
- General - Dimensions
- 70 x 244 x 305 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1.80 kg
- Internal connectivity - BIOS
- - 256 Mbit flash x 1- AMI UEFI BIOS- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Internal connectivity - Buttons
- - Q-Flash Plus- Clear CMOS- Reset
- Internal connectivity - Case
- - Front panel- Front audio - S/PDIF out - TPM header- RGB headers
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1- PCIe 3.0 (x1) x 2
- Internal connectivity - Other internal connections
- - RGB LED header- Addressable LED header- TPM header- Serial port- Parallel port- SPDIF out
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin ATX x 1
- Internal connectivity - Sensors
- - Voltage- Temperature- Fan speed- Water cooling flow rate
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s) - M.2 x 3
- Internal connectivity - USB
- - USB Type-C x 2- USB 3.2 x 1- USB 2.0 x 5
- Overview - Chipset
- Intel® B760 Express
- Overview - Cooling features
- - CPU fan- CPU water pump- System fans- Water pump header
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 128 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 10 or later
- Overview - Processor models supported
- Intel® Core™ 14th/ 13th/ 12th generation / Pentium® Gold / Celeron® processors
- Overview - Socket
- Intel® LGA1700
