- Basic Specifications - Compliant Standards
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3i, IEEE 802.3u
- Basic Specifications - Device Type
- Switch - 10 ports
- Basic Specifications - Dimensions (WxDxH)
- 17.1 cm x 9.8 cm x 2.7 cm
- Basic Specifications - EAN
- 6957939001179
- Basic Specifications - Features
- Auto-negotiation, auto-uplink (auto MDI/MDI-X), flow control, full duplex mode, half duplex mode, 250 m Long Reach, store and forward, MAC address auto-aging, MAC address auto-learning, fanless, CSMA/CD, security slot (Kensington security lock compatible), metal housing, port isolation, port-based priority
- Basic Specifications - Jumbo Frame Support
- 2KB
- Basic Specifications - MAC Address Table Size
- 2000 entries
- Basic Specifications - Manufacturer's Part Number
- MS110P
- Basic Specifications - Model
- Mercusys MS110P V1
- Basic Specifications - Performance
- Switching capacity: 2 Gbps
- Basic Specifications - PoE Budget
- 65 W
- Basic Specifications - Ports
- 10 x 10/100 (8 PoE+)
- Basic Specifications - Power
- AC 100-240 V (50/60 Hz)
- Basic Specifications - Power Over Ethernet (PoE)
- PoE+
- Basic Specifications - Product Description

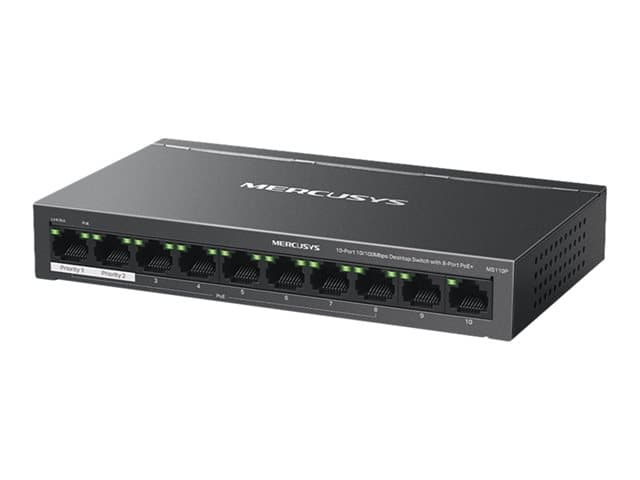

- Mercusys MS110P V1 - switch - 10 ports
- Basic Specifications - Subtype
- Fast Ethernet
- Dimensions & Weight - Depth
- 9.8 cm
- Dimensions & Weight - Height
- 2.7 cm
- Dimensions & Weight - Width
- 17.1 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% RH (non-condensing)
- Environmental Parameters - Humidity Range Storage
- 5 - 95% RH (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Max Storage Temperature
- 70 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -40 °C
- Expansion / Connectivity - Interfaces
- 10 x 100Base-TX RJ-45 8 ports (PoE+) - 30 W
- General - Compliant Standards
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3i, IEEE 802.3u
- General - Device Type
- Switch - 10 ports
- General - Enclosure Type
- Desktop, wall-mountable
- General - Features
- Auto-negotiation, auto-uplink (auto MDI/MDI-X), flow control, full duplex mode, half duplex mode, 250 m Long Reach, store and forward, MAC address auto-aging, MAC address auto-learning, fanless, CSMA/CD, security slot (Kensington security lock compatible), metal housing, port isolation, port-based priority
- General - Jumbo Frame Support
- 2KB
- General - MAC Address Table Size
- 2000 entries
- General - Performance
- Switching capacity: 2 Gbps
- General - PoE Budget
- 65 W
- General - Ports
- 10 x 10/100 (8 PoE+)
- General - Power Over Ethernet (PoE)
- PoE+
- General - Status Indicators
- Power, link/activity, PoE
- General - Subtype
- Fast Ethernet
- Miscellaneous - Compliant Standards
- Plug and Play, RoHS
- Power - Power Device
- External power adapter
- Power - Power Provided
- 53.5 V - 1.31 A
- Power - Voltage Required
- AC 100-240 V (50/60 Hz)
