- Basic Specifications - EAN
- 4711377289764
- Basic Specifications - Manufacturer's Part Number
- 126148

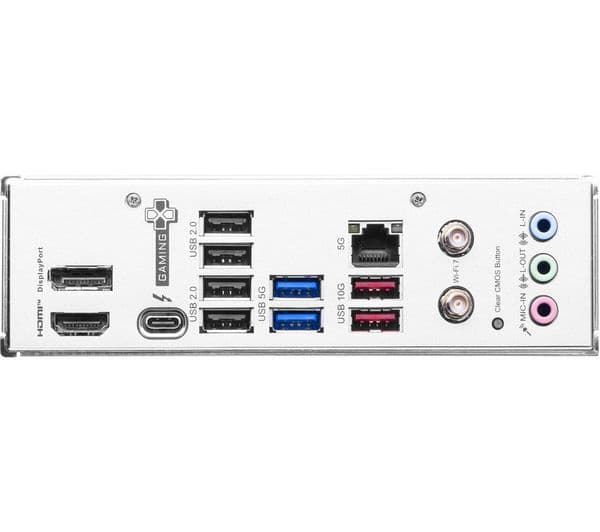

- External connectivity - Audio
- - Realtek® ALC897 Codec- 7.1-Channel High Definition Audio
- External connectivity - LAN
- - Intel® Killer™ Wi-Fi 7- Bluetooth 5.4- 5G Ethernet port x 1
- External connectivity - USB
- - USB Type-A (5Gbps) x 6- USB Type-A (10Gbps) x 2- USB Type-C (10Gbps) x 1- USB 2.0 x 8
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

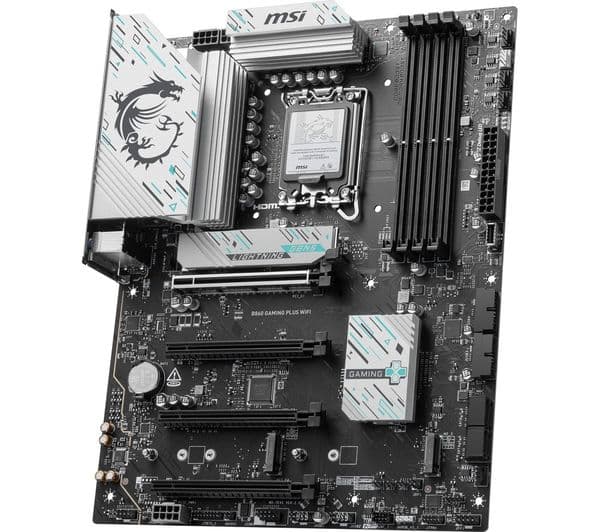

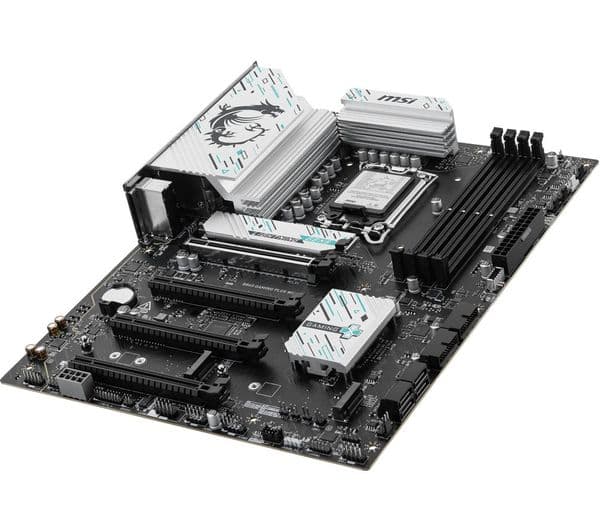

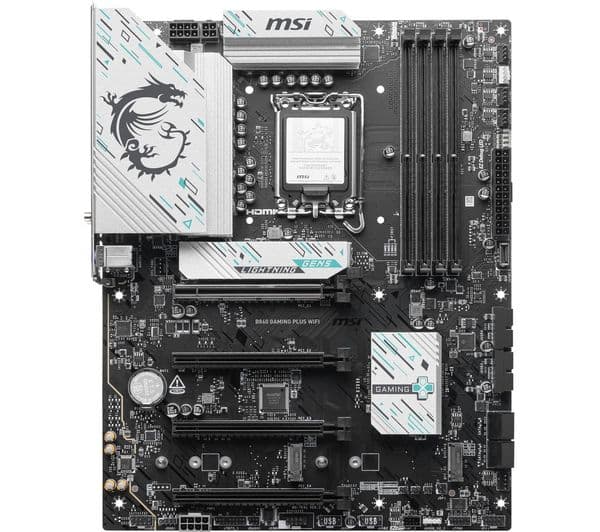

- - MSI B860 GAMING PLUS WIFI LGA1851 Motherboard- SATA cables x 2- 1 to 2 EZ conn-cable (V1)- EZ M.2 clip- EZ WiFi antenna- EZ m.2 clip remover
- General - Colour
- Black
- General - Dimensions
- 304.8 x 243.84 mm (H x W)
- General - Manufacturer’s guarantee
- 3 years
- Internal connectivity - BIOS
- CLICK BIOS X
- Internal connectivity - Buttons
- Clear CMOS Button
- Internal connectivity - Cooling
- - CPU fan x 1- Pump fan x 1- System fan x 4
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16 slot) x 1- PCIe 4.0 (x16 slot) x 1- PCIe 4.0 (x1 slot) x 2
- Internal connectivity - Other internal connections
- - EZ Conn-header x 1- Front panel (JFP) x 2- Chassis intrusion (JCI) x 1- Front audio (JAUD) x 1- Com port (JCOM) x 1- Tuning controller connector (JDASH) x 1- Addressable V2 RGB LED connector x 2- RGB LED connector (JRGB) x 1- TPM pin header (Support TPM 2.0) x 1
- Internal connectivity - Power
- - Thunderbolt4 card connector x 1- Power Connector (ATX_PWR) x 1- Power Connector (CPU_PWR) x 2- Power Connector (PCIE_PWR 8pin) x 1
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s) - M.2 Gen4 x 1 (64 Gb/s)- M.2 Gen5 x 1 (128 Gb/s)- M.2 Gen4 x 1 (32 Gb/s slot)
- Internal connectivity - USB
- - USB 2.0 x 4- USB Type-A (5Gbps) x 4- USB Type-C (10Gbps) x 1
- Overview - Chipset
- Intel® B860
- Overview - Cooling features
- - Fan cooling- Extended PWM heatsink- Frozr AI cooling- M.2 Shield Frozr- Plated VRM heatsink- Chipset heatsink- MOSFET thermal pads
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x UDIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11
- Overview - Processor models supported
- Intel® Core™ Ultra Processors (Series 2)
- Overview - Socket
- Intel® LGA1851
